NVIDIA

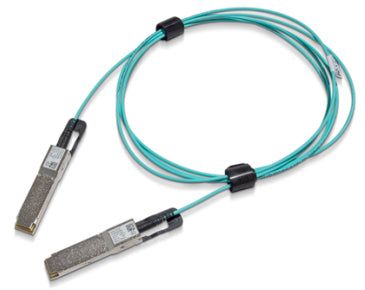

NVIDIA 980-9I44K-00H130 | 200G QSFP56 AOC, IB HDR/200GbE, 850nm MMF, 130m

SKU:980-9I44K-00H130

$5,343.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA MFS1S00-H130V is a 200Gb/s QSFP56 active optical cable for InfiniBand HDR and 200GbE links. It uses 850nm VCSELs over multimode fibre, giving far longer reach than passive copper, which makes it a fit for HPC clusters, cloud infrastructure and links between racks or rows in a data centre.

This SKU is the 130 m length with a QSFP56 connector at both ends. It runs 4 x 50Gb/s PAM4 lanes at up to 200Gb/s and draws a single 3.3V supply from the host port, with a maximum of 5.0 W per end (4.8 W typical with retiming on). Operating case temperature is 0 to 70 C. The cable is 3 mm in diameter with a 30 mm minimum bend radius and an aqua jacket.

It works with 200Gb/s InfiniBand HDR systems such as ConnectX-6 adapters and Quantum switches, and with 200GbE between SN3700 and SN4600 switches. It supports programmable Rx output amplitude, Tx input equalisation and digital diagnostic monitoring.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports IBTA InfiniBand HDR and 200GbE
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalisation
- Selectable retiming per lane for transmitters and receivers
- Digital diagnostic monitoring of Rx/Tx optical power, Tx bias current, supply voltage and case temperature
- Hot-pluggable QSFP56 connectors
- Rate select support for NRZ EDR and PAM4 HDR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP56 (SFF-8665 compliant) both ends
- Data rate: up to 200Gb/s (4 x 50Gb/s PAM4)
- Protocols: IBTA InfiniBand HDR, 200GbE
- Wavelength: 850nm VCSEL
- Fibre type: 4 multimode fibres (MMF) per end
- Cable length: 130 m
- Signalling rate: 53.125 Gb/s PAM4, 25.78125 Gb/s NRZ
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power dissipation per end: 4.8 W typical, 5.0 W max (retiming on)
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Management interface: SFF-8636 compliant I2C
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Cable colour: Aqua
- Laser safety: Class I (IEC 60825-1, IEC 60825-2)
- Regulatory: CB, cTUVus, CE, FCC, ICES, RCM, VCCI, RoHS compliant

FAQs

Q: What power does this cable need?
A: It draws a single 3.3V supply from the host QSFP56 port, with a maximum of 5.0 W per end. It starts in low-power mode (under 1.5 W) until the host enables high-power mode.

Q: What equipment is it designed to work with?
A: It suits 200Gb/s InfiniBand HDR systems such as ConnectX-6 adapters and Quantum switches, and 200GbE links between SN3700 and SN4600 switches.

Q: How does the 130 m version differ from the shorter cables in the range?
A: The electrical and optical specifications are shared across the MFS1S00-HxxxV range. This SKU is the 130 m length, for longer runs between racks or rows.

Q: Does it need a licence?
A: No licence is required. It is a passive-managed active optical cable that plugs directly into QSFP56 ports.
