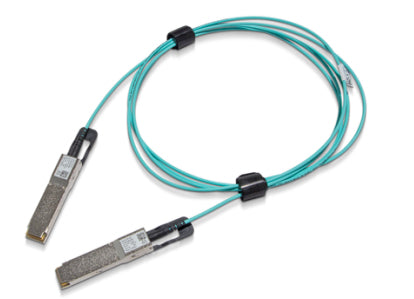

NVIDIA 980-9I44H-00H100 | 200G QSFP56 Active Optical Cable, MMF, 100m
SKU:980-9I44H-00H100
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA MFS1S00-HxxxV series active optical cable links two QSFP56 ports over multi-mode fibre at up to 200Gb/s. It uses VCSEL-based 850nm optics and is built for 200Gb/s InfiniBand HDR and 200GbE links in data centres, including connections between NVIDIA SN3700 and SN4600 switches where the distance is longer than passive copper allows.
This 100m length carries 4 x 50Gb/s PAM4 lanes, with four fibres per end and a signalling rate of 53.125 Gb/s PAM4 (25.78125 Gb/s NRZ). Each end draws a single 3.3V supply from the host port, at 4.8 W typical and 5.0 W maximum with retiming enabled. The cable is 3 mm in diameter with a 30 mm minimum bend radius, and is rated for an operating case temperature of 0 to 70 C.
It fits standard SFF-8665 QSFP56 ports and is managed over an SFF-8636 compliant I2C interface with Digital Diagnostic Monitoring. The cable is hot pluggable and RoHS compliant.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- 4 x 50Gb/s PAM4 modulation across four lanes
- Selectable retiming per lane for transmitters and receivers up to 50Gb/s
- Programmable Rx output amplitude and pre-emphasis
- Single 3.3V power supply drawn from the host port
- Hot pluggable for easy installation and replacement
- Digital Diagnostic Monitoring with SFF-8636 interrupt and status flags (LOS, LOL, Tx Fault)
- Each cable is production tested for out-of-the-box performance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: QSFP56 to QSFP56 active optical cable (AOC)
- Legacy part number: MFS1S00-H100V
- Data rate: up to 200Gb/s (4 x 50Gb/s PAM4)
- Supported protocols: InfiniBand HDR and 200GbE
- Fibre type: multi-mode fibre (MMF), four fibres per end, VCSEL-based
- Wavelength: 850nm
- Cable length: 100m
- Connector: QSFP56, SFF-8665 compliant
- Signalling rate: 53.125 Gb/s (PAM4), 25.78125 Gb/s (NRZ)
- Rate select operating rates: 25.78125 GBd NRZ (EDR), 26.5625 GBd PAM4 (HDR)
- Supply voltage: 3.3 V typical (3.135 V min, 3.465 V max)
- Power dissipation per end (retiming on): 4.8 W typical, 5.0 W maximum
- Management interface: SFF-8636 compliant I2C with Digital Diagnostic Monitoring
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Cable diameter: 3 +/- 0.2 mm
- Minimum bend radius: 30 mm
- Length tolerance (50 m and above): +1000 / -0 mm
- Cable colour: Aqua
- Laser safety: Class I (IEC 60825-1, IEC 60825-2, 21 CFR 1040)
- Safety certifications: CB, cTUVus, CE
- EMC certifications: CE, FCC, ICES, RCM, VCCI
FAQs
Q: Does this cable need a licence or separate power?
A: No licence is involved. The cable draws a single 3.3V supply from the host QSFP56 port, at 4.8 W typical and 5.0 W maximum per end with retiming enabled.
Q: Which ports and protocols does it work with?
A: It fits standard SFF-8665 QSFP56 ports. It is positioned for 200Gb InfiniBand HDR systems and for 200GbE links between NVIDIA SN3700 and SN4600 switches.
Q: What cable length and fibre type is this version?
A: This SKU is the 100m length, using multi-mode fibre with VCSEL-based 850nm optics. Other lengths in the MFS1S00-HxxxV series are separate part numbers.
Q: Why choose an active optical cable over passive copper?
A: An active optical cable reaches up to 100m over multi-mode fibre, well beyond the distance passive copper supports at 200Gb/s.
Q: Can it be installed or replaced while the switch is running?
A: Yes. The QSFP56 ends are hot pluggable, so the cable can be installed or replaced without powering down the host equipment.
