NVIDIA

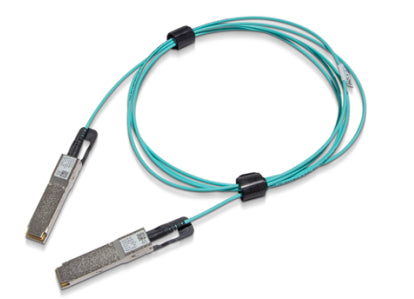

NVIDIA 980-9I447-00H050 | 200G QSFP56 Active Optical Cable, HDR/200GbE, 50m

SKU:980-9I447-00H050

$3,243.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 200G QSFP56 active optical cable links two QSFP56 ports over 50m of multimode fibre, using VCSEL transmitters at 850nm. It carries InfiniBand HDR or 200GbE traffic and suits data-centre, HPC, AI and machine-learning cluster interconnects where the run is longer than passive copper allows.

Each end of the cable provides four 50Gb/s PAM4 optical lanes, for up to 200Gb/s per link. Power comes from a single 3.3V host supply, with 5.0W maximum per end (4.8W typical) with retiming enabled. The cable starts in low-power mode, under 1.5W, until the host enables high-power mode. It is SFF-8636 managed over I2C, with Digital Diagnostic Monitoring for Rx and Tx optical power, Tx bias, supply voltage and case temperature. This 50m length is part of a family that runs from 3m to 100m.

It is designed for 200Gb/s InfiniBand HDR systems such as QM8700 and QM8790 switches and ConnectX-6 adapters, and for 200GbE between SN3700 and SN4600 switches. No licence is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports IBTA InfiniBand HDR and 200GbE on the same cable
- 4x 50Gb/s PAM4 modulation for up to 200Gb/s per link
- Selectable retiming per lane on transmitters and receivers
- Programmable Tx input equalisation, Rx output amplitude and pre-emphasis
- Digital Diagnostic Monitoring with warning and alarm thresholds
- Hot-pluggable for easy installation and replacement
- Single 3.3V power supply with low-power start-up mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cable type: Active optical cable (AOC), QSFP56 to QSFP56
- Length: 50m
- Data rate: Up to 200Gb/s, 4x 50Gb/s PAM4
- Protocols: IBTA InfiniBand HDR and 200GbE
- Connector: SFF-8665 compliant QSFP56 on both ends
- Optics: 850nm VCSEL, multimode fibre (MMF), four per end
- Signalling rate: 53.125 Gb/s (PAM4), 25.78125 Gb/s (NRZ)
- Supply voltage: 3.135 to 3.465V, 3.3V typical
- Power dissipation per end: 4.8W typical, 5.0W maximum
- Low power mode: under 1.5W at start-up
- Management interface: SFF-8636 compliant I2C with Digital Diagnostic Monitoring
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85%
- Cable diameter: 3mm
- Minimum bend radius: 30mm
- Cable colour: Aqua
- Laser safety: Class I (IEC 60825-1, IEC 60825-2)
- Approvals: CB, cTUVus, CE, FCC, ICES, RCM, VCCI, RoHS compliant

FAQs

Q: Does this cable need a licence?
A: No. It is a licence-free cable assembly and needs no software or subscription.

Q: How much power does it draw from the port?
A: It runs from a single 3.3V host supply and draws 5.0W maximum per end (4.8W typical) with retiming enabled. It starts in low-power mode, under 1.5W, until the host enables high-power mode.

Q: What equipment does it work with?
A: It supports 200Gb/s InfiniBand HDR systems such as QM8700 and QM8790 switches and ConnectX-6 adapters, and 200GbE between SN3700 and SN4600 switches. It can also be used in NVIDIA-only Ethernet systems.

Q: What fibre type does it use?
A: It uses 850nm VCSEL transmitters over multimode fibre, with four fibres per end.

Q: What other lengths are in this family?
A: The same MFS1S00-HxxxV family is available in lengths from 3m to 100m. This SKU is the 50m cable.
