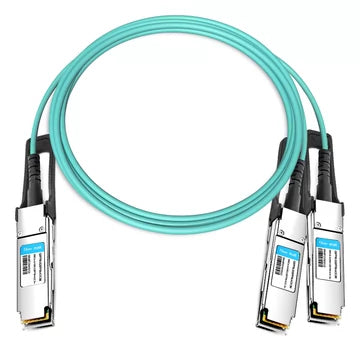

NVIDIA 980-9I445-00H003 | LinkX 200G to 2x100G QSFP56 AOC Splitter Cable, 3m
SKU:980-9I445-00H003
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX MFS1S50-H0xxV is a multi-mode active optical splitter cable that connects one 200Gb/s QSFP56 port to two separate 100Gb/s QSFP56 ports. It suits InfiniBand HDR and HDR100 as well as 200GbE and 100GbE links, such as a switch fanning out to two servers in a data centre or HPC interconnect. This SKU is the 3m length.
The cable uses 4x 50Gb/s PAM4 signalling over VCSEL-based 850nm multi-mode fibre and is SFF-8665 compliant. It is powered from the host port on a single 3.3V supply, drawing 4.5W typical at the 200G end and 3.0W typical at each 100G end. It is hot pluggable, RoHS compliant and rated for an operating case temperature of 0 to 70 C.
It is intended for NVIDIA and Mellanox 200Gb/s HDR InfiniBand and 200GbE QSFP56 ports, for example Quantum HDR switches and ConnectX-6 adapters, with the 200G end on the switch and the 100G ends on two servers. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Splits one 200Gb/s HDR port into 2x100Gb/s HDR100 links
- Programmable Tx input equalisation, Rx output amplitude and pre-emphasis
- SFF-8636 compliant I2C management interface with EEPROM on each QSFP56 end for product and status monitoring
- Hot pluggable and RoHS compliant
- Low-latency multi-mode design with power-efficient connectivity
- Production tested for out-of-the-box performance and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9I445-00H003
- Legacy OPN: MFS1S50-H003V
- Connectors: QSFP56 to 2x QSFP56
- Data rate: 200Gb/s HDR to 2x100Gb/s HDR100; 200GbE to 2x100GbE
- Modulation: 4x 50Gb/s PAM4
- Signalling rate per lane: 53.125 GBd (+/-100 ppm)
- Fibre type: multi-mode (MMF), VCSEL-based, 850nm
- Standard: SFF-8665 compliant, SFF-8636 I2C management interface
- Length: 3m
- Length tolerance (under 5m): +300 / -0 mm
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption, 200Gb/s end: 4.5W typ., 5.0W max
- Power consumption, 100Gb/s end: 3.0W typ., 3.5W max
- Supply noise tolerance (10Hz-10MHz): 66 mVpp
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85%
- Cable diameter: 3 +/- 0.2 mm
- Minimum bend radius: 30 mm
- Hot pluggable: Yes
- Compliance: RoHS
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a cable with no software licence or subscription requirement.
Q: How is the cable powered?
A: It draws power from the host port on a single 3.3V supply. Typical consumption is 4.5W at the 200G end and 3.0W at each 100G end.
Q: Which ports does it connect to?
A: It is intended for NVIDIA and Mellanox 200Gb/s HDR InfiniBand and 200GbE QSFP56 ports, such as Quantum HDR switches and ConnectX-6 adapters. The 200G end goes on the switch and the two 100G ends go to two servers or adapters.
Q: What link speeds does the split provide?
A: One 200Gb/s HDR or 200GbE port is split into two 100Gb/s links, either 2x HDR100 for InfiniBand or 2x100GbE for Ethernet.
Q: How does the 3m version differ from other lengths in this range?
A: The electrical and optical specifications are the same across the range. Only the cable length differs, and this SKU is the 3m version.
