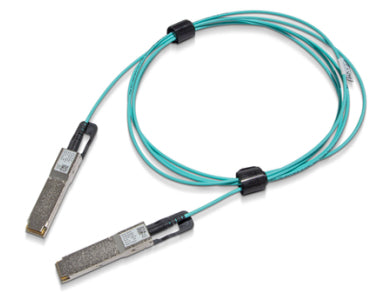

NVIDIA 980-9I440-00H030 | LinkX 200G QSFP56 Active Optical Cable, HDR, 30m
SKU:980-9I440-00H030
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX MFS1S00-HxxxV is a VCSEL-based QSFP56-to-QSFP56 multimode active optical cable for 200Gb/s InfiniBand HDR and 200GbE links. This SKU is the 30 m length, suited to data-centre interconnects between switches and servers or adapters where the reach needed goes beyond passive copper.
The cable carries 200Gb/s over four 50Gb/s PAM4 lanes on 850nm multimode fibre, with a QSFP56 connector at each end. Power draw is 4.8 W typical and 5.0 W maximum per end with retiming on all lanes, from a single 3.3 V supply. The aqua LSZH jacket is 3 mm in diameter with a 30 mm minimum bend radius, and the cable is hot pluggable with SFF-8636 I2C management and per-lane digital diagnostics.
It is designed for 200Gb/s InfiniBand HDR systems and 200GbE links between SN3700 and SN4600 switches, and NVIDIA's validated-cables list also covers ConnectX-6 adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Up to 200Gb/s with 4x 50Gb/s PAM4 modulation
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalisation and Tx/Rx CDR control
- Selectable retiming per lane for transmitters and receivers
- Per-lane diagnostics for Rx/Tx optical power, Tx bias current, supply voltage and case temperature, with warning and alarm thresholds
- Hot pluggable with a single 3.3V power supply
- Much longer reach than passive copper cables
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Legacy OPN: MFS1S00-H030V
- Data rate: up to 200 Gb/s (4 x 50Gb/s PAM4)
- Connector / form factor: QSFP56 both ends, SFF-8665 compliant
- Length: 30 m
- Fibre type: Multi-mode fibre (MMF), four MMF optic transceivers per end
- Signalling rate: 53.125 Gb/s (PAM4); 25.78125 Gb/s (NRZ), +/-100 ppm
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Power dissipation (each end, retiming on all lanes): 4.8 W typ, 5.0 W max
- Supply noise tolerance (10Hz-10MHz): 66 mVpp min
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Length tolerance (5 m to under 50 m): +500 / -0 mm
- Cable colour: Aqua
- Cable jacket: LSZH
- Management interface: SFF-8636 compliant I2C with Digital Diagnostic Monitoring (DDM)
- Laser safety: Class I per IEC 60825-1, IEC 60825-2, 21 CFR 1040 (CDRH)
- Safety certifications: CB, cTUVus, CE
- EMC: CE, FCC, ICES, RCM, VCCI
- RoHS: compliant
FAQs
Q: Does this cable need a licence?
A: No. It is a passive-to-the-host plug-in cable with no licence or subscription required.
Q: How much power does each end draw?
A: Each end draws 4.8 W typical and 5.0 W maximum with retiming on all lanes, from a single 3.3 V supply on the host QSFP56 port. It starts in low-power mode below 1.5 W until the host enables high power.
Q: What equipment is it designed to work with?
A: It is designed for 200Gb/s InfiniBand HDR systems and 200GbE links between SN3700 and SN4600 switches, and NVIDIA's validated-cables list also covers ConnectX-6 adapters.
Q: How does this 30m cable differ from other lengths in the range?
A: The MFS1S00-HxxxV family uses the same QSFP56 multimode design across lengths up to 100 m. This SKU is the 30 m version, so choose it when your rack-to-rack run needs that distance.
Q: Can it carry both InfiniBand and Ethernet?
A: Yes. It supports InfiniBand HDR and 200GbE, using four 50Gb/s PAM4 lanes.
