NVIDIA

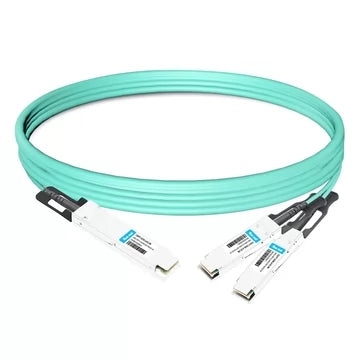

NVIDIA 980-9I41X-00H003 | 200G QSFP56 to 2x100G QSFP56 AOC | IB HDR/100GbE | 850nm | 3m | QSFP56 male to 2x QSFP56 male

SKU:980-9I41X-00H003

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Splitter active optical cable for high-density leaf–spine and HPC breakouts, converting one 200G QSFP56 port into two 100G QSFP56 legs. Protocol-agnostic at the electrical layer, suitable for InfiniBand HDR (upstream) and 2x100GbE/HDR100 on the downlinks. Ideal for short-reach, low-latency, low-power aggregation without separate transceivers.

Features

- 200G to 2x100G breakout for flexible aggregation
- Low-latency, low-power optical link
- Hot-swappable QSFP56 interfaces
- EMI-immune optical interconnect
- No separate transceivers required—true plug-and-play

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this a DAC or an AOC?
A: It is an Active Optical Cable (AOC).

Q: What ports is it compatible with?
A: QSFP56-capable ports. Upstream requires a 200G QSFP56 port; each leg connects to a 100G QSFP56 port supporting 100G operation.

Q: Can it be used for both InfiniBand and Ethernet?
A: Yes. The cable follows the QSFP56 MSA and is protocol-agnostic; use with hosts/switches that support IB HDR/HDR100 or 100GbE as applicable.

Q: Does it provide digital diagnostics (DOM)?
A: Yes, standard QSFP56 diagnostic monitoring via I2C.

Q: What applications is this best for?
A: Leaf–spine breakouts, NIC aggregation, and short-reach HPC or data center fabric connections.

Technical Specifications

- Cable type: Splitter Active Optical Cable (AOC)
- Aggregate speed: 200 Gb/s upstream; 2x 100 Gb/s downstream legs
- Form factor: QSFP56 (1x) to QSFP56 (2x)
- Standards/protocols: QSFP56 MSA; InfiniBand HDR (200G) upstream; Ethernet/IB 100G per leg
- Wavelength: 850 nm (VCSEL)
- Reach: 3 meters
- Connectors: QSFP56 male (host) to 2x QSFP56 male (downlinks)
- Fibre type: Integrated multimode optical fiber
- Hot-swappable: Yes
- Typical use cases: 200G switch to 2x 100G server/NIC or switch ports
- EMI immunity: Optical, not susceptible to EMI/RFI
- Power: Low-power AOC design (host powered)
