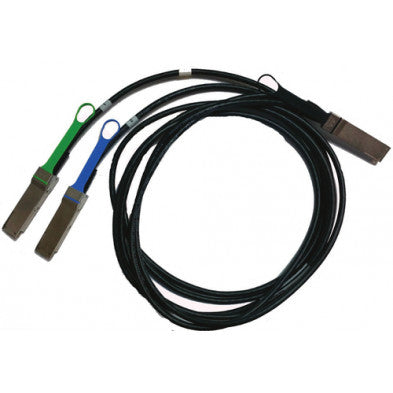

NVIDIA 980-9I39E-00H001 | LinkX 200G to 2x 100G QSFP56 DAC Breakout, 1m, 30AWG

SKU:980-9I39E-00H001

$327.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA LinkX passive copper splitter cable connects one 200Gb/s HDR QSFP56 port to two 100Gb/s HDR100 QSFP56 ports. It suits short-reach InfiniBand HDR and HDR100 links in data centres, HPC and AI clusters, where a single switch port fans out to two server or HCA ports within a rack or between adjacent racks.

The cable is 1 m long and built from 30 AWG copper with 4x 50Gb/s PAM4 modulation. Being passive, it needs no external power and draws just 0.1 W maximum from the host port on a 3.3 V supply. It has an LSZH jacket, a lead-free, halogen-free PCB and is RoHS compliant. Each QSFP56 connector carries an EEPROM that the host can read, and management follows SFF-8636 over I2C.

It connects a 200Gb/s HDR QSFP56 port, such as a Quantum HDR switch or ConnectX-6 HCA, to two 100Gb/s HDR100 QSFP56 ports. HDR100 uses 2x50G PAM4 signalling, so it does not interoperate with 100GbE based on 4x25G NRZ.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IBTA InfiniBand HDR compliant 200Gb/s to 2x 100Gb/s HDR100 splitter
- Passive copper design with no external power requirement
- Hot pluggable QSFP56 connectors
- EEPROM in each connector holds product information readable by the host
- SFF-8636 compliant I2C management interface
- LSZH (Low Smoke Zero Halogen) jacket
- Lead-free, halogen-free PCB, RoHS compliant
- Production-tested for BER better than 1E-15 with InfiniBand HDR systems

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cable type: Passive copper splitter (1:2), QSFP56 to 2x QSFP56
- Data rate: 200Gb/s HDR to 2x 100Gb/s HDR100
- Modulation: 4x 50Gb/s PAM4
- Cable length: 1 m
- Wire gauge: 30 AWG
- Single cable diameter: 5.2 +/- 0.3 mm
- Minimum bend radius: 26 mm single bend, 52 mm assembly or repeated bend
- Supply voltage: 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 Ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Minimum insertion loss up to 1 m: 6 dB at 12.89 GHz
- BER: better than 1E-15 with Mellanox InfiniBand HDR systems
- Jacket: LSZH
- Compliance: IBTA InfiniBand HDR, SFF-8665, SFF-8636, RoHS
- Legacy part number: MCP7H50-H001R30

FAQs

Q: Does this cable need external power?
A: No. It is a passive cable and draws a maximum of 0.1 W from the host port on a single 3.3 V supply.

Q: What ports can it connect?
A: One 200Gb/s HDR QSFP56 port, such as a Quantum HDR switch or ConnectX-6 HCA, connects to two 100Gb/s HDR100 QSFP56 ports.

Q: Can I use it for 100GbE links?
A: No. HDR100 uses 2x50G PAM4 signalling, which does not interoperate with 100GbE based on 4x25G NRZ.

Q: What is the reach of this cable?
A: This cable is 1 m long, intended for short in-rack or adjacent-rack InfiniBand HDR connections.

Q: Which NVIDIA adapters list this cable as validated?
A: NVIDIA lists 980-9I39E-00H001 in its validated cables tables for ConnectX-6 Dx, ConnectX-8 and related adapters.
