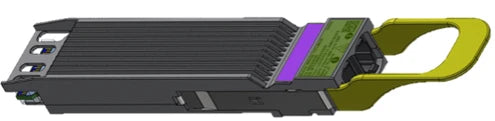

NVIDIA 980-9I30L-00N000 | LinkX 800G Twin-Port OSFP 2xFR4 Transceiver, 2km SMF
SKU:980-9I30L-00N000
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX twin-port OSFP transceiver delivers 800Gb/s as two independent 400Gb/s 2xFR4 links over single-mode fibre. It is built for switch-to-switch links up to 2 km in InfiniBand NDR (Quantum-2) and 400/800GbE (Spectrum-4) data-centre and AI/HPC fabrics, including 800G-to-2x400G breakout links to separate switches.
The module uses 8 channels of 100G-PAM4 modulation on the 1310nm CWDM4 wavelength grid, with 8 EML lasers and two duplex LC connectors. Maximum reach is 2,000 m. The finned-top (integrated heat sink) design is intended for air-cooled switches, and the host switch automatically sets InfiniBand or Ethernet operation. Power dissipation is 17 W maximum from a single 3.3V supply.
It is intended for Quantum-2 QM9700 and Spectrum-4 SN5600 air-cooled switches with twin-port OSFP cages, and can interoperate with 400G FR4 QSFP-DD or QSFP112 optics at the far end using separate fibres. The legacy part number is MMS4X50-NM.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Twin-port design has two internal transceiver engines, giving 64 x 400Gb/s ports in a 32-cage Quantum-2 switch
- Firmware supports both InfiniBand and Ethernet, automatically enabled by the host switch protocol
- Switch-to-switch link at 800Gb/s using only 4 fibres, or one 800G port linked to two switches at 400G using separate fibres
- FR4 CWDM4 multiplexing combines four wavelengths on a single fibre to save fibre cost on long runs
- A bright green marking on the transceiver body indicates 2 km maximum reach
- Hot pluggable with digital diagnostics monitoring of Rx/Tx optical power, Tx bias, supply voltage and case temperature
- Tested for end-to-end operation in NVIDIA InfiniBand systems
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 800Gb/s (2 x 400Gb/s)
- Form factor: Twin-port OSFP, finned top (IHS)
- Modulation: 8 x 100G-PAM4 (electrical and optical)
- Optical interface: 2 x duplex LC, 4 channels per port (2xFR4)
- Fibre type: Single-mode fibre
- Wavelength grid: CWDM4 1310nm (lanes 1271 / 1291 / 1311 / 1331 nm nominal)
- Laser: 8x EML lasers
- Maximum reach: 2,000 m
- Maximum power dissipation: 17 W (16 W typical)
- Supply voltage: 3.3 V (3.135 min to 3.465 max)
- Instantaneous peak current at hot plug: 6800 mA max
- Sustained peak current at hot plug: 5670 mA max
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 5 to 65 %
- Average launch power per lane: -3.2 to 4.4 dBm
- TDECQ per lane: 3.4 dB max
- Extinction ratio per lane: 3.5 dB min
- Side mode suppression ratio: 30 dB min
- Average receive power per lane: -7.2 to 4.4 dBm
- Receiver sensitivity (OMAouter) per lane: -4.6 dBm max
- Stressed receiver sensitivity (OMAouter) per lane: -2.6 dBm max
- Receiver damage threshold: 4.5 dBm min
- Compliance: Class 1 laser, RoHS, CMIS 5.0, OSFP MSA
FAQs
Q: Which switches does this transceiver work with?
A: It is for NVIDIA Quantum-2 (QM9700) InfiniBand NDR and Spectrum-4 (SN5600) Ethernet air-cooled switches with twin-port OSFP cages. It is the finned-top (IHS) version only.
Q: Does it support both InfiniBand and Ethernet?
A: Yes. The firmware supports InfiniBand NDR and 400GbE Ethernet, and the host switch protocol is detected automatically.
Q: Can it link to a different switch type at 400G?
A: Yes. It can interoperate with 400G FR4 QSFP-DD or QSFP112 optics at the far end using separate fibres, for example on SN4700 Spectrum-3 QSFP-DD switches.
Q: How much power does it draw?
A: It draws from a single 3.3V supply through the host switch OSFP cage, with a maximum dissipation of 17 W and 16 W typical.
Q: What fibre and connectors does it use?
A: It uses single-mode fibre with two duplex LC connectors at 1310nm. When linking two transceivers directly, the LC fibres must be crossed over.
