NVIDIA 980-9I30J-F4NM00 | LinkX 800G OSFP Transceiver, DR8, MPO-16, 500m, Finned
SKU:980-9I30J-F4NM00
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

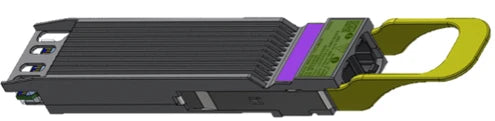

This NVIDIA LinkX twin-port OSFP transceiver delivers 800Gb/s Ethernet over single-mode fibre using the DR8 standard. It is built for linking two air-cooled NVIDIA Spectrum-4 Ethernet or Quantum-2 InfiniBand switches together across AI and data-centre fabrics, with links up to 500 m.
It uses 8 lanes of 100G-PAM4 signalling at 53.125 GBd per lane, with a 1310nm EML laser and a single MPO-16/APC optical connector carrying 8 transmit and 8 receive fibres. The finned-top shell provides the extra cooling these switches require. Maximum power dissipation is 17 W from a 3.3 V supply, with a 1.5 W low-power sleep mode, and the operating case temperature range is 0 to 70 C. The twin-port design uses two internal transceiver engines, which allows 64 x 800Gb/s ports on a 64-cage Spectrum-4 switch.
The module is designed for switches with finned-top OSFP cages and reverse airflow only. It links to another 800Gb/s DR8 transceiver over MPO-16/APC single-mode fibre. APC and UPC connectors are not interchangeable, and the module has alignment pins, so the cable connector must have holes.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Twin-port design with two internal transceiver engines, enabling 64 x 800Gb/s ports on a 64-cage Spectrum-4 switch
- Finned-top OSFP shell provides the extra cooling Spectrum-4 switches require
- Low-power sleep mode for reduced idle consumption
- Hot pluggable, OSFP MSA compliant and supports CMIS functions
- Digital Diagnostic Monitoring of per-lane Tx/Rx optical power, Tx bias current, supply voltage and case temperature, with warning and alarm thresholds
- Host-side and line-side loopback, PRBS generator and checker, and Tx/Rx LOS and LOL indications
- Adaptive Tx input equalisation and programmable Rx output amplitude, pre-cursor and post-cursor
- Firmware upgrade via CDB commands
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MMS4X00-NM16
- Form factor: Twin-port OSFP, finned top (OSFP MSA Rev 1.12 compliant)
- Data rate: 800 Gb/s (DR8, 8 x 100G-PAM4)
- Signalling rate per lane: 53.125 GBd (PAM4)
- Optical connector: Single MPO-16/APC (8 Tx + 8 Rx fibres)
- Fibre type: Single-mode (SMF), 8 fibres
- Maximum reach: 500 m
- Tx wavelength range: 1304.5 to 1317.5 nm (1311 nm typical)
- Tx average launch power per lane: -2.9 to 4.0 dBm
- Tx OMAouter per lane: -3.0 to 4.2 dBm
- TDECQ per lane: 3.4 dB max
- Tx extinction ratio: 3.5 dB min
- SMSR: 30 dB min
- Rx average receive power per lane: -5.9 to 4.0 dBm
- Rx sensitivity (OMAouter) per lane: -4.4 dBm max
- Stressed Rx sensitivity (OMAouter): -1.9 dBm max
- Rx damage threshold: 5 dBm
- Supply voltage: 3.3 V (3.135 to 3.465 V)
- Maximum power dissipation: 17 W
- Low-power sleep mode: 1.5 W
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 15 to 85 %
- Management interface: CMIS 4.0, 2-wire serial (I2C), DDM
- Laser safety: Class 1 (FDA/CDRH, IEC 60825-1)
- Electrical safety: IEC 62368-1:2018, UL/CSA
- Compliance: RoHS, hot pluggable
- Airflow: Reverse airflow switches only
FAQs
Q: Which switches is this transceiver designed for?
A: It is designed for air-cooled NVIDIA Spectrum-4 Ethernet and Quantum-2 InfiniBand switches with finned-top OSFP cages. It must be used with reverse airflow switches only.
Q: What fibre and connector does it use?
A: It uses single-mode fibre with a single MPO-16/APC connector carrying 8 transmit and 8 receive fibres. APC connectors are not compatible with UPC connectors.
Q: What is the maximum link distance?
A: It reaches up to 500 m. This figure assumes the link includes two optical patch panels.
Q: Do I need a specific cable connector?
A: Yes. The transceiver has alignment pins, so the MPO-16/APC cable connector must have alignment holes.
Q: How much power does it draw?
A: It runs from a single 3.3 V supply supplied by the host switch cage. Maximum power dissipation is 17 W, with a 1.5 W low-power sleep mode.
Q: What does it link to at the far end?
A: It links to another 800Gb/s DR8 transceiver over MPO-16/APC single-mode fibre, typically to connect two switches together.
