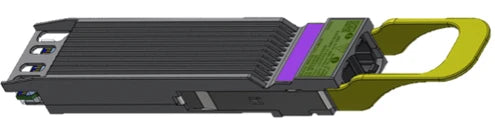

NVIDIA 980-9I30I-00NM00 | LinkX 800G Twin-Port OSFP Transceiver, Flat Top, 100m SMF
SKU:980-9I30I-00NM00
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX twin-port OSFP transceiver delivers 800Gb/s in a single module, split into two independent 400Gb/s 2xDR4 links. It supports InfiniBand NDR and 400GbE, and is built for AI and HPC cluster fabrics that need high-density, high-bandwidth connections between switches and hosts.
Each module uses 100G-PAM4 signalling over 1310nm single-mode fibre, with eight channels carried on two MPO-12/APC connectors. Maximum reach is 100m, assuming two optical patch panels in the link. This SKU is the flat-top (RHS) variant, intended for DGX H100 and liquid-cooled systems. Power draw is a maximum of 17W from a single 3.3V supply, with a 1.5W low-power sleep mode and a case temperature range of 0 to 70 C.
It is designed for NVIDIA Quantum-2 NDR InfiniBand and Spectrum-4 800G switches with twin-port OSFP cages, as well as ConnectX-7, BlueField-3 and DGX H100 systems. Use MPO-12/APC single-mode cables, either straight for 400Gb/s links or 1:2 splitter for 200Gb/s links. The finned-top variant, 980-9I30H-00NM00, is the choice for air-cooled switches.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Two independent 400Gb/s 2xDR4 links in one twin-port OSFP module
- Supports two straight 400Gb/s fibre cables, or two 1:2 splitter fibre cables for 200Gb/s links
- Flat-top OSFP housing for DGX H100 and liquid-cooled systems
- 1.5W low-power sleep mode to reduce idle consumption
- Hot pluggable, with firmware upgrade support via CDB commands
- OSFP MSA and CMIS 4.0 compliant, RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Twin-port OSFP, flat top (RHS)
- Aggregate data rate: 800Gb/s (2 x 400Gb/s)
- Protocols: InfiniBand NDR and Ethernet (400GbE per port)
- Optical interface: 2 x DR4 (2xDR4), parallel single-mode, 8 channels
- Modulation: 100G-PAM4 (8 electrical channels, 2 x 4 optical channels)
- Wavelength: 1310nm
- Fibre type: Single-mode (8 fibres)
- Optical connector: 2 x MPO-12/APC
- Maximum reach: 100m (assumes two optical patch panels)
- Maximum power consumption: 17W
- Low-power sleep mode: 1.5W
- Power supply: Single 3.3V
- Case temperature range: 0 to 70 C
- Laser safety: Class 1
- Hot pluggable: Yes
- Compliance: OSFP MSA, CMIS 4.0, RoHS
- Firmware upgrade: Supported via CDB commands
FAQs
Q: Which systems is this flat-top transceiver designed for?
A: The flat-top (RHS) version is intended for DGX H100 and liquid-cooled systems. It also works with Quantum-2 NDR InfiniBand and Spectrum-4 800G switches that have twin-port OSFP cages, ConnectX-7 and BlueField-3 hosts. Air-cooled switches normally use the finned-top variant, 980-9I30H-00NM00.
Q: What fibre cable does it need?
A: It uses 1310nm single-mode fibre with MPO-12/APC connectors. Use two straight cables for 400Gb/s links, or two 1:2 splitter cables for 200Gb/s links. Both cables should be the same type and of approximately equal length.
Q: What is the maximum link distance?
A: Up to 100m over single-mode fibre, assuming two optical patch panels in the link.
Q: How much power does it draw?
A: It runs from a single 3.3V supply and draws a maximum of 17W, dropping to 1.5W in low-power sleep mode.
Q: Does it need a licence or subscription?
A: No. It is a passive optical module and works without any licence or subscription.
