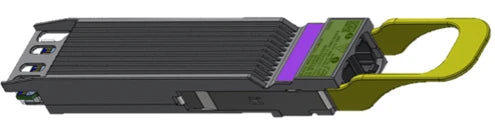

NVIDIA 980-9I30H-F4NM00 | 800G Twin-Port OSFP 2xDR4 Transceiver, SMF, 100m, Finned

SKU:980-9I30H-F4NM00

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800G twin-port OSFP transceiver is built for Ethernet switch-to-switch links in data centre fabrics. It is a finned-top module for air-cooled NVIDIA Spectrum-4 switches, and it is used in NVIDIA's DGX SuperPOD reference architecture for spine-to-SN2201 links.

The module delivers 800Gb/s as two independent 400Gb/s DR4 ports over parallel single-mode fibre, using 8 x 100G-PAM4 electrical lanes and a 1310nm EML laser. Each port has its own MPO-12/APC connector. The rated reach is 100m with two optical patch panels in the link, with a maximum fibre reach of 500m. Power dissipation is 17 W maximum and stays at 17 W in all configurations. Because two transceiver engines sit in one housing, a 64-cage Spectrum-4 switch can present 128 x 400Gb/s ports.

It supports two straight 400Gb/s links, or two 1:2 splitter fibre cables for 200Gb/s connections. It is hot pluggable, CMIS 4.0 and OSFP MSA compliant, with Class 1 laser safety. Finned-top OSFP cages are required, and NVIDIA recommends its own crossover fibre cables for these links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 800G 2xDR4 single-mode transceiver with two internal transceiver engines, enabling 128 x 400Gb/s ports in a 64-cage Spectrum-4 switch
- Supports two straight 400Gb/s links or two 1:2 splitter fibre cables for 200Gb/s
- Finned-top OSFP provides extra cooling for air-cooled switches
- Twin-port single-mode design stays at 17 W in all configurations
- Hot pluggable, CMIS 4.0 and OSFP MSA compliant, Class 1 laser safety
- Tested for NVIDIA end-to-end Ethernet systems

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Twin-port OSFP, finned top
- Data rate: 800Gb/s (2 x 400Gb/s)
- Protocol: Ethernet
- Optical interface: 2xDR4, parallel single-mode, 8-channel
- Electrical modulation: 8 channels of 100G-PAM4
- Optical modulation: two ports of 4-channel 100G-PAM4
- Connector: Two MPO-12/APC
- Laser: 1310nm EML
- Maximum reach: 500m (100m assuming two optical patch panels in the link)
- Maximum power dissipation: 17 W (typical 16 W)
- Maximum power dissipation, low power mode: 1.5 W
- Supply voltage: 3.3 V single supply (3.135 to 3.465 V)
- Instantaneous peak current at hot plug: 6800 mA max
- Sustained peak current at hot plug: 5670 mA max
- Signalling rate per lane: 53.125 GBd
- Two-wire serial interface clock rate: 100 to 1000 kHz
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Laser safety: Class 1
- Management interface: CMIS 4.0 compliant
- Compliance: OSFP MSA, RoHS
- Hot pluggable: Yes

FAQs

Q: Which switches is this transceiver designed for?
A: It is used in NVIDIA Spectrum-4 air-cooled Ethernet switches, which have finned-top OSFP cages. A flat-top cage is not the intended fit for this finned-top module.

Q: What reach can I expect on single-mode fibre?
A: The module is rated for 100m with two optical patch panels in the link, and the maximum fibre reach is 500m.

Q: Can it run as two separate 400G links?
A: Yes. It provides two independent 400Gb/s DR4 ports, each on its own MPO-12/APC connector. It can also be used with two 1:2 splitter fibre cables for 200Gb/s links.

Q: How much power does it draw?
A: It runs from a single 3.3 V supply and dissipates 17 W maximum (16 W typical), dropping to 1.5 W maximum in low power mode.

Q: What fibre cabling does it need?
A: It uses parallel single-mode fibre with MPO-12/APC connectors. NVIDIA recommends its own crossover fibre cables for these links.
