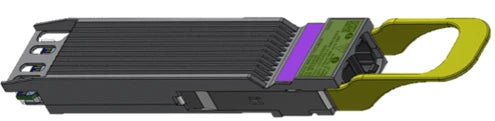

NVIDIA 980-9I30H-00NM00 | LinkX 800G Twin-Port OSFP Transceiver, 2xNDR, SMF, 100m, Finned
SKU:980-9I30H-00NM00
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This LinkX 800G twin-port OSFP transceiver carries two independent 400Gb/s links over single-mode fibre, running either NDR InfiniBand or 400GbE. It is built for AI and HPC data-centre fabrics, where it connects switch to switch at 800Gb/s, or one switch to two switches at 400Gb/s, over distances up to 100 m.
The module uses a 2xDR4 optical interface at 1310nm with two MPO-12/APC connectors and 8 x 100G-PAM4 electrical lanes. Maximum power dissipation is 17 W, with a 1.5 W low-power sleep mode, and case temperature is rated from 0 to +70 C. This is the finned-top variant for air-cooled switches, which is what separates it from the flat-top sibling and the 500m MMS4X00-NM. The 100 m reach assumes two optical patch panels in the link.
It is designed for NVIDIA Quantum-2 NDR InfiniBand and Spectrum-4 Ethernet air-cooled switches. Through 1:2 splitter fibre cables it can link to 400G ConnectX-7 and BlueField-3 adapters, or to four 200G endpoints, using single-mode MPO-12/APC fibre.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 800G 2xDR4 single-mode transceiver
- Supports two straight 400Gb/s links or two 1:2 splitter fibre cables for 200Gb/s
- Finned-top OSFP for air-cooled Quantum-2 and Spectrum-4 switches
- Twin-port design with two internal transceiver engines
- 1:2 splitter use activates only 2 channels on the 400G end and lowers its power from 9 W to 6.5 W
- 1.5 W low-power sleep mode
- Hot pluggable and RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: 980-9I30H-00NM00 (model MMS4X00-NS)
- Form factor: Twin-port OSFP, finned top
- Data rate: 800Gb/s (2 x 400Gb/s)
- Protocol: InfiniBand NDR and 400GbE
- Optical interface: 2xDR4 / DR8, parallel single-mode, 8-channel
- Electrical modulation: 8 x 100G-PAM4 (8 x 106.25Gb/s)
- Optical modulation: two ports of 4 x 100G-PAM4
- Wavelength: 1310nm (typical 1311 nm)
- Receiver: PIN
- Connector: Two MPO-12/APC
- Media: Single-mode fibre (8 fibres)
- Maximum reach: 100 m (assumes two optical patch panels in the link)
- Maximum power dissipation: 17 W (typical 16 W)
- Low-power sleep mode: 1.5 W max
- Power supply: Single 3.3V
- Signalling rate per lane: 53.125 GBd
- Case temperature range: 0 to +70 C
- Management interface: CMIS 4.0, two-wire serial
- Compliance: OSFP MSA, CMIS 4.0, RoHS, Class 1 laser safety
- Hot pluggable: Yes
FAQs
Q: How does this differ from the flat-top version?
A: This is the finned-top variant for air-cooled switches such as Quantum-2 and Spectrum-4. The flat-top version, 980-9I30I-00NM00, is for liquid-cooled systems and DGX H100 platforms.
Q: What fibre and connectors does it need?
A: It uses single-mode fibre with two MPO-12/APC connectors. The 100 m reach assumes two optical patch panels in the link.
Q: Can it connect to 400G or 200G devices?
A: Yes. With 1:2 splitter fibre cables it links to 400G ConnectX-7 and BlueField-3 devices, or to four 200G endpoints. On the 400G end of a splitter link, only 2 channels are activated and power drops from 9 W to 6.5 W.
Q: What is the power draw?
A: Maximum power dissipation is 17 W, typically 16 W, from a single 3.3V supply. In low-power sleep mode it drops to 1.5 W maximum.
Q: Does it support InfiniBand and Ethernet?
A: Yes. It supports NDR InfiniBand and 400GbE, as two independent 400Gb/s links per module.
