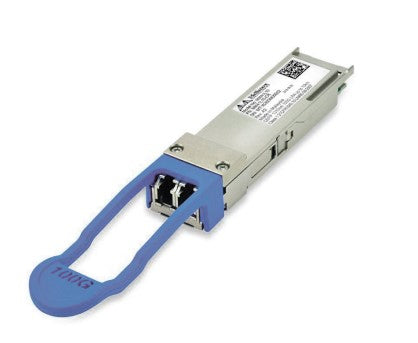

NVIDIA 980-9I17P-00CR00 | LinkX 100G QSFP28 LR4 Transceiver, SMF, 10km, LC
SKU:980-9I17P-00CR00
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX 100GBASE-LR4 QSFP28 transceiver is a 4-channel pluggable optical module for 100 Gigabit Ethernet links of up to 10 km over duplex single-mode fibre. It suits data-centre and campus interconnects, 40GbE LR4 links and NVIDIA InfiniBand EDR deployments.
The module follows IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4, carrying four 25.78125 Gb/s lanes on 1310 nm LAN-WDM wavelengths from DFB-based lasers. It uses a duplex LC/UPC connector, runs from a single 3.3 V supply and is rated QSFP28 Power Class 4 at 3.5 W maximum. The operating case temperature range is 0 to 70 C, and digital diagnostics report temperature, supply voltage and optical power over the I2C interface.
It fits QSFP28 ports on 100GbE switches and NICs and needs a two-fibre single-mode cable terminated in duplex LC/UPC connectors. Selectable retiming allows use in 40GbE applications, and the memory map follows SFF-8636.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot pluggable QSFP28 MSA form factor
- Compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4
- Reach of up to 10 km on single-mode fibre
- Selectable retiming for use in both 40GbE and 100GbE applications
- Digital diagnostic monitoring of temperature, supply voltage and optical power via I2C
- Qualified for NVIDIA InfiniBand EDR end-to-end systems
- Single +3.3 V supply, RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MMA1L10-CR
- Form factor: QSFP28 (MSA), hot pluggable
- Standards: IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm CAUI-4, QSFP28 MSA, SFF-8636
- Applications: 100GBASE-LR4, 40GBASE-LR4 (selectable retiming), NVIDIA InfiniBand EDR
- Data rate: 4 x 25.78125 Gb/s lanes
- Wavelength: 1310 nm LAN-WDM, 4 lanes (1294.53 to 1310.19 nm)
- Maximum link distance: 10 km on G.652 single-mode fibre
- Connector: Duplex LC/UPC
- Transmitter: 4 x DFB-based LAN-WDM lasers
- Average launch power per lane: -4.3 to 4.5 dBm
- Average receive power per lane: -10.6 to 4.5 dBm
- Receiver sensitivity (OMA) per lane: -8.6 dBm max
- Supply voltage: 3.135 to 3.465 V (+3.3 V nominal)
- Supply current: 1.12 A max
- Power consumption: 3.5 W max (QSFP28 Power Class 4)
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 15 to 85 %
- Laser safety: Class I per IEC 60825-1
- Regulatory: FDA/CDRH, TUV, UL/CSA, ACMA, FCC Class A, RoHS compliant
FAQs
Q: What fibre and connector does this transceiver need?
A: It needs a two-fibre G.652 single-mode cable terminated in duplex LC/UPC connectors. The maximum reach is 10 km.
Q: Can it be used in 40GbE ports?
A: Yes. Selectable retiming lets the module operate in 40GBASE-LR4 applications as well as 100GBASE-LR4.
Q: What power does the module draw?
A: It runs from a single 3.3 V supply and draws 3.5 W maximum, QSFP28 Power Class 4. It starts in low-power mode until the host enables high-power operation.
Q: Does it work with InfiniBand?
A: Yes. It is qualified for NVIDIA InfiniBand EDR end-to-end systems as well as 100GbE Ethernet.
Q: Does it support digital diagnostics?
A: Yes. Temperature, supply voltage and optical power can be read over the I2C interface, and the memory map follows SFF-8636.
