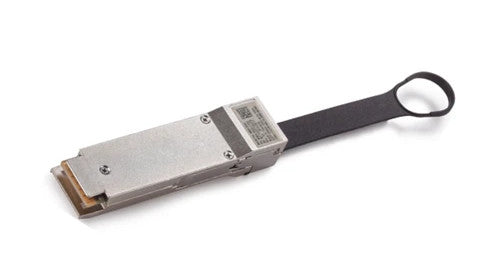

NVIDIA 980-9I17L-00E000 | LinkX 100G QSFP28 SR4 Transceiver, InfiniBand EDR, MPO-12
SKU:980-9I17L-00E000
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX 100G QSFP28 SR4 transceiver is a hot-pluggable optical module for 100Gb/s InfiniBand EDR links. It is also compliant with IEEE 802.3 100GBASE-SR4, and suits short-reach multimode fibre runs in data centre and HPC environments.
The module carries four 25Gb/s NRZ channels, with signalling up to 25.78125 GBd per lane, at a nominal wavelength of 850nm. It uses an MPO-12 optical connector over multimode fibre and reaches 100m on OM4 or 70m on OM3. It runs from a single 3.3V supply, is QSFP28 Power Class 3 and carries a Class 1 laser safety rating. An I2C management interface provides module control, and both the Tx input equalizer and Rx output amplitude and emphasis are programmable, with selectable retiming.
It is designed for NVIDIA and Mellanox InfiniBand EDR systems with QSFP28 ports, such as Switch-IB 2 switches and ConnectX-5 adapters. It also supports breakout to 4 x 25G-SR over MPO-12 multimode cabling.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 100Gb/s per module for InfiniBand EDR links
- Selectable retiming on Tx and Rx
- Programmable Tx input equalizer and Rx output amplitude and emphasis
- Single 3.3V supply with hot-pluggable operation
- Class 1 laser safety
- I2C management interface
- Supports breakout to 4 x 25G-SR
- RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP28
- Standards compliance: SFF-8665 (QSFP28), IEEE 802.3 100GBASE-SR4
- Data rate: up to 100Gb/s
- Channels: 4 optical channels in each direction
- Signalling rate per lane: up to 25.78125 GBd
- Wavelength: 850nm nominal
- Reach on OM4: 100m
- Reach on OM3: 70m
- Fibre type: multimode
- Optical connector: MPO-12 (8 fibres used)
- Power supply: 3.3V single supply
- Power class: QSFP28 Power Class 3
- Laser safety: Class 1
- Management interface: I2C
- Tx input equalizer: programmable
- Rx output amplitude and emphasis: programmable
- Retiming: selectable
- Hot pluggable: Yes
- RoHS: compliant
FAQs
Q: What fibre and connector does this transceiver use?
A: It uses parallel multimode fibre with an MPO-12 connector. Eight of the twelve fibres are used, four in each direction.
Q: How far can it reach?
A: It reaches 100m on OM4 multimode fibre and 70m on OM3 at 100Gb/s.
Q: Which systems is it designed for?
A: It is designed for NVIDIA and Mellanox InfiniBand EDR systems with QSFP28 ports, such as Switch-IB 2 switches and ConnectX-5 adapters.
Q: Can it be used for breakout to 25G links?
A: Yes. It supports breakout to 4 x 25G-SR using MPO-12 multimode cabling.
Q: What power does it need?
A: It runs from a single 3.3V supply and is QSFP28 Power Class 3.
