NVIDIA 980-9I16Y-00W000 | 400G QSFP-DD DR4 Transceiver, 1310nm, 500m SMF, MPO-12/APC
SKU:980-9I16Y-00W000
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

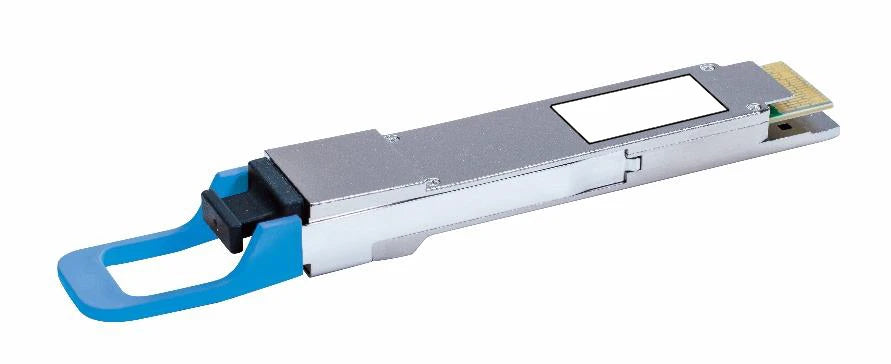

This NVIDIA LinkX 400GbE QSFP-DD optical transceiver is a 400GBASE-DR4 module for single-mode parallel fibre links of up to 500 m. It suits 400GbE Ethernet systems and campus networks, including 400G to 4x100G breakout links between NVIDIA switches.
The module converts 8 x 50G PAM4 electrical lanes (400GAUI-8) into 4 x 100G PAM4 optical lanes at a nominal wavelength of 1310 nm. It uses an MPO-12/APC optical connector, so it needs single-mode MPO-12/APC cabling and a host with QSFP-DD ports. Maximum power consumption is 12 W from a 3.3 V supply, and the operating case temperature range is 0 to 70 C.
The module complies with IEEE 802.3bs-2017, QSFP-DD MSA HW Rev 5.0 and CMIS 4.0, and provides digital diagnostic monitoring over a 2-wire serial interface. It is documented for use with NVIDIA Spectrum-3 SN4700 switches, including MMS1V00-WM to MMS1V00-WM links and breakout to 4x MMS1V70-CM.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Digital diagnostic monitoring over a 2-wire serial interface
- Compliant with IEEE 802.3bs-2017 400GBASE-DR4 and 400GAUI-8
- QSFP-DD MSA HW Rev 5.0 and CMIS 4.0 compliant
- MPO-12/APC connector for parallel single-mode fibre
- Supports 400G to 4x100G breakout links
- RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Legacy OPN: MMS1V00-WM
- Data rate: 400GbE
- Optical interface: 400GBASE-DR4 (IEEE 802.3bs-2017)
- Electrical interface: 400GAUI-8
- Form factor: QSFP-DD
- Optical connector: MPO-12/APC
- Reach: up to 500 m on single-mode fibre
- Nominal wavelength: 1310 nm
- Electrical lanes: 8 x 50 Gb/s PAM4
- Optical lanes: 4 x 100 Gb/s PAM4
- Maximum power consumption: 12 W
- Power supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Hot-plug peak current: 4800 mA max
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 5 to 95 %
- Management interface: 2-wire serial with digital diagnostic monitoring
- MSA compliance: QSFP-DD MSA HW Rev 5.0, Type 2 housing with MPO-12 connector
- Management specification: QSFP-DD CMIS Rev 4.0
- RoHS: compliant with EU Directive 2011/65/EU
FAQs
Q: What fibre and connector does this transceiver use?
A: It uses parallel single-mode fibre terminated with an MPO-12/APC connector, with a reach of up to 500 m at a nominal 1310 nm.
Q: What host ports does it require?
A: It needs a host with QSFP-DD ports. It draws a maximum of 12 W from a 3.3 V supply provided by the host port.
Q: Does it need a licence?
A: No licence is associated with this transceiver. It is a passive plug-in optical module powered by the host QSFP-DD port.
Q: Which devices is it documented to work with?
A: It is documented for NVIDIA Spectrum-3 SN4700 switches, including MMS1V00-WM to MMS1V00-WM links and breakout to 4x MMS1V70-CM on MSN2700.
Q: What does DR4 mean?
A: DR4 is the 400GBASE-DR4 standard, which carries 400GbE over four parallel single-mode fibre lanes at 100G PAM4 each, for links of up to 500 m.
