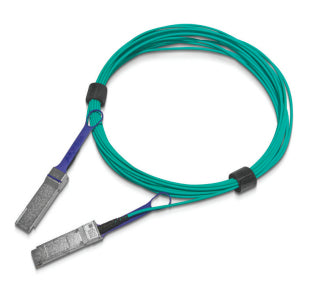

NVIDIA 980-9I13Y-00E030 | LinkX 100G QSFP28 Active Optical Cable, IB EDR, 30m, LSZH
SKU:980-9I13Y-00E030
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX MFA1A00 QSFP28 active optical cable is a hot-pluggable multimode link for 100Gb/s InfiniBand EDR and 100GbE connections. It uses VCSEL-based multimode fibre to reach much further than passive copper, which suits data-centre interconnects where racks or rows are spaced apart and port density matters.
This variant is 30m long with an LSZH jacket and a QSFP28 connector at each end. It carries four channels per end at a signalling rate of 25.78125 Gb/s per lane, with a bit error rate of 10^-15. Power comes from a single 3.3V host supply, drawing 2.2W typical per end with retiming enabled on all lanes, or 1.5W typical without retiming. Retiming can be selected per lane, and the Tx input equaliser and Rx output amplitude and pre-emphasis are programmable.
It connects to SFF-8665 QSFP28 ports on NVIDIA and Mellanox InfiniBand EDR and 100GbE systems and is listed as a validated cable in NVIDIA BlueField-2 and BlueField-3 documentation. Digital diagnostic monitoring over the SFF-8636 interface requires firmware 32.20.124 or higher.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-pluggable QSFP28 connectors at both ends
- Selectable retiming per lane on Tx and Rx for 25-26Gb/s rates
- Programmable Tx input equaliser and input squelch
- Programmable Rx output amplitude and pre-emphasis
- Digital diagnostic monitoring of temperature, supply voltage, laser bias current and Tx/Rx optical power
- Low-smoke zero-halogen (LSZH) jacket
- Production-tested for out-of-the-box installation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: QSFP28 to QSFP28 active optical cable
- Data rate: up to 100Gb/s
- Protocol: InfiniBand EDR and 100GbE
- Fibre type: multimode (VCSEL), 4 channels per end
- Length: 30m
- Jacket: LSZH
- Cable colour: Aqua
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Host interface: SFF-8665 compliant QSFP28
- Signalling rate per lane: 25.78125 Gb/s (+/-100 ppm)
- Bit error rate: 10^-15 (PRBS31 per IEEE 802.3bm)
- Supply voltage: 3.3V (3.135 to 3.465 V)
- Power per end, retiming on all lanes: 2.2W typical, 2.5W maximum
- Power per end, no retiming: 1.5W typical, 1.8W maximum
- Management interface: SFF-8636 compliant I2C
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85%
- Laser safety: Class I per IEC 60825-1 and IEC 60825-2
- Regulatory: CB, cTUVus, CE, FCC, ICES, RCM, VCCI, RoHS compliant
- Legacy part number: MFA1A00-E030
FAQs
Q: Does this cable need a licence or separate optics?
A: No. It is a complete active optical cable with the optical engines built into each QSFP28 end, so no separate transceivers or licence are needed.
Q: How much power does it draw?
A: It runs from a single 3.3V host supply and draws 2.2W typical (2.5W maximum) per end with retiming on all lanes, or 1.5W typical (1.8W maximum) per end without retiming.
Q: What ports does it work with?
A: It fits SFF-8665 QSFP28 ports on NVIDIA and Mellanox InfiniBand EDR and 100GbE systems, and is listed as a validated cable in NVIDIA BlueField-2 and BlueField-3 documentation.
Q: Can I read optical diagnostics from the cable?
A: Yes. It supports digital diagnostic monitoring over the SFF-8636 interface, covering temperature, supply voltage, laser bias current and Tx/Rx optical power. This requires firmware 32.20.124 or higher.
Q: How does this version differ from other MFA1A00 cables?
A: This SKU is the 30m InfiniBand EDR version with an LSZH jacket. Other MFA1A00 variants are offered in different lengths, with the family reaching up to 100m.
