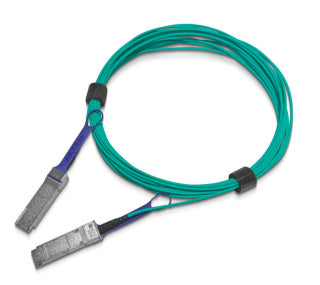

NVIDIA 980-9I13J-00E005 | LinkX 100G QSFP28 AOC, InfiniBand EDR, 5m, LSZH
SKU:980-9I13J-00E005
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA LinkX active optical cable carries InfiniBand EDR 100Gb/s traffic between QSFP28 ports over 5m of multimode fibre. It is built for HPC, AI and data centre fabrics where short, high-density links between switches and adapters are needed, and it replaces bulkier copper runs with a lighter pre-terminated fibre assembly.
The cable terminates in QSFP28 connectors at both ends and uses an 850nm VCSEL transmitter over multimode fibre. The jacket is LSZH rated (low smoke zero halogen), which suits enclosed data centre pathways. Digital diagnostics are available through the QSFP28 management interface, and the cable draws its power from the host port.
It is validated for ConnectX-6 Dx adapters and Quantum EDR InfiniBand platforms. It is a 100Gb/s QSFP28 cable and should not be used as a 40G QSFP+ cable.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Pre-terminated optical fibre at both ends, lighter and more compact than copper
- Suited to high-density data centre, HPC and AI fabric links
- LSZH (low smoke zero halogen) cable jacket
- Integrated diagnostics (DDM/DOM) on the QSFP28 management interface
- Active optical design with VCSEL transmitter for 850nm multimode links
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: 980-9I13J-00E005
- Model: MFA1A00-E005
- Cable type: Active Optical Cable, point-to-point
- Connector: QSFP28 to QSFP28
- Data rate: InfiniBand EDR, up to 100Gb/s
- Length: 5 m
- Media: Multimode fibre (MMF)
- Wavelength: 850 nm
- Transmitter: VCSEL laser
- Jacket: LSZH
- Digital diagnostics (DDM/DOM): supported
- Supply voltage: +3.3V from host port
- Maximum power consumption: 3.5 W
- Operating temperature: 0 to 70 C
FAQs
Q: What devices is this cable validated for?
A: It is validated for ConnectX-6 Dx adapters and Quantum EDR InfiniBand platforms.
Q: Can it be used as a 40G QSFP+ cable?
A: No. It is a 100Gb/s QSFP28 cable intended for InfiniBand EDR links and is not for use as a 40G QSFP+ cable.
Q: Does it need a separate power supply?
A: No. The cable is powered from the host port using a +3.3V supply, with a maximum draw of 3.5 W.
Q: What does LSZH mean for this cable?
A: LSZH stands for low smoke zero halogen. The jacket gives off little smoke and no halogen gases if burned, which suits enclosed data centre cable pathways.
Q: How is this 5m SKU different from other lengths?
A: The part number 980-9I13J-00E005 is the 5m length, with an LSZH jacket and InfiniBand EDR 100Gb/s rating. Other lengths use different part numbers.
