NVIDIA 980-9I13F-00C020 | LinkX 100GbE QSFP28 AOC, 20m, LSZH, Multimode
SKU:980-9I13F-00C020
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

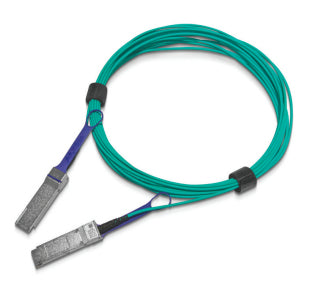

This NVIDIA LinkX (formerly Mellanox) MFA1A00-C020 is a 20 m QSFP28-to-QSFP28 active optical cable for 100Gb/s Ethernet over multimode fibre. It uses VCSEL-based optics at 850nm with fixed, integrated QSFP28 ends and an LSZH jacket, making it suited to server-to-switch and switch-to-switch links in data centres and HPC fabrics.
The cable carries 100Gb/s as 4 x 25G NRZ lanes with a bit error rate better than 1E-15. Each end dissipates 1.5 W typical without retiming and 2.2 W typical with retiming on all lanes, drawn from a single 3.3 V supply supplied by the host port. Retiming is selectable per lane on both transmitters and receivers at 25Gb/s, and the cable also supports lower bit rates without retiming. Programmable Tx input equalisation and Rx output amplitude and pre-emphasis allow signal tuning, and management is over an SFF-8636 compliant I2C interface.
The cable works with standard QSFP28 ports on 100GbE NVIDIA/Mellanox switches and ConnectX adapters, and is the Ethernet 100GbE variant rather than the InfiniBand EDR MFA1A00-E part. Compared with passive copper, it offers longer reach and higher port density.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Selectable retiming per lane on both optical transmitters and receivers at 25Gb/s
- Supports lower bit rates without retiming
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equaliser
- Hot-pluggable for easy installation and replacement
- Higher port density and much longer reach than passive copper cables in data centres
- Single 3.3 V power supply drawn from the host port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ordering description: Active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 20m
- Part number mapping: MFA1A00-C020
- Max data rate: up to 100Gb/s
- Lane configuration: 4 x 25G NRZ
- Cable length: 20 m (65.62 ft)
- Cable type: Fibre optic, active
- Optical technology: QSFP28 VCSEL-based, multimode fibre (MMF), 850nm
- Reach: up to 100 m (family maximum)
- Host connector: SFF-8665 compliant QSFP28 (both ends)
- Jacket: LSZH
- Supply voltage (Vcc): 3.135 / 3.3 / 3.465 V (min / typ / max)
- Power dissipation per end, no retiming: 1.5 W typ, 1.8 W max
- Power dissipation per end, retiming on all lanes: 2.2 W typ, 2.5 W max
- BER: better than 1E-15
- Management interface: SFF-8636 compliant I2C
- Hot pluggable: Yes
- RoHS compliant: Yes
FAQs
Q: Is this the Ethernet or InfiniBand version?
A: This is the Ethernet 100GbE variant, MFA1A00-C020. The InfiniBand EDR cable is a different part, MFA1A00-E020.
Q: What ports does it work with?
A: It works with standard QSFP28 ports on 100GbE NVIDIA/Mellanox switches and ConnectX adapters, and is listed in NVIDIA's validated cables table for ConnectX-7 under EDR / 100GbE cables.
Q: Does it need external power?
A: No. It draws a single 3.3 V supply from the host port, at 2.2 W typical per end with retiming and 1.5 W typical per end without retiming.
Q: What fibre type does it use?
A: It uses multimode fibre with 850nm VCSEL-based optics. This SKU is a fixed 20 m length with integrated QSFP28 ends.
Q: Can the optics be retimed?
A: Yes. Retiming is selectable per lane on both transmitters and receivers at 25Gb/s, and lower bit rates are supported without retiming.
