NVIDIA 980-9I134-00C010 | LinkX 100G QSFP28 AOC Cable, 10m, LSZH, 100GbE
SKU:980-9I134-00C010
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

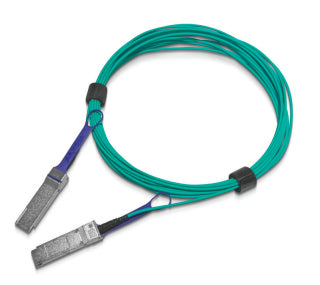

This NVIDIA LinkX MFA1A00 is a 100Gb/s QSFP28 to QSFP28 active optical cable with integrated QSFP28 ends. It uses 850nm VCSEL technology over multi-mode fibre and suits short-reach data-centre links between switches and servers, within and across adjacent racks. It is built for 100GbE and EDR InfiniBand fabrics, including HPC and AI clusters.
This SKU is the 10m version with an LSZH jacket and the Ethernet-labelled part, MFA1A00-C010. It carries four 25G NRZ lanes for a maximum data rate of 100Gb/s and uses SFF-8665 compliant QSFP28 connectors on both ends. Typical power dissipation is 2.2W per end with retiming enabled, drawn from a single 3.3V supply supplied by the host port. The operating temperature range is 0 to 70 C.
It is intended for QSFP28 ports on NVIDIA/Mellanox 100GbE and EDR InfiniBand switches and adapters, and appears on NVIDIA's validated EDR / 100GbE cable list for ConnectX-7. The InfiniBand EDR-labelled 10m equivalent is MFA1A00-E010.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 100Gb/s data rate over four 25G NRZ lanes
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalizer
- Selectable retiming per lane
- Single 3.3V power supply
- Hot pluggable for easy installation and replacement
- SFF-8636 compliant I2C management interface with digital diagnostic monitoring
- Longer reach than passive copper cables
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: 980-9I134-00C010
- Manufacturer part number: MFA1A00-C010
- Cable type: Active optical cable (AOC), 100Gb/s QSFP28 to QSFP28
- Length: 10m
- Data rate: up to 100Gb/s (4 x 25G NRZ lanes)
- Wavelength: 850nm VCSEL
- Fibre type: multi-mode fibre (MMF), four fibres per end
- Jacket: LSZH
- Connectors: SFF-8665 compliant QSFP28 on both ends
- Power dissipation per end (retiming on all lanes): 2.2 W typical, 2.5 W maximum
- Power dissipation per end (no retiming): 1.5 W typical, 1.8 W maximum
- Supply voltage: 3.135 V min, 3.3 V typical, 3.465 V max
- Bit error rate: better than 1E-15
- Management interface: SFF-8636 compliant I2C
- Operating temperature: 0 to 70 C
- Hot pluggable: Yes
- Compliance: RoHS
FAQs
Q: Which ports is this cable designed for?
A: It is designed for QSFP28 ports on NVIDIA/Mellanox 100GbE and EDR InfiniBand switches and adapters. It is listed under EDR / 100GbE cables on NVIDIA's ConnectX-7 validated cable list.
Q: What is the difference between the C010 and E010 versions?
A: The C suffix (MFA1A00-C010) is the Ethernet-labelled part, while the InfiniBand EDR-labelled 10m equivalent is MFA1A00-E010. Both are 10m QSFP28 active optical cables.
Q: How much power does the cable draw?
A: It draws from a single 3.3V supply provided by the host QSFP28 port. Typical dissipation is 2.2W per end with retiming enabled (2.5W maximum), or 1.5W typical per end without retiming.
Q: Why choose an AOC over a passive copper cable?
A: An active optical cable uses multi-mode fibre between its integrated transceiver ends, which gives longer reach than passive copper cables. This 10m length suits links between adjacent racks.
Q: What does the LSZH jacket mean?
A: LSZH stands for low smoke zero halogen. It is a jacket material used where low smoke emission is required in the event of fire.
