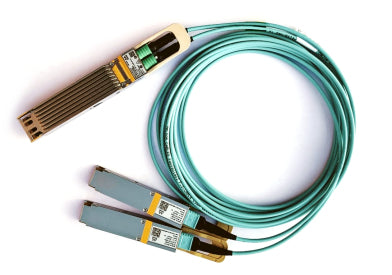

NVIDIA 980-9I11Z-00H005 | 400G OSFP to 2x 200G QSFP56 HDR AOC, 5m, Finned Top
SKU:980-9I11Z-00H005
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This active optical splitter cable has a single 400Gb/s OSFP end that breaks out into two 200Gb/s QSFP56 ends. It suits data centre links where an NDR or 400GbE OSFP switch port needs to feed two HDR or 200GbE QSFP56 switch or HCA ports, whether that is a switch and two servers or a migration from 400G to existing HDR infrastructure.
This 5m version has a finned top (non-flat-top) OSFP head. It uses multimode fibre, with 8 MMF pairs on the OSFP end and 4 pairs to each QSFP56 end, at 26.5625 GBd per lane. The cable is 3 mm in diameter with a 30 mm minimum bend radius, an aqua LSZH/OFNR jacket and an operating case temperature of 0 to 70 C. It draws power from a single 3.3V supply, up to 10W at the OSFP end and 5W at each QSFP56 end, and is hot pluggable.
The OSFP end follows OSFP MSA Rev 1.12 and CMIS 4.0, and the QSFP56 ends follow SFF-8665 and SFF-8636. Both Ethernet and InfiniBand applications are supported, but only with ConnectX-6 cards.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- OSFP head end is CMIS 4.0 compliant
- QSFP56 ends are SFF-8636 compliant with an I2C management interface
- Programmable Rx output amplitude and pre-emphasis
- EEPROM in each OSFP and QSFP56 end holds product and status monitoring information
- Hot pluggable and RoHS compliant
- Splits one 400Gb/s port into two 200Gb/s links to cut port count and cost
- Supports both Ethernet and InfiniBand with ConnectX-6 cards
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 400Gb/s to 2x 200Gb/s
- Connectors: 1x OSFP to 2x QSFP56
- Protocol: InfiniBand HDR twin port
- Cable length: 5 m
- Fibre type: multimode, 8 MMF pairs on OSFP end, 4 pairs to each QSFP56 end
- Signalling rate per lane: 26.5625 GBd (+/-100 ppm)
- OSFP head: finned top (non-flat-top)
- Supply voltage: 3.3 V typical (3.135 to 3.465 V)
- Power consumption, 400Gb/s end: 9.0 W typical, 10 W maximum
- Power consumption, 200Gb/s end: 4.35 W typical, 4.5 W maximum
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Cable colour: aqua
- Cable jacket: LSZH/OFNR
- Laser safety: Class I per IEC 60825-1, IEC 60825-2 and 21 CFR 1040
- Safety certifications: CB, cTUVus, CE
- EMC certifications: CE, FCC, ICES, RCM, VCCI
- Form factor standards: OSFP MSA Rev 1.12 (OSFP end), SFF-8665 (QSFP56)
FAQs
Q: What does this splitter cable connect?
A: It connects one OSFP 400Gb/s port on an NDR InfiniBand or 400GbE switch to two separate 200Gb/s QSFP56 ports on HDR or 200GbE switches or HCAs.
Q: Does it work with Ethernet and InfiniBand?
A: Yes, both are supported, but only with ConnectX-6 cards.
Q: How much power does it draw?
A: It runs from a single 3.3V supply drawn from the host port. The OSFP end draws up to 10W and each QSFP56 end up to 5W.
Q: How does this 5m cable differ from its sibling SKUs?
A: This SKU is the 5m length with a finned top (non-flat-top) OSFP head. Other variants in the MFA7U10-H00x family differ in length or head style.
Q: Does it need a licence or subscription?
A: No. It is a passive-managed active optical cable and needs no licence, only a compatible host port.
