NVIDIA 980-9I117-00H030 | 400G OSFP to 2x 200G QSFP56 HDR AOC, 30m, Finned-Top
SKU:980-9I117-00H030
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

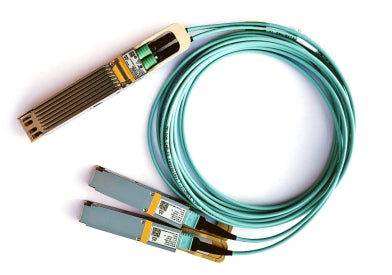

This NVIDIA LinkX HDR active optical splitter cable has a single 400Gb/s OSFP head end that breaks out to two 200Gb/s QSFP56 ends over multimode fibre. It suits data centre interconnects where an NDR or 400GbE switch with OSFP cages must feed two legacy HDR or 200GbE QSFP56 devices, such as a switch and a server, or two servers and their HCAs.
The cable is 30 m long and uses a finned-top OSFP connector (non-FLT). Data rate is 400Gb/s to 2x200Gb/s over InfiniBand HDR or 200GbE, with a signalling rate of 26.5625 GBd per lane. Power draw is a maximum of 10 W at the OSFP end and 5 W at each QSFP56 end, from a single 3.3V supply. Operating case temperature is 0 to 70 C.
It connects NVIDIA NDR and 400GbE switches to HDR and 200GbE QSFP56 ports. For both Ethernet and InfiniBand applications, NVIDIA states support only with ConnectX-6 cards. The cable is listed as a validated cable in NVIDIA ConnectX-7, BlueField-3 and Quantum firmware compatibility tables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 400Gb/s to 2x200Gb/s breakout in a single cable
- OSFP head end is CMIS 4.0 compliant
- QSFP56 ends are SFF-8636 compliant
- Programmable Rx output amplitude and pre-emphasis
- Single 3.3V power supply
- Hot pluggable and RoHS compliant
- EEPROM on each end provides product and status monitoring information
- Power-efficient connectivity for data centre interconnects
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Legacy OPN: MFA7U10-H030
- Data rate: 400Gb/s to 2x200Gb/s
- Protocol: InfiniBand HDR / 200GbE
- Head end connector: OSFP (finned top)
- Split end connectors: 2 x QSFP56
- Cable type: Active Optical Cable (AOC)
- Fibre type: Multimode fibre (MMF)
- Length: 30 m
- Supply voltage (Vcc): 3.135 V min / 3.3 V typ / 3.465 V max
- Power consumption, OSFP 400Gb/s end: 9.0 W typ, 10 W max
- Power consumption, QSFP56 200Gb/s end: 4.35 W typ, 5.0 W max
- Supply noise tolerance (10Hz-10MHz): 66 mVpp min
- Signalling rate per lane: 26.5625 GBd (+/-100 ppm)
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Cable diameter: 3 +/-0.2 mm
- Minimum bend radius: 30 mm
- Management interface: SFF-8636 compliant I2C
- Form-factor compliance: SFF-8665 (QSFP56), SFF-8679 pin assignment
FAQs
Q: What does this splitter cable connect?
A: It connects one 400Gb/s OSFP port on an NDR or 400GbE switch to two separate 200Gb/s QSFP56 ports running HDR InfiniBand or 200GbE, such as a switch and two servers or HCAs.
Q: Does it need a licence or subscription?
A: No. It is a passive-managed active optical cable with no software licence or subscription requirement.
Q: What power does the cable draw?
A: It runs from a single 3.3V supply and draws up to 10 W at the OSFP end and 5 W at each QSFP56 end, typically 9.0 W and 4.35 W.
Q: Which adapters is it compatible with?
A: NVIDIA states that both Ethernet and InfiniBand applications are supported only with ConnectX-6 cards. The cable is also listed as validated in NVIDIA ConnectX-7, BlueField-3 and Quantum firmware compatibility tables.
Q: What type of OSFP connector does this version use?
A: This SKU has a finned-top OSFP head end (non-FLT), so it suits OSFP cages designed for finned-top modules.
