NVIDIA

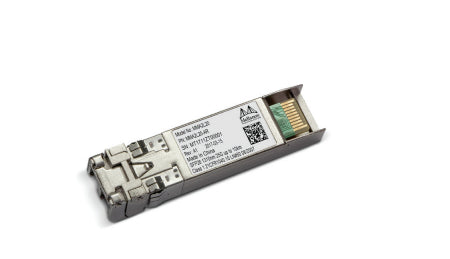

NVIDIA 980-9I094-00AR00 | LinkX 25G SFP28 Transceiver, 25GBASE-LR, 10km SMF, LC

SKU:980-9I094-00AR00

$617.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA LinkX 25G SFP28 transceiver is a hot-pluggable single-mode optical module compliant with IEEE 802.3cc 25GBASE-LR. It suits 25GbE links of up to 10 km over G.652 single-mode fibre, covering data centre, campus and metro interconnects as well as client-side 25G telecom connections.

The module runs at 25.78125 Gbps using a 1310nm DFB transmitter and a PIN receiver, with a duplex LC connector for single-mode fibre. It supports SFF-8472 digital diagnostic monitoring, operates from a single 3.3 V supply and has an operating case temperature range of 0 to 70 C. This SKU is the 25GBASE-LR, 1310nm, 10km, LC-LC variant, matching manufacturer part number MMA2L20-AR.

It is intended for 25GbE SFP28 ports on NVIDIA and Mellanox ConnectX adapters and Spectrum switches, and requires duplex single-mode fibre with LC connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-pluggable SFP28 MSA form factor
- IEEE 802.3cc 25GBASE-LR compliant
- Up to 10 km reach over G.652 single-mode fibre
- Single +3.3V power supply
- SFF-8472 compliant digital diagnostic monitoring (DDM)
- Duplex LC receptacle
- RoHS compliant
- Suited to 25GBASE-LR Ethernet links and client-side 25G telecom connections

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP28 (hot-pluggable, SFP28 MSA)
- Standard: IEEE 802.3cc 25GBASE-LR
- Data rate: 25.78125 Gbps
- Transmitter: 25Gb/s DFB, 1310nm
- Receiver: 25Gb/s PIN
- Wavelength range: 1295 to 1325 nm
- Reach: up to 10 km over G.652 single-mode fibre
- Connector: duplex LC
- Electrical interface: 28G serial (CEI-28G-VSR)
- Diagnostics: DDM/DOM (SFF-8472)
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Relative humidity (non-condensing): 5 to 85 %
- Average launch power: -7 to 2 dBm
- Optical modulation amplitude (OMA) Tx: -4 to 2.2 dBm
- Extinction ratio: 3 dB min
- Side mode suppression ratio: 30 dB min
- Transmitter and dispersion penalty (TDP): 2.7 dB max
- Receiver sensitivity (OMA): -12 dBm max
- Stressed receiver sensitivity (OMA): -9.5 dBm max
- Receiver damage threshold: 3 dBm min
- Safety and EMC: Laser Class 1, CE, FCC, EN55032 Class A, VCCI Class A, RoHS compliant

FAQs

Q: What fibre does this transceiver need?
A: It requires duplex G.652 single-mode fibre terminated with LC connectors. It does not operate over multimode fibre.

Q: What maximum distance does it support?
A: It supports links of up to 10 km over G.652 single-mode fibre, using a 1310nm DFB transmitter.

Q: Which devices is it designed for?
A: It is designed for 25GbE SFP28 ports, including NVIDIA and Mellanox ConnectX adapters and Spectrum switches. The Spectrum SN5000 datasheet lists it as MMA2L20-AR.

Q: Does it support digital diagnostics?
A: Yes. It supports DDM/DOM in line with SFF-8472, so you can read temperature, supply voltage and Tx/Rx power from the host.

Q: How much power does it draw?
A: It runs from a single 3.3 V supply drawn from the host port, with a maximum power consumption of up to 1.5 W.
