• NVIDIA 920-9B110-00RH-0M0 40-port 200Gb HDR IB switch with black chassis
1 1

NVIDIA

NVIDIA 920-9B110-00RH-0M0 | Quantum QM8700 40-Port HDR 200G Switch, C2P, 2 PSU

920-9B110-00RH-0M0

Stock Status: Enquire

$42,665.92 inc. GST
$38,787.20 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

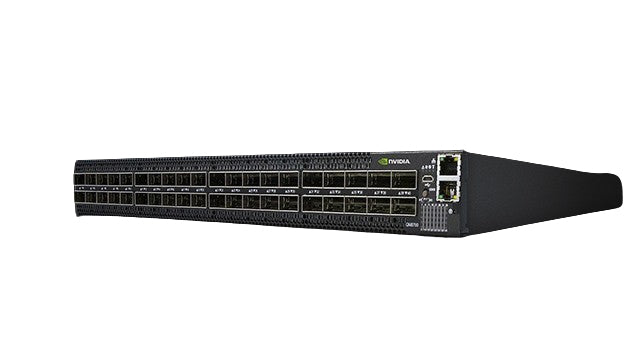

The NVIDIA Quantum QM8700 is a managed 1U HDR InfiniBand switch with 40 QSFP56 ports running at 200Gb/s, built on the Quantum ASIC for non-blocking, low-latency fabrics. This variant features an x86 dual-core management CPU running MLNX-OS, dual AC power supplies, C2P (connector-to-power) airflow and a rail kit for rack installation. It suits top-of-rack leaf or spine roles in HPC, AI and cloud or storage clusters, from small deployments through to very large fabrics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed switch running MLNX-OS software
- Supports NVIDIA In-Network Computing offload engines via SHARP (Scalable Hierarchical Aggregation and Reduction Protocol)
- Suited to top-of-rack leaf or spine roles
- Scales from small clusters to very large fabrics
- Targeted at HPC, AI and cloud or storage fabrics
- Redundant hot-swap AC power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 40 x QSFP56 200Gb/s HDR InfiniBand ports
- 1U form factor, standard depth
- Up to 16Tb/s non-blocking switching capacity
- Port-to-port latency under 130ns
- 7.2 billion packets per second (390 million pps per port)
- 2 x AC power supplies, hot-swap
- x86 dual-core management CPU running MLNX-OS
- C2P airflow (back-to-front)
- Rail kit included
- Management ports: 1x RJ45, 1x micro USB, 1x RS-232 console
- Maximum power usage approximately 650W

FAQs

Q: What does C2P airflow mean on this switch?
A: C2P stands for connector-to-power, meaning air flows back-to-front through the chassis. Match this to the airflow direction of your rack or cold aisle layout when installing.

Q: Is this switch managed or unmanaged?
A: It is a managed switch. It includes an x86 dual-core management CPU and runs MLNX-OS, with RJ45, micro USB and RS-232 console management ports.

Q: What port speeds and connectors does it support?
A: It provides 40 QSFP56 ports operating at 200Gb/s HDR InfiniBand, delivering up to 16Tb/s of non-blocking switching capacity.

Q: Is a rail kit included?
A: Yes, this SKU ships with a rail kit for mounting the 1U chassis in a standard rack.

Q: What workloads is the Quantum QM8700 designed for?
A: It is designed for HPC, AI and cloud or storage fabrics, typically deployed as a leaf or spine switch, with SHARP in-network computing support to offload collective operations.
