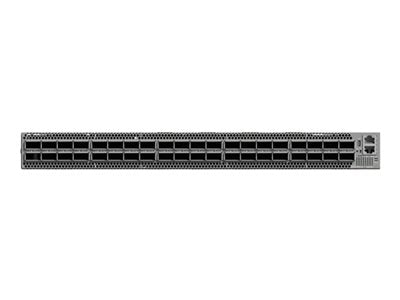

• Cisco Nexus 9018 switch with NVIDIA 920-9B110-00FH-0D0 40x QSFP56 ports
1 1

NVIDIA

NVIDIA 920-9B110-00FH-0D0 | Quantum QM8790 40-Port HDR 200G IB Switch, P2C, 2 PSU

920-9B110-00FH-0D0

Stock Status: Enquire

$34,125.90 inc. GST
$31,023.55 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA Quantum QM8790 is a 1U, 40-port HDR 200Gb/s InfiniBand edge switch built on the Mellanox Quantum ASIC, offering 16 Tb/s of non-blocking switching capacity with sub-130ns port-to-port latency. This unmanaged (externally managed) variant has no onboard x86 CPU and is configured through UFM or an external subnet manager. It ships with two hot-swappable AC power supplies, P2C airflow and a rail kit, making it well suited to top-of-rack leaf connectivity and HPC or AI cluster fabrics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- In-network computing with NVIDIA SHARP collective offload
- Adaptive routing and advanced congestion control
- Quality-of-service enforcement
- Hot-swappable redundant power supplies and fans
- Suited to top-of-rack leaf and HPC/AI cluster fabrics
- Backward compatible with earlier InfiniBand speeds
- Managed externally, for example via UFM or an external subnet manager

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 40 x QSFP56 ports, HDR 200Gb/s per port
- Up to 80 x HDR100 100Gb/s ports using splitter cables
- 16 Tb/s aggregate non-blocking switching capacity
- Sub-130ns port-to-port switch latency
- 7.2 Bpps packet forwarding (390 Mpps per port)
- Native port speeds of 40/56/100/200Gb/s InfiniBand
- Unmanaged (externally managed), no onboard x86 CPU
- 2 x AC power supplies, 1+1 redundant and hot-swappable
- N+1 redundant, hot-swappable fans
- P2C (power-to-connector) airflow
- 1U standard depth with rail kit included
- Dimensions approx. 43.6 x 433.2 x 590.6 mm (H x W x D)

FAQs

Q: Does this switch run MLNX-OS or include a subnet manager?
A: No. The QM8790 is an unmanaged, externally managed switch with no onboard x86 CPU, so MLNX-OS and a subnet manager are not on board. It is managed externally, for example through UFM or an external subnet manager.

Q: What port speeds does the QM8790 support?
A: It provides 40 QSFP56 ports at HDR 200Gb/s and natively supports 40/56/100/200Gb/s InfiniBand. Using splitter cables, it can deliver up to 80 HDR100 100Gb/s ports.

Q: What does P2C airflow mean for rack deployment?
A: P2C stands for power-to-connector airflow, meaning air flows from the power supply side towards the connector side. Choose this variant when it matches the cooling layout of your rack.

Q: Is the switch redundant and hot-swappable?
A: Yes. It has two AC power supplies in a 1+1 redundant configuration and N+1 redundant fans, all hot-swappable.

Q: What is included for mounting?
A: This variant includes a rail kit for installing the 1U standard-depth chassis in a rack.
