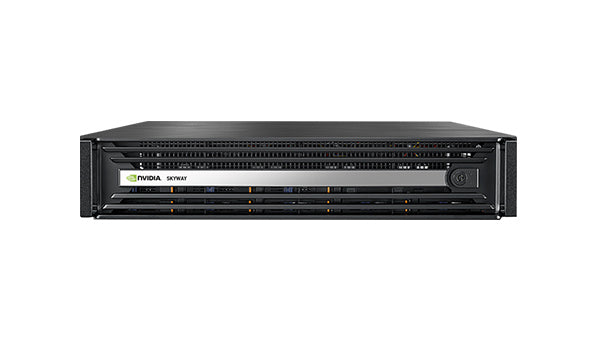

• Black NVIDIA DGX-1 AI supercomputer with 8x IB + 8x Ethernet ports
1 1

NVIDIA

NVIDIA 920-9B020-00FA-0D2 | Skyway 8x IB + 8x Ethernet Gateway, 2U, 2 AC PSUs

920-9B020-00FA-0D2

Stock Status: Enquire

$69,865.95 inc. GST
$63,514.50 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA Skyway is a 2U InfiniBand-to-Ethernet gateway appliance that bridges HDR, HDR100 and EDR InfiniBand fabrics to 100/200GbE Ethernet networks and storage. This 8x IB + 8x Ethernet configuration uses 8x ConnectX-6 VPI HDR/200GbE adapters for hardware forwarding of IP packets, with up to 1.6Tb/s of aggregate throughput. Dual 1+1 redundant AC power supplies and the MLNX-GW operating system make it suited to HPC, AI and data centre deployments that need line-rate bridging between InfiniBand and Ethernet.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware-based forwarding of IP packets between InfiniBand and Ethernet via ConnectX VPI adapters
- NVIDIA Gateway Operating System (MLNX-GW) for appliance management
- High availability and load balancing across ConnectX cards and gateway appliances
- Up to 64 gateway group identifiers spread across InfiniBand ports
- Supports standard IP routing protocols and deploys on any InfiniBand topology
- Scalable by adding more Skyway appliances
- 1+1 redundant hot AC power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number 920-9B020-00FA-0D2 (legacy OPN MGA100-HS2)
- 8x InfiniBand ports (SDR/EDR/HDR100/HDR)
- 8x Ethernet ports (200/100GbE)
- 8x NVIDIA ConnectX-6 VPI dual-port network interface cards (MCX653106A-HCAT)
- 1.6Tb/s maximum throughput across 16 ports at 100Gb/s each
- Dual Intel Xeon Scalable processors
- 2U 19-inch rackmount, 87.9mm H x 437.9mm W x 759.9mm D
- Weight 21kg
- 2x AC power supplies, 80 Plus Platinum 1+1 redundant (1000W at 100-127V, 2000W at 200-240V)
- Operating temperature 0 to 35 C, non-operating -20 to 60 C
- 4x USB 3.0 ports on the rear
- Chassis intrusion detection

FAQs

Q: What does the NVIDIA Skyway gateway do?
A: It connects InfiniBand fabrics (HDR, HDR100 and EDR) to 100/200GbE Ethernet networks and storage, forwarding IP packets between the two in hardware using ConnectX VPI adapters.

Q: How many ports does this configuration provide?
A: It provides 8x InfiniBand ports and 8x Ethernet ports, driven by 8x ConnectX-6 VPI dual-port network interface cards, for up to 1.6Tb/s of aggregate throughput.

Q: Which InfiniBand and Ethernet speeds are supported?
A: The InfiniBand ports support SDR, EDR, HDR100 and HDR speeds, and the Ethernet ports support 200GbE and 100GbE.

Q: How is the appliance managed?
A: It runs the NVIDIA Gateway Operating System (MLNX-GW), which handles management, high availability and load balancing across the ConnectX cards and gateway appliances.

Q: What power and rack requirements does it have?
A: It is a 2U 19-inch rackmount appliance with two 80 Plus Platinum AC power supplies in a 1+1 redundant arrangement, rated 1000W at 100-127V and 2000W at 200-240V.
