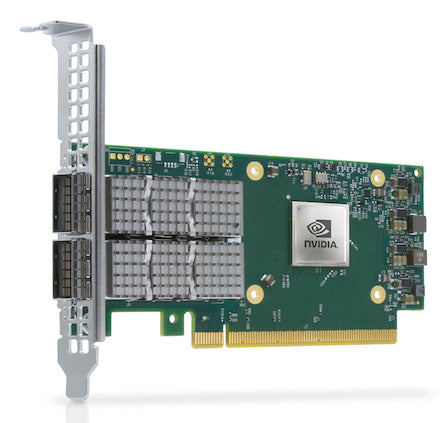

• NVIDIA 900-9X6AG-0056-ST1 100G QSFP28 PCIe NIC with green PCB
1 1

NVIDIA

NVIDIA 900-9X6AG-0056-ST1 | ConnectX-6 Dx Dual-Port 100G Network Adapter, PCIe 4.0

900-9X6AG-0056-ST1

Stock Status: Enquire

$2,715.96 inc. GST
$2,469.05 ex. GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The NVIDIA ConnectX-6 Dx is a high-performance dual-port 100GbE SmartNIC designed to accelerate mission-critical data center workloads including virtualization, security, SDN/NFV, machine learning, and storage. Featuring QSFP56 connectivity and PCIe 4.0 x16 interface, it delivers up to 200Gb/s total bandwidth with advanced RDMA, SR-IOV, and inline IPsec/TLS offload capabilities. This adapter brings hardware-accelerated security and programmable pipeline technology to modern cloud and enterprise infrastructures.

Features

ASAP2 technology for SR-IOV and VirtIO acceleration with OVS data path offload
- Hardware root of trust and secure boot for trusted system initialization
- RoCEv2 RDMA support with programmable congestion control and zero-touch deployment
- SR-IOV virtualization support for up to hundreds of virtual functions
- PTP (Precision Time Protocol) hardware timestamping for sub-microsecond synchronization
- Overlay network encapsulation offload for VXLAN, GENEVE, NVGRE
- Stateless and stateful packet processing with programmable pipeline
- NVMe over Fabrics target and initiator offload for storage acceleration
- T10-DIF/PI data integrity field processing with CRC32/CRC64 offload
- Advanced QoS with traffic shaping, rate limiting, and priority queuing
- Link aggregation and load balancing support
- Auto-negotiation with enhanced bit error rate optimization
- NVIDIA Multi-Host technology support for multi-tenant environments
- Low-profile form factor compatible with standard 1U/2U rack servers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: PCIe 4.0 x16 low-profile adapter card
- Network Ports: Dual QSFP56 (copper and optical)
- Data Rates: 10/25/40/50/100 Gb/s Ethernet per port
- Maximum Total Bandwidth: 200 Gb/s
- Supported Protocols: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2/R4, 40GBASE-CR4/KR4/SR4/LR4, 25GBASE-R, 10GBASE-SR/LR/ER/CR/KR, 1000BASE-KX
- Host Interface: PCIe Gen 4.0 x16 (backward compatible with PCIe Gen 3.0)
- Message Rate: Up to 215 million packets per second
- Latency: Sub-0.8 microseconds
- Power Consumption: Typical 19.52W (PCIe Gen 4.0), Maximum 26.64W with passive cables
- Dimensions: 142mm x 68.9mm (5.59 x 2.71 inches)
- Operating Temperature: 0°C to 55°C
- Certifications: CB, cTUVus, CE, FCC, VCCI, RoHS compliant

FAQs

Q: What are the key use cases for the ConnectX-6 Dx adapter?
A: The ConnectX-6 Dx is optimized for data center applications requiring high throughput and low latency, including virtualized environments with SR-IOV, software-defined networking with OVS offload, RDMA storage over RoCEv2, inline security processing with IPsec/TLS offload, and high-performance computing clusters. It accelerates both north-south and east-west data center traffic.

Q: Does this SKU support hardware cryptographic offload?
A: No, the 900-9X6AG-0056-ST1 is the non-crypto version with crypto disabled. While it supports secure boot, it does not include hardware acceleration for IPsec or TLS encryption/decryption. Organizations requiring inline crypto offload should select a crypto-enabled ConnectX-6 Dx SKU.

Q: What cables and transceivers are compatible with the QSFP56 ports?
A: The QSFP56 ports support a wide range of connectivity options including passive and active Direct Attach Copper cables, Active Optical Cables, and QSFP56 optical transceivers for SR/LR multimode and single-mode fiber links. The adapter also supports breakout configurations such as 1x100G to 4x25G or 2x50G depending on switch capabilities.

Q: Can this adapter be used in PCIe Gen 3.0 systems?
A: Yes, the ConnectX-6 Dx is backward compatible with PCIe Gen 3.0 systems. While a PCIe Gen 4.0 x16 slot provides up to 200Gb/s of bandwidth, the adapter will function in PCIe Gen 3.0 x16 slots with sufficient bandwidth to support dual 100Gb/s ports for most workloads. Power consumption is slightly lower at 18.7W typical in Gen 3.0 mode.

Q: What RDMA capabilities does this adapter provide?
A: The ConnectX-6 Dx supports RoCEv2 (RDMA over Converged Ethernet version 2) with hardware offload for RDMA operations, enabling ultra-low latency data transfers for storage, clustering, and HPC applications. It includes programmable congestion control, PFC (Priority Flow Control), ECN (Explicit Congestion Notification), and zero-touch RoCE features for simplified deployment.
