• NVIDIA ConnectX-6 HDR 200Gb/s NIC with PCIe 4.0 x16 and QSFP56
1 1

NVIDIA

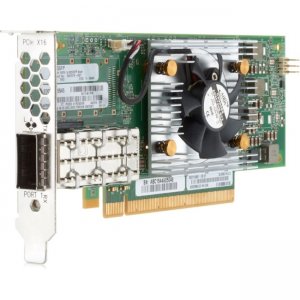

NVIDIA 900-9X6AF-0018-MT2 | ConnectX-6 Single-Port 200Gb HDR IB/Ethernet Adapter

900-9X6AF-0018-MT2

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The NVIDIA ConnectX-6 VPI adapter card delivers 200Gb/s InfiniBand HDR and Ethernet connectivity in a single-port QSFP56 form factor with PCIe 4.0 x16 host interface. Engineered for high-performance computing, AI/ML workloads, and data center applications, this adapter provides sub-600ns latency, 215 million messages per second, and supports advanced features including RDMA, RoCEv2, GPUDirect, and PTP hardware timestamping. The Virtual Protocol Interconnect technology enables flexible protocol switching between InfiniBand and Ethernet on a single adapter.

Features

200Gb/s HDR InfiniBand and 200GbE Ethernet on single QSFP56 port
- Virtual Protocol Interconnect (VPI) for flexible InfiniBand/Ethernet switching
- PCIe 4.0 x16 host interface for maximum bandwidth to CPU
- Sub-600 nanosecond network latency for real-time applications
- RDMA over Converged Ethernet v2 (RoCEv2) with lossless transport
- Native InfiniBand RDMA for HPC and AI workloads
- NVIDIA GPUDirect RDMA for direct GPU-to-network transfers
- NVIDIA GPUDirect Storage for direct storage-to-GPU data paths
- NVMe over Fabrics hardware acceleration (initiator and target)
- IEEE 1588v2 PTP hardware timestamping for microsecond-level synchronization
- SR-IOV virtualization with up to 127 virtual functions
- VirtIO hardware offload for cloud and NFV environments
- Advanced congestion control (ECN, PFC, QCN)
- Hardware-based Quality of Service (QoS) and traffic shaping
- Overlay network encapsulation (VXLAN, NVGRE, Geneve)
- Stateless offloads: checksum, LSO/LRO, RSS, VLAN insertion/stripping
- TLS 1.2 and 1.3 inline encryption and decryption
- IPsec inline encryption for secure communications
- Secure boot and secure firmware update mechanisms
- Backward compatible with FDR, EDR, and lower InfiniBand speeds
- Multi-speed Ethernet support down to 10GbE
- Tall bracket form factor for standard rackmount servers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Single-port QSFP56 interface supporting 200Gb/s HDR InfiniBand and 200GbE Ethernet
- PCIe 4.0 x16 host interface with 16 GT/s link rate
- Virtual Protocol Interconnect (VPI) technology for InfiniBand and Ethernet on single adapter
- Multi-speed support: HDR/HDR100/EDR/FDR/QDR/DDR/SDR InfiniBand and 200/100/50/40/25/10 Gb/s Ethernet
- Sub-600ns latency with 215 million messages per second throughput
- RDMA over Converged Ethernet (RoCEv2) and native InfiniBand RDMA support
- NVIDIA GPUDirect RDMA and GPUDirect Storage acceleration
- IEEE 1588v2 PTP hardware timestamping for precision timing
- SR-IOV and VirtIO hardware virtualization support
- NVMe over Fabrics (NVMe-oF) target and initiator support
- Advanced congestion control and quality of service (QoS)
- Tall bracket included, compatible with standard server chassis
- Model number: MCX653105A-HDAT

FAQs

Q: What is VPI and how does it benefit my deployment?
A: Virtual Protocol Interconnect (VPI) allows the ConnectX-6 adapter to dynamically switch between InfiniBand and Ethernet protocols on the same port. This provides deployment flexibility, enabling you to run either HDR InfiniBand for HPC clusters or 200GbE for data center networking without changing hardware.

Q: Is this adapter compatible with NVIDIA GPUDirect technology?
A: Yes, the ConnectX-6 fully supports NVIDIA GPUDirect RDMA and GPUDirect Storage, enabling direct memory access between GPUs and the network adapter. This bypasses CPU overhead, dramatically accelerating AI/ML training, HPC simulations, and GPU-accelerated workloads.

Q: What RoCE version does this adapter support?
A: The adapter supports RoCEv2 (RDMA over Converged Ethernet version 2), providing lossless RDMA capabilities over standard Ethernet networks. This enables low-latency, high-throughput data transfers for storage, virtualization, and cloud applications without requiring InfiniBand infrastructure.

Q: Can I use this adapter for NVMe over Fabrics storage arrays?
A: Absolutely. The ConnectX-6 provides hardware-accelerated NVMe over Fabrics support, functioning as both initiator and target. This enables ultra-low latency access to NVMe SSDs over the network, ideal for disaggregated storage architectures and all-flash arrays.

Q: What is the typical power consumption of this adapter?
A: Power consumption varies based on traffic load and port speed configuration. Ensure your server's PCIe slot can supply adequate power per the specifications in the NVIDIA ConnectX-6 documentation. The adapter is designed for standard enterprise server power envelopes with PCIe 4.0 x16 slots.
