NVIDIA

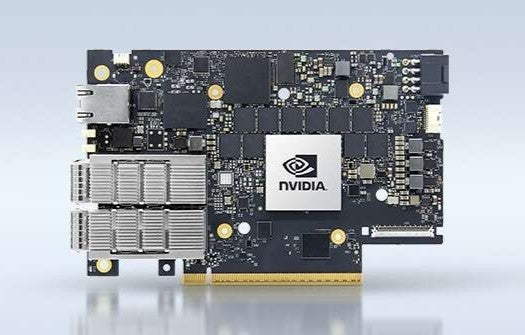

NVIDIA 900-9D3B6-00CV-AA0 | Dual QSFP112 200GbE/NDR200 IB DPU, PCIe Gen5 x16, FHHL (Tall Bracket)

SKU:900-9D3B6-00CV-AA0

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

FHHL DPU with dual QSFP112 ports delivering 200GbE Ethernet (default) or NDR200 InfiniBand, featuring PCIe Gen5 x16 for maximum host bandwidth and low-latency acceleration.

Features

- Dual QSFP112 interfaces for 200G line-rate performance
- PCIe Gen5 x16 host connectivity for maximum throughput
- Selectable Ethernet or InfiniBand to match fabric requirements
- Offloads to reduce CPU load in virtualized and storage environments
- Full-height, half-length card with tall bracket for standard racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does it ship in Ethernet or InfiniBand mode?
A: Ethernet 200GbE is the default; InfiniBand NDR200 can be enabled via firmware tools.

Q: Which media are supported on the QSFP112 ports?
A: 200G QSFP112 optical modules as well as compatible DAC/AOC cables approved on the official list.

Q: What PCIe requirements apply?
A: Requires a full-height PCIe Gen5 x16 slot for full bandwidth.

Q: Is SR‑IOV supported?
A: Yes, SR‑IOV is supported for scalable virtualization.

Q: Can I mix Ethernet on one port and InfiniBand on the other?
A: Mixed protocol operation is not supported simultaneously; configure the adapter for one mode at a time.

Technical Specifications

- Chip: BlueField-3
- Ports: 2
- Connector: 2x QSFP112
- Ethernet speed: 200GbE (default mode)
- InfiniBand speed: NDR200
- Form factor: FHHL (Full-Height Half-Length)
- Bracket: Tall (full-height)
- Bus interface: PCIe Gen5 x16
- Operating modes: Ethernet or InfiniBand (selectable via firmware)
- Virtualization: SR‑IOV and RoCEv2 capable
