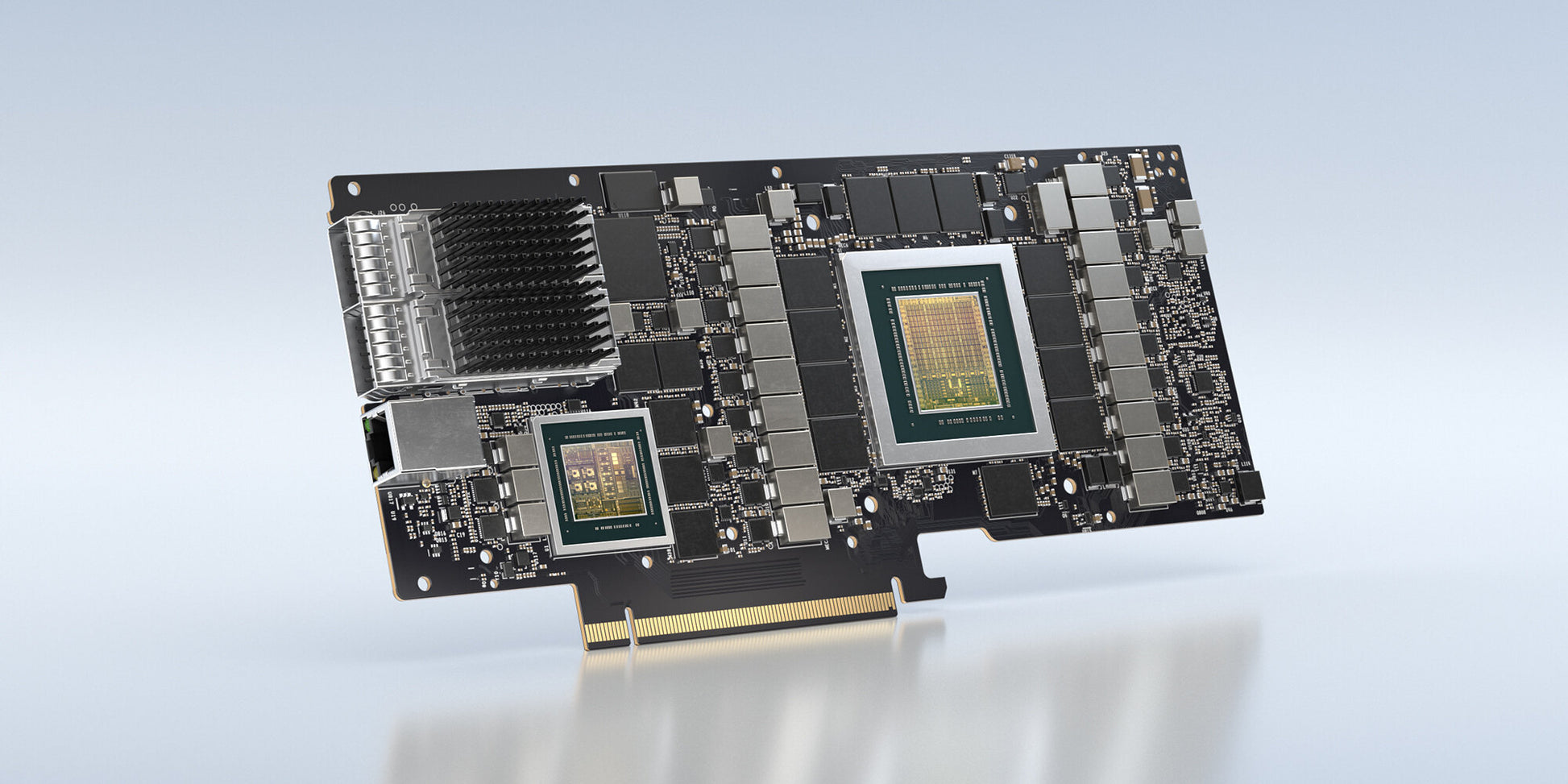

NVIDIA 900-9D3B4-00SV-EA0 | Dual-port 200GbE/NDR200 IB SuperNIC, FHHL, PCIe Gen5, E‑Series

SKU:900-9D3B4-00SV-EA0

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

E‑Series FHHL SuperNIC delivering dual 200GbE Ethernet (default) or NDR200 InfiniBand for high‑performance data center fabrics, enabling low latency and high throughput with advanced acceleration.

Features

- 200GbE/NDR200 dual-port flexibility for converged fabrics
- Hardware acceleration to offload data path processing
- Low-latency transport with RoCEv2
- Enterprise-class reliability in FHHL form factor
- E‑Series tuning for performance and efficiency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is Ethernet or InfiniBand enabled out of the box?
A: Ethernet (200GbE) is enabled by default; InfiniBand (NDR200) can be enabled through firmware tools.

Q: What server slot is required?
A: Use a full-height PCIe slot with Gen5 capability for optimal bandwidth.

Q: What media types can I use?
A: Use QSFP-family 200G optical modules, DACs, or AOCs listed on the official compatibility guide.

Q: Does it support virtualization features?
A: Yes, SR‑IOV and RoCEv2 are supported for high-performance virtualization and storage fabrics.

Q: Can both ports use different protocols at once?
A: The adapter operates per configured mode; mixed Ethernet/InfiniBand operation is not supported simultaneously.

Technical Specifications

- Chip: BlueField-3
- Ports: 2
- Ethernet speed: 200GbE (default mode)
- InfiniBand speed: NDR200
- Form factor: FHHL (Full-Height Half-Length)
- Bus interface: PCIe Gen5
- Port interface: QSFP-family (dual)
- Operating modes: Ethernet or InfiniBand (selectable via firmware)
- Class: E‑Series SuperNIC
- Virtualization: SR‑IOV and RoCEv2 capable
