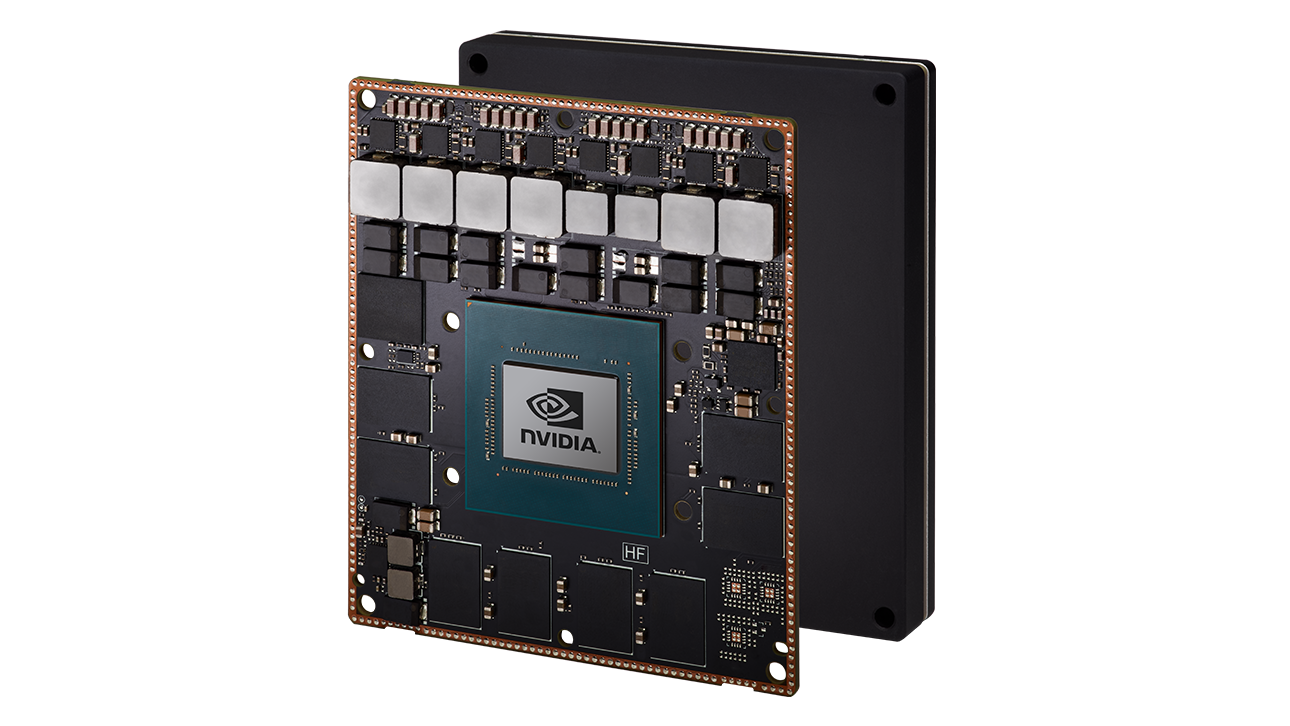

NVIDIA 900-82888-0080-000 | Jetson AGX Xavier Industrial Module, 32GB, 64GB eMMC

900-82888-0080-000

Stock Status: Enquire

$4,356.66 inc. GST
$3,960.60 ex. GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The NVIDIA Jetson AGX Xavier Industrial is a rugged AI compute module delivering up to 32 TOPS of performance for industrial automation, robotics, and safety-critical edge AI applications. Designed for harsh environments with extended temperature range (-40°C to 85°C), shock and vibration resistance, and functional safety capabilities managed by a Safety Cluster Engine. Features 512-core Volta GPU with 64 Tensor Cores, 8-core Carmel ARM CPU, 32GB LPDDR4x memory, 64GB eMMC storage, and comprehensive security with secure boot and hardware-accelerated encryption.

Features

32 TOPS AI inference performance for edge computing applications
- 512 CUDA cores and 64 Tensor Cores (NVIDIA Volta architecture) for accelerated deep learning
- Dual NVDLA v2.0 deep learning accelerators for dedicated neural network inference
- Dual Programmable Vision Accelerators (PVA) for computer vision processing
- 8-core NVIDIA Carmel ARMv8.2 64-bit CPU with multi-core processing
- 32GB LPDDR4x memory with ECC support for industrial reliability
- Safety Cluster Engine with dual ARM Cortex-R5 processors for functional safety
- Extended industrial temperature range: -40°C to 85°C operation
- Rugged design: 50G shock and 340G vibration resistance
- Hardware-verified secure boot for trusted execution
- Hardware-accelerated cryptography engine
- Encrypted storage and memory support for data protection
- Multiple MIPI CSI-2 camera interfaces for multi-sensor fusion
- PCIe Gen4 high-speed expansion capability
- Configurable power profiles: 20W and 40W modes
- Compact 100mm x 87mm form factor for space-constrained deployments
- Compatible with NVIDIA JetPack SDK and NGC pretrained models
- Video encode/decode capabilities for multi-stream processing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

GPU: 512-core NVIDIA Volta with 64 Tensor Cores
- CPU: 8-core NVIDIA Carmel ARMv8.2 64-bit processor
- Memory: 32GB 256-bit LPDDR4x with ECC support
- Storage: 64GB eMMC 5.1
- AI Performance: Up to 32 TOPS (configurable power modes: 20W and 40W)
- Deep Learning Accelerators: Dual NVDLA v2.0
- Vision Accelerators: Dual Programmable Vision Accelerators (PVA)
- Safety: Dual ARM Cortex-R5 Safety Cluster Engine for functional safety
- Operating Temperature: -40°C to 85°C (extended industrial range)
- Environmental: 50G shock, 340G vibration resistance
- I/O Interfaces: MIPI CSI-2, PCIe, Gigabit Ethernet, USB, CAN, GPIO, UART, I2C, I2S, SPI
- Form Factor: 100mm x 87mm compact SOM
- Security: Secure boot, hardware-accelerated cryptography, encrypted storage and memory

FAQs

Q: What makes the Jetson AGX Xavier Industrial different from the standard Jetson AGX Xavier?
A: The Industrial variant features extended temperature range (-40°C to 85°C), enhanced shock and vibration resistance (50G/340G), ECC memory support, Safety Cluster Engine with dual Cortex-R5 processors for functional safety applications, and power profiles optimized for 20W and 40W operation instead of 10W/15W/30W.

Q: What software and development tools are supported?
A: The module is supported by NVIDIA JetPack SDK which includes Jetson Linux (L4T), CUDA, cuDNN, TensorRT, and libraries for computer vision, multimedia, and AI frameworks. Pretrained models are available through the NGC catalog for accelerated development.

Q: What types of applications is this module designed for?
A: Ideal for industrial robotics, autonomous machines, machine vision systems, smart manufacturing, outdoor autonomous vehicles, medical imaging equipment, and any safety-critical or industrial-grade AI edge computing application requiring operation in harsh environments.

Q: Does this module require a carrier board?
A: Yes, this is a System-on-Module (SOM) that requires a compatible carrier board with 699-pin Samtec connector to provide physical I/O connections, power regulation, and peripheral interfaces. Various third-party carrier boards are available for different deployment scenarios.

Q: What are the key functional safety features?
A: The Safety Cluster Engine with dual ARM Cortex-R5 processors provides fault-detection mechanisms, built-in system tests, and functional safety supervision. Combined with ECC memory, error correction codes, and parity protection, it enables development of IEC 61508 compliant safety-certified products.
