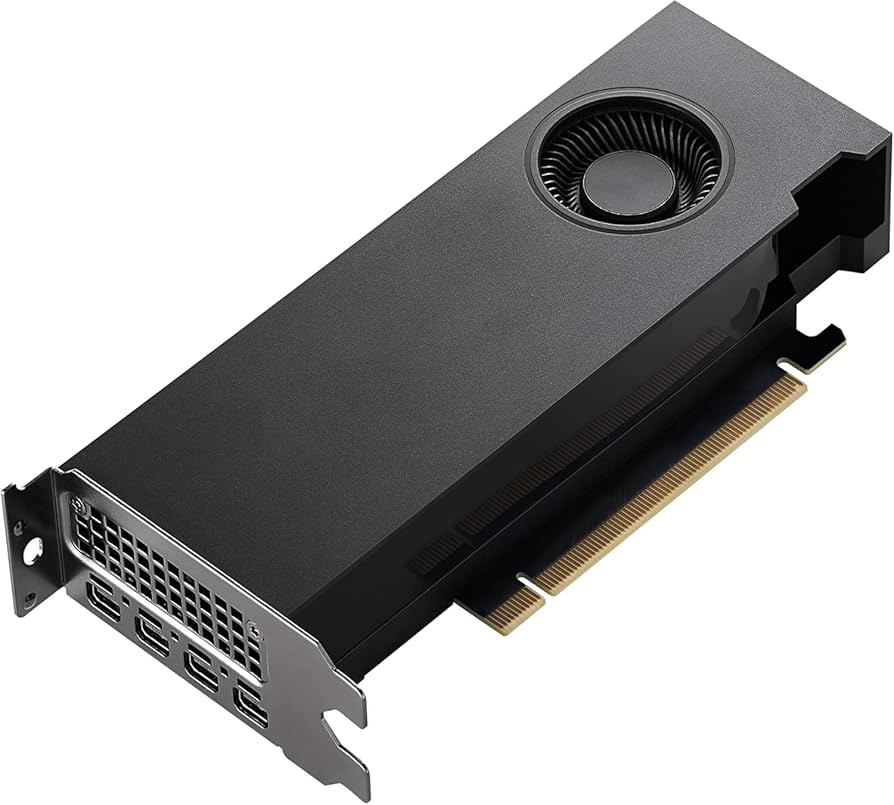

NVIDIA 900-5G192-2551-000 | RTX A2000 12GB GDDR6 Graphics Card, 4x mDP, 70W
SKU:900-5G192-2551-000
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The RTX A2000 12GB is a low-profile, dual-slot professional graphics card from the NVIDIA RTX A-Series, built on the Ampere architecture. It suits small form factor professional workstations running design, rendering, ray tracing, AI-accelerated and VR workflows, and the 12GB model is well matched to larger models and datasets.
The card carries 12GB of ECC GDDR6 memory on a 192-bit interface with 288 GB/s of bandwidth, alongside 3,328 CUDA cores, 104 third-generation Tensor Cores and 26 second-generation RT Cores. Peak single-precision performance is 8.0 TFLOPS. Four latching Mini DisplayPort 1.4a outputs drive up to four 4096 x 2160 displays at 120 Hz, or two 7680 x 4320 displays at 60 Hz. Total board power is 70 W with active cooling.
It installs in a PCIe 4.0 x16 slot and supports Windows 10, Windows 11 and Linux for NVIDIA Mosaic. Supported APIs include CUDA 11.6, OpenCL 3.0, Vulkan 1.3, DirectX 12 Ultimate and OpenGL 4.6.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Real-time ray tracing with second-generation RT Cores
- AI-accelerated compute with third-generation Tensor Cores
- 12GB ECC GDDR6 memory for larger models and datasets
- PCI Express Gen 4 interface
- AV1 decode support
- NVIDIA Mosaic multi-display technology on Windows 10, Windows 11 and Linux
- HDCP 2.2 support and DisplayPort with audio
- Certified with a broad range of professional ISV applications
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- GPU memory: 12GB GDDR6 with ECC
- Memory interface: 192-bit
- Memory bandwidth: 288 GB/s
- CUDA cores: 3,328 (NVIDIA Ampere)
- Tensor Cores: 104 (third-generation)
- RT Cores: 26 (second-generation)
- Single-precision performance: 8.0 TFLOPS (peak)
- RT Core performance: 15.6 TFLOPS (peak)
- Tensor performance: 63.9 TFLOPS (effective, using sparsity)
- System interface: PCIe 4.0 x16
- Power consumption: 70 W total board power
- Thermal solution: Active
- Form factor: 2.7" H x 6.6" L, low-profile, dual slot
- Display connectors: 4x Mini DisplayPort 1.4a with latching mechanism
- Max displays: 4x 4096 x 2160 @ 120 Hz, 4x 5120 x 2880 @ 60 Hz, 2x 7680 x 4320 @ 60 Hz
- Encode/decode engines: 1x encode, 1x decode, plus AV1 decode
- Graphics APIs: DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3
- Compute APIs: CUDA 11.6, DirectCompute, OpenCL 3.0
- VR ready: Yes
FAQs
Q: What slot does the RTX A2000 12GB need?
A: It requires a PCIe x16 slot and is designed for PCIe 4.0 x16. The low-profile, dual-slot design suits small form factor workstations.
Q: Does it need a separate power connector?
A: Total board power is 70 W, and the card is a PCIe slot-powered design with no supplementary power connector listed.
Q: How many displays can it drive?
A: It has four latching Mini DisplayPort 1.4a outputs. It supports four 4096 x 2160 displays at 120 Hz, four 5120 x 2880 displays at 60 Hz, or two 7680 x 4320 displays at 60 Hz.
Q: Does it support ECC memory?
A: Yes. The 12GB of GDDR6 memory supports error-correcting code (ECC).
Q: Which operating systems and APIs does it support?
A: NVIDIA Mosaic is supported on Windows 10, Windows 11 and Linux. Supported APIs include CUDA 11.6, OpenCL 3.0, Vulkan 1.3, DirectX 12 Ultimate and OpenGL 4.6.
