NVIDIA 900-5G153-2570-000 | RTX PRO 5000 Blackwell 72GB GDDR7 Graphics Card, 300W
SKU:900-5G153-2570-000
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

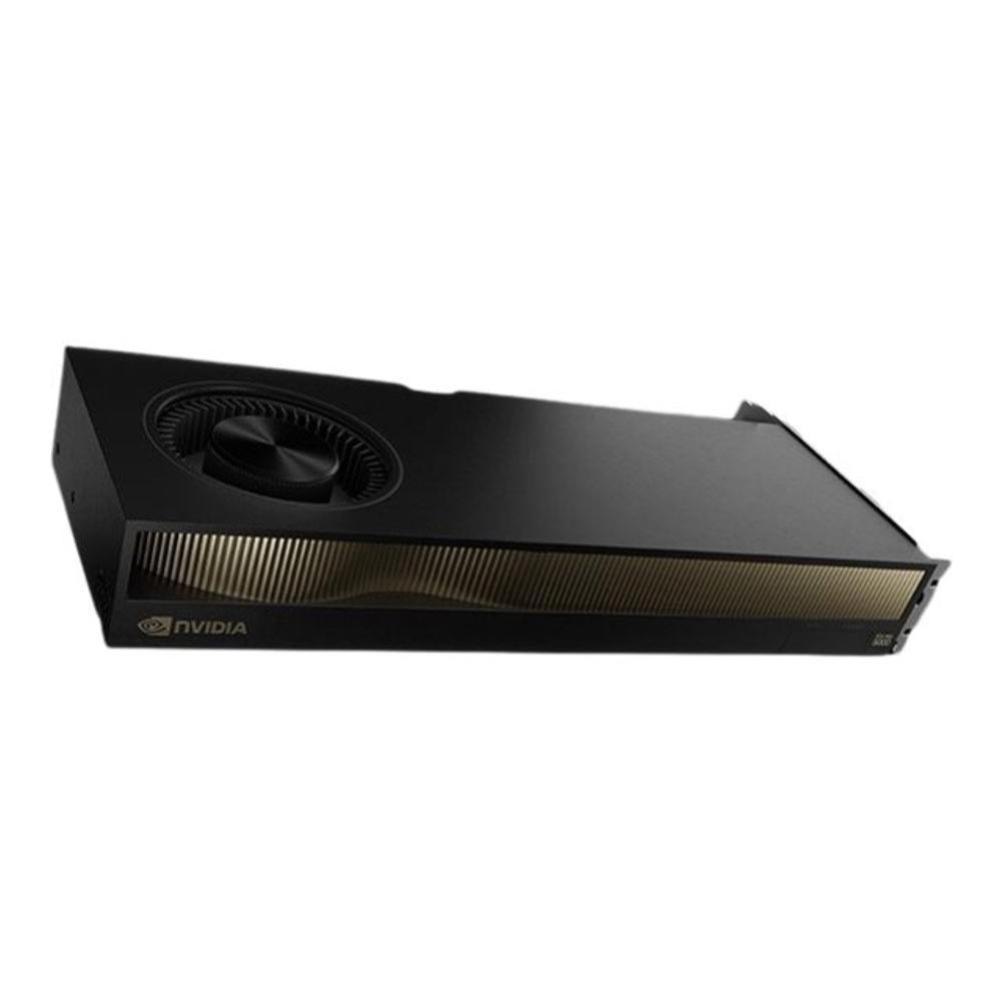

The NVIDIA RTX PRO 5000 Blackwell is a dual-slot professional workstation GPU with 72GB of GDDR7 ECC memory, built for AI development, LLM inference, neural rendering, simulation, video production and complex 3D design work.
The card pairs 14,080 CUDA Cores with 440 fifth-generation Tensor Cores and 110 fourth-generation RT Cores, delivering 65 TFLOPS of single-precision performance and up to 2,064 AI TOPS (peak, FP4 with sparsity). Memory runs on a 384-bit interface at 1,344 GB/s. This 72GB variant has a 300W maximum board power, a blower-style active cooler and a single 16-pin PCIe CEM5 (12V-2x6) power connector, which separates it from the 48GB sibling. Multi-Instance GPU support lets you split the card into up to two 36GB instances or use it as a single 72GB instance. Four DisplayPort 2.1b outputs drive resolutions up to 7680 x 4320.
It installs in a PCIe 5.0 x16 slot and works with Intel Core and Xeon or AMD Ryzen and EPYC workstation platforms. It supports DirectX 12, OpenGL 4.6, Vulkan 1.3 and OpenCL 3.0, and is compatible with NVIDIA RTX PRO Sync for frame lock across systems.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- NVIDIA Blackwell architecture with fifth-generation Tensor Cores (FP4 support) and fourth-generation RT Cores
- 72GB GDDR7 ECC memory, twice the capacity of the previous generation
- Ninth-generation NVENC and sixth-generation NVDEC with 4:2:2 support
- Multi-Instance GPU (MIG) support to partition the card into isolated GPU instances
- AI Management Processor
- Four DisplayPort 2.1b connectors for multi-display setups
- Compatible with NVIDIA RTX PRO Sync for multi-system synchronisation and frame lock
- Enterprise drivers, ISV certifications and IT management tooling
- Programmable power cap via nvidia-smi
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- GPU architecture: NVIDIA Blackwell
- Process: TSMC 4N NVIDIA custom process
- Transistors: 92.2 billion
- Die size: 750 mm2
- CUDA Cores: 14,080
- Tensor Cores: 440 (fifth generation)
- RT Cores: 110 (fourth generation)
- AI performance: 2,064 AI TOPS (peak, FP4, with sparsity)
- Single-precision performance: 65 TFLOPS
- RT Core performance: 196 TFLOPS
- GPU memory: 72GB GDDR7 with ECC
- Memory interface: 384-bit
- Memory bandwidth: 1,344 GB/s
- Multi-Instance GPU (MIG): up to 2x 36GB or 1x 72GB
- Graphics bus: PCI Express 5.0 x16
- Display connectors: 4x DisplayPort 2.1b
- Maximum digital resolution: 7680 x 4320
- Video engines: 3x NVENC (9th gen), 3x NVDEC (6th gen), 1x JPEG
- Maximum power consumption (TGP): 300W
- Power connector: 1x PCIe CEM5 16-pin (12V-2x6)
- Form factor: 4.4 in H x 10.5 in L (112 x 267 mm), full-height full-length, dual slot
- Thermal solution: active blower fan
- Weight: 1.219 kg
- Frame lock: compatible with NVIDIA RTX PRO Sync
FAQs
Q: What power connection does this card need?
A: It draws up to 300W through a single 16-pin PCIe CEM5 (12V-2x6) auxiliary power connector. The power cap can be adjusted using nvidia-smi.
Q: What slot does it install in?
A: It uses a PCIe 5.0 x16 slot, which is preferred for full performance. It is a full-height, full-length dual-slot card, so check chassis clearance before ordering.
Q: How does this differ from the 48GB RTX PRO 5000 model?
A: This SKU carries 72GB of GDDR7 ECC memory, while the 48GB sibling (900-5G153-2550-000) has less memory capacity. This 72GB card is the 300W blower-cooled version with a 16-pin power connector.
Q: Can the card be partitioned for multiple users or workloads?
A: Yes. Multi-Instance GPU (MIG) lets you split the card into up to two 36GB instances, or run it as a single 72GB instance.
Q: What displays and software APIs does it support?
A: It has four DisplayPort 2.1b outputs supporting up to 7680 x 4320. It supports DirectX 12, OpenGL 4.6, Vulkan 1.3, OpenCL 3.0 and DirectCompute.
