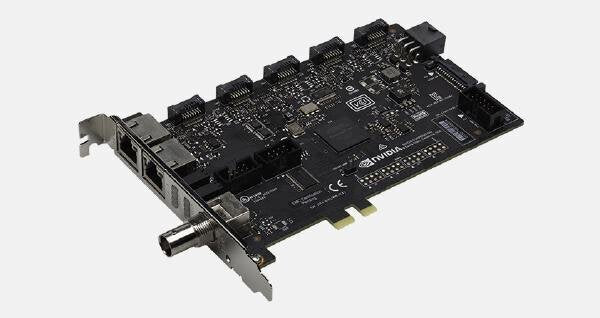

NVIDIA 900-52061-0000-000 | Quadro Sync II Frame Lock & Genlock Module for RTX A-Series

Q: What GPUs are compatible with the Quadro Sync II card?
A: The Quadro Sync II is compatible with NVIDIA RTX A-series GPUs including the RTX A4000, A4500, A5000, A5500, and A6000. It also supports earlier generation Quadro RTX models such as the RTX 8000, 6000, 5000, and 4000, as well as select Pascal-based Quadro GPUs like the P6000, P5000, P4000, and GP100.

Q: How many displays can be synchronized with the Quadro Sync II?
A: A single Quadro Sync II card can synchronize up to 4 GPUs and 32 displays. Systems can accommodate up to 2 Sync II cards, enabling synchronization of up to 8 GPUs and 32 displays total with proper configuration.

Q: What is the difference between frame lock and genlock?
A: Frame lock synchronizes the display refresh timing across multiple GPUs and displays within a system, ensuring all outputs update simultaneously. Genlock synchronizes the entire system's pixel scanning to an external reference signal (typically via BNC), essential for broadcast video production and applications requiring synchronization with external equipment.

Q: What applications benefit from the Quadro Sync II card?
A: The Quadro Sync II is designed for professional applications including video walls, broadcast and post-production studios, large-scale scientific visualization, CAD/CAM multi-display workstations, simulation and training systems, virtual reality installations, and any multi-GPU setup requiring precise display synchronization across multiple outputs.

Q: Does the Quadro Sync II require external power?
A: The Quadro Sync II with four sync connectors requires external power via a 6-pin PCIe power cable or SATA power connection. Ribbon cables must be connected between the Sync card and compatible GPUs to enable frame lock and genlock functionality.
