NVIDIA 900-13834-0080-001 | Jetson AGX Thor T5000 AI Module, 128GB, 2070 TFLOPS
SKU:900-13834-0080-001
5 in stock
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

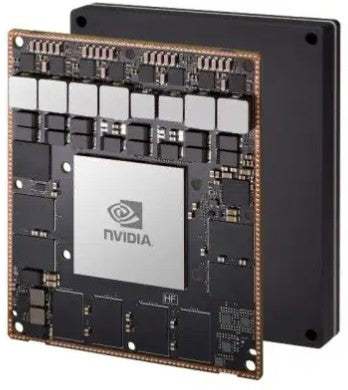

The Jetson AGX Thor T5000 is a system-on-module from the NVIDIA Jetson Thor series, built for robotics and physical AI. It suits humanoid robots, general robotics, generative AI at the edge and multi-sensor real-time applications that need server-class AI compute in a compact module.
This T5000 variant pairs a 2560-core NVIDIA Blackwell GPU with 96 fifth-generation Tensor Cores and a 14-core Arm Neoverse-V3AE CPU running up to 2.6 GHz. It delivers up to 2070 FP4 TFLOPS (sparse) with 128 GB of 256-bit LPDDR5X memory at 273 GB/s. Power is configurable from 40 W to 130 W, with 70 W, 90 W, 120 W and MAXN modes available. Networking is handled by 4x 25 GbE, and the module supports up to 20 cameras via HSB, up to 8 lanes of PCIe Gen5 and NVMe storage over PCIe.
The 100 mm x 87 mm module connects to a carrier board through a 699-pin board-to-board connector and includes an integrated thermal transfer plate with heatpipe. It is supported by the Jetson AGX Thor Developer Kit carrier platform, and FP8 and FP4 are supported natively through TensorRT.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Blackwell GPU with transformer engine and Multi-Instance GPU support for running generative AI models at the edge
- Over 7.5x the AI compute of Jetson AGX Orin with 3.5x better energy efficiency
- 14-core Arm Neoverse-V3AE CPU for low-latency, real-time multi-sensor applications
- 4x 25 GbE networking and extensive I/O for sensor fusion
- Third-generation Programmable Vision Accelerator, dual encoders and optical flow accelerator
- Integrated thermal transfer plate with heatpipe for thermal management
- Native FP8 and FP4 support through TensorRT
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- AI performance: 2070 TFLOPS (FP4, sparse)
- GPU: 2560-core NVIDIA Blackwell architecture with 96 fifth-gen Tensor Cores
- Multi-Instance GPU: MIG with 10 TPCs
- GPU max frequency: 1.575 GHz (MAXN), 1.386 GHz (120W mode)
- CUDA FP32 performance: 8.064 TFLOPS (MAXN), 7.096 TFLOPS (120W)
- CPU: 14-core Arm Neoverse-V3AE 64-bit, up to 2.6 GHz
- CPU cache: 64 KB I-Cache and 64 KB D-Cache per core, 1 MB L2 per core, 16 MB shared L3
- Vision accelerator: 1x PVA v3
- Memory: 128 GB 256-bit LPDDR5X, 273 GB/s
- Storage: NVMe through PCIe, SSD through USB 3.2
- Video encode: 2x NVENC
- Camera: up to 20 cameras via HSB, up to 6 cameras through 16 lanes MIPI CSI-2, up to 32 cameras using virtual channels
- Camera interfaces: C-PHY 2.1 (10.25 Gbps), D-PHY 2.1 (40 Gbps)
- PCIe: up to 8 lanes Gen5
- USB: up to 3x USB 3.2, 4x USB 2.0
- Networking: 4x 25 GbE
- Display: 4x shared HDMI 2.1, VESA DisplayPort 1.4a HBR2 with MST
- Other I/O: 5x I2S, 2x AHUB, 2x DMIC, 4x UART, 4x CAN, 3x SPI, 13x I2C, 6x PWM outputs
- Power modes: 70 W, 90 W, 120 W, MAXN
- Power: 40 W to 130 W (maximum total module power 130 W)
- Max operating temperature at TTP surface: 80 C
- Dimensions: 100 mm x 87 mm
- Connector: 699-pin board-to-board
FAQs
Q: What power does the Jetson AGX Thor T5000 draw?
A: Power is configurable between 40 W and 130 W. Preset power modes are 70 W, 90 W, 120 W and MAXN, with a maximum total module power of 130 W.
Q: What carrier board does this module work with?
A: It is supported by the Jetson AGX Thor Developer Kit carrier platform. For custom designs it connects to a carrier board through a 699-pin board-to-board connector.
Q: What storage can be connected to the module?
A: The module supports NVMe storage through PCIe and SSDs through USB 3.2.
Q: How does the T5000 differ from other Jetson Thor modules?
A: This T5000 variant provides 128 GB of LPDDR5X memory, 2070 FP4 TFLOPS (sparse) of AI performance and a 40 W to 130 W power range.
Q: How many cameras can it support?
A: It supports up to 20 cameras via HSB, up to 6 cameras through 16 lanes of MIPI CSI-2, and up to 32 cameras using virtual channels.
