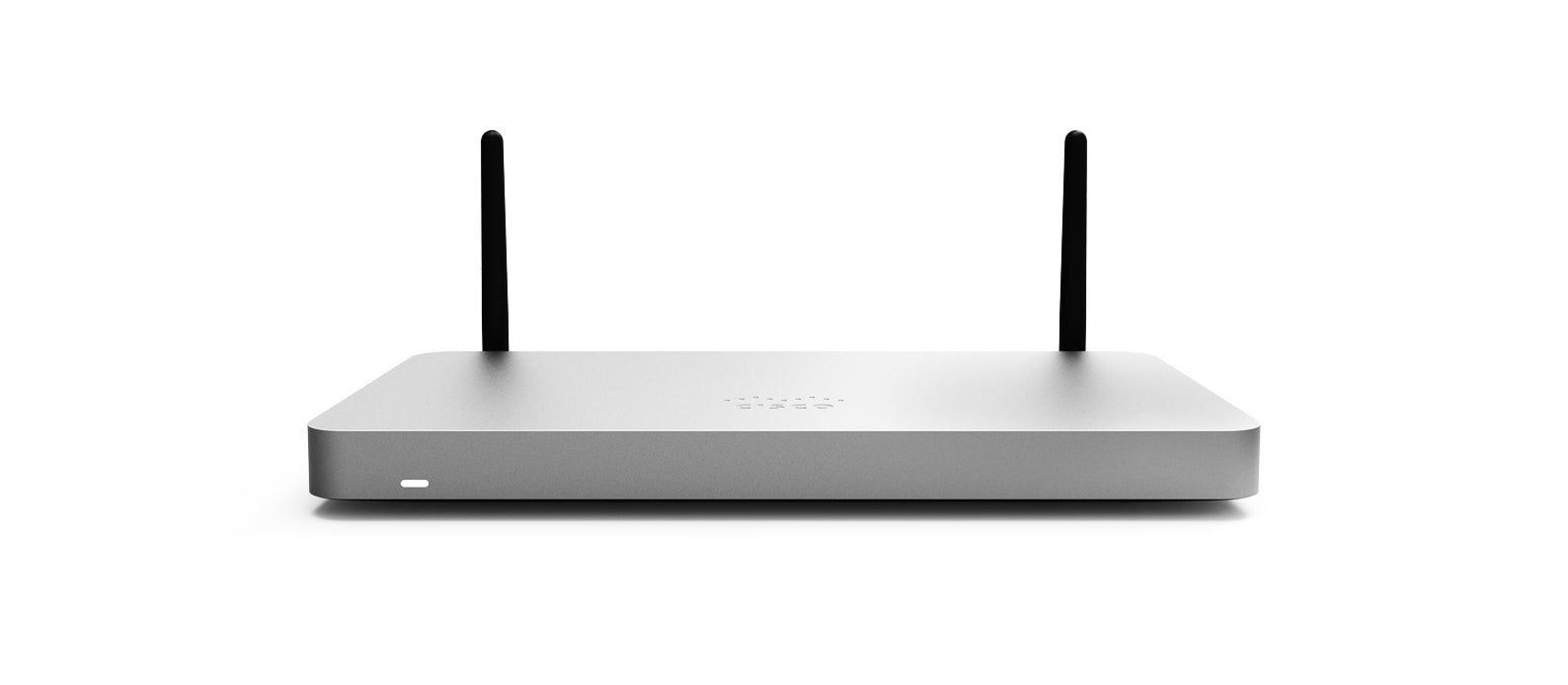

• Meraki MX68CW-HW-WW silver router with black antennas and LTE Wi-Fi 5
1 1

Meraki

Meraki MX68CW-HW-WW | MX68CW 10-Port Gigabit Security Appliance, LTE, Wi-Fi 5

MX68CW-HW-WW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MX68CW is a cloud-managed security and SD-WAN appliance for small branch offices of up to about 50 users. It combines a next-generation firewall, an integrated Cat 6 LTE modem and dual-band 802.11ac Wave 2 Wi-Fi in a single desktop or wall-mount unit, which suits pop-up and remote sites where cellular WAN or failover is needed.

The MX68CW provides 2 x GbE WAN ports and 10 x GbE LAN ports, with 2 of the LAN ports supplying PoE+ (802.3at) at 60 W in total for an access point, phone or camera. The LTE modem is Cat 6 at 300 Mbps with a nano SIM (4FF) slot, and a USB port supports approved 3G/4G modems for cellular failover. The wireless radios are 2x2 MU-MIMO with two spatial streams and a 1.3 Gbps maximum aggregate data rate. Firewall throughput is 700 Mbps and the unit supports up to 50 site-to-site VPN tunnels.

This MX68CW-HW-WW is the worldwide-region hardware SKU and does not include a licence. A Meraki MX68CW licence (Enterprise or Advanced Security) is required to operate the unit and manage it in the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- SD-WAN with dual active VPN, policy-based routing and dynamic path selection
- Layer 7 application optimisation over self-healing Auto VPN
- Integrated Cat 6 LTE modem with cellular visibility and configuration in the Meraki dashboard
- Native IPsec or Cisco AnyConnect remote client VPN support
- Built-in PoE+ ports power access points, phones and cameras
- Zero-touch cloud provisioning via the Meraki dashboard
- Integrated enterprise security and guest access with unified wired and wireless management
- IPS, AMP and content filtering with the Advanced Security licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Recommended use case: Small branch with up to 50 users
- WAN interfaces: 2 x GbE RJ45, 1 x USB (cellular failover), 1 x integrated Cat 6 LTE modem
- LAN interfaces: 10 x GbE RJ45
- PoE: 2 x 802.3at (PoE+) ports, 60 W total
- Cellular: 1 x Cat 6 300 Mbps LTE modem, 1 x nano SIM slot (4FF)
- Wireless: Dual-band 802.11n/ac Wave 2, 2x2 MU-MIMO, two spatial streams
- Wireless max data rate: 1.3 Gbps aggregate
- Antennas: 2 x external dual-band dipole antennas (RP-SMA connector)
- NGFW throughput: 700 Mbps
- Site-to-site VPN tunnels: up to 50
- Client VPN support: Yes
- Power supply: 30 W DC
- Power load (idle/max): 6 W / 17 W
- Weight: 0.85 kg (1.87 lb)
- Mounting: Desktop or wall mount
- Region: Worldwide (WW)

FAQs

Q: Does the MX68CW-HW-WW include a licence?
A: No. This is the hardware-only SKU. A Meraki MX68CW licence (Enterprise or Advanced Security) is required before it can operate and be managed in the Meraki dashboard.

Q: Which licence terms are available for the MX68CW?
A: The Enterprise licence is available as LIC-MX68CW-ENT-1Y and LIC-MX68CW-ENT-3Y, with longer 5 and 7 year terms also offered. Advanced Security adds IPS, AMP and content filtering.

Q: What SIM does the integrated LTE modem use?
A: The integrated Cat 6 LTE modem takes one nano SIM (4FF). The USB port also supports approved 3G/4G modems for cellular failover.

Q: How much PoE can the MX68CW supply?
A: Two LAN ports support PoE+ (802.3at) with 60 W available in total, enough to power devices such as an access point, IP phone or camera.

Q: How does the WW SKU differ from other MX68CW variants?
A: MX68CW-HW-WW is the worldwide-region hardware variant. The North America variant is sold separately as MX68CW-HW-NA.
