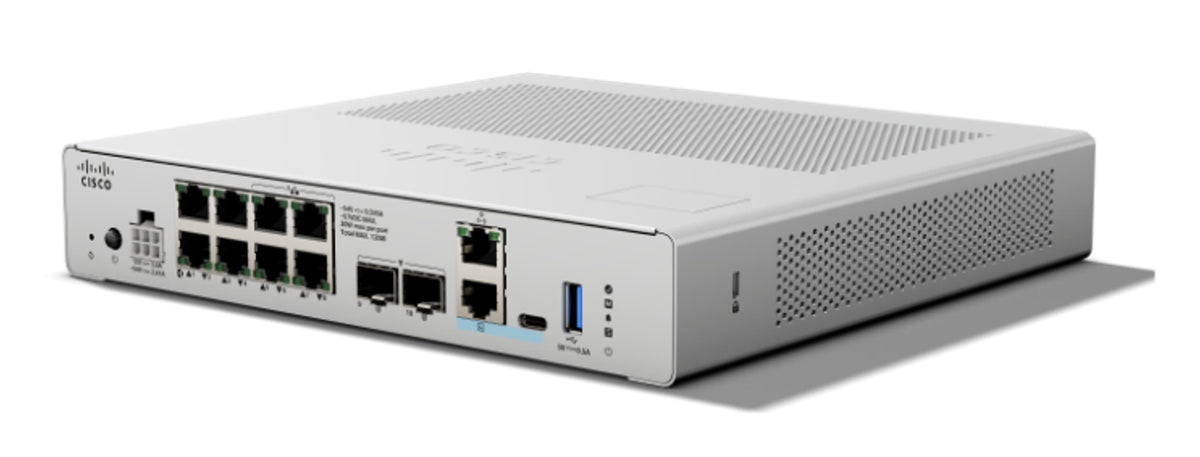

• White cisco csf240p-td-k9 secure firewall with multiple ethernet ports and perforated ventilation panel on the back side

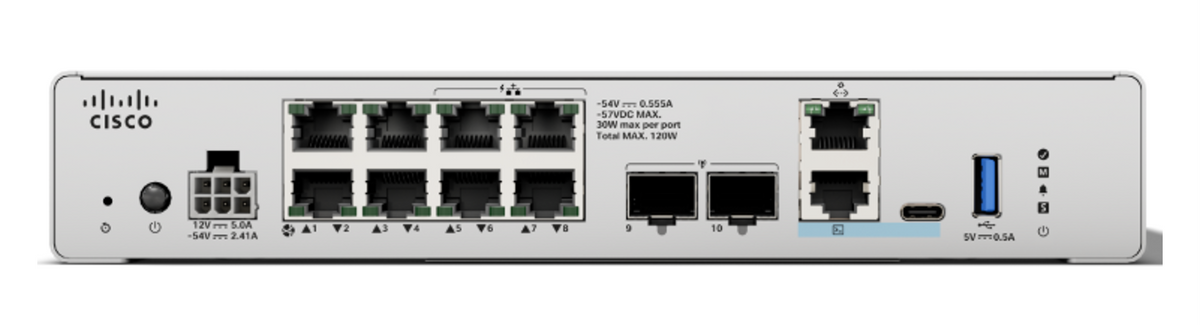

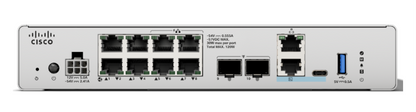

  • Back side of silver cisco csf240p-td-k9 secure firewall 240p 8-port poe plus switch with usb-c port and 120v 6a power input
1 2

Cisco

Cisco CSF240P-ASA-K9 | Secure Firewall 240P, 8-Port PoE+, ASA Software

CSF240P-ASA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Secure Firewall 240P is a compact, fanless desktop next-generation firewall from the Secure Firewall 200 Series, built for distributed enterprises and small branch offices that need cost-effective edge security, segmentation and VPN connectivity. This SKU runs Cisco ASA software and integrates PoE+ so compatible endpoints can be powered directly from the firewall.

It provides 8x 1000BASE-T ports, four of which deliver 802.3at PoE+ at up to 25.5W per port (120W total), plus 2x 1G SFP ports and a dedicated 1000BASE-T management port. With ASA software it delivers up to 4.5 Gbps of stateful inspection throughput (150B UDP) and 2 Gbps of IPsec VPN throughput, with up to 200K concurrent connections, 95K new connections per second and 75 VPN peers. Storage is 64GB and Active/Standby high availability is supported.

The unit is passively cooled and silent at 0 dBA. Rackmount and wall mount accessories are available, and 1G SFP transceivers are supported. Licences and subscriptions are ordered separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, silent desktop design suited to small branch locations, with optional rackmount and wall mount accessories
- Cisco ASA software delivering higher stateful inspection throughput than the Threat Defense image
- Active/Standby high availability for continuous uptime
- Integrated 802.3at PoE+ on four ports to power endpoints such as access points and cameras
- SoC-accelerated network and cryptographic operations
- Part of Cisco's Hybrid Mesh Firewall architecture with SD-WAN capabilities and Zero-Touch Provisioning
- Native integration with Cisco Umbrella, Cisco Secure Access and Cisco Secure Endpoint
- Manageable at scale via Security Cloud Control Firewall Manager

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Compact desktop
- Fixed ports: 8x 1000BASE-T, 2x 1G SFP
- Management port: 1x 1000BASE-T
- PoE: 4 ports IEEE 802.3at PoE+, up to 25.5W per port (120W total)
- Console port: USB Type-C and RJ-45
- USB port: USB 3 Type A
- Storage: 64GB
- ASA stateful inspection throughput (150B UDP): 4.5 Gbps
- ASA stateful inspection throughput (HTTP 1024B): 3.5 Gbps
- ASA IPsec VPN throughput (450B UDP L2L): 2 Gbps
- ASA new connections per second: 95K
- ASA concurrent connections: 200K
- Maximum VPN peers: 75
- High availability: Active/Standby
- Security contexts: Not supported
- Clustering: Not supported
- MTBF: 600,000 hours
- Dimensions (H x W x D): 4.1 x 23.3 x 21.5 cm
- Weight: 1.49 kg
- Cooling: Passive (fanless), 0 dBA
- Power supply: Single external AC 190W, 100-240V AC, 50-60Hz
- Power consumption: 19 W typical, 35.6 W maximum excluding PoE, 160.6 W maximum including PoE
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 85% non-condensing

FAQs

Q: Does the CSF240P-ASA-K9 include licences or subscriptions?
A: This SKU is the ASA software image appliance. Licences, subscriptions and other options are ordered separately, so refer to the Cisco Network Security Ordering Guide.

Q: How much PoE power does it provide?
A: Four of the eight 1000BASE-T ports provide 802.3at PoE+ at up to 25.5W per port, for 120W in total. It is powered by a single external 190W AC power supply.

Q: Which SFP transceivers does it work with?
A: It supports 1G SFP transceivers. The supported transceiver list is in the Cisco Secure Firewall 200 Hardware Installation Guide.

Q: How does it differ from the Threat Defense model?
A: This SKU runs ASA software, which delivers higher stateful inspection throughput. The companion Threat Defense model is CSF240P-TD-K9.

Q: Can it be rack or wall mounted?
A: Yes. It is a compact desktop unit, and rackmount and wall mount accessories are available.
