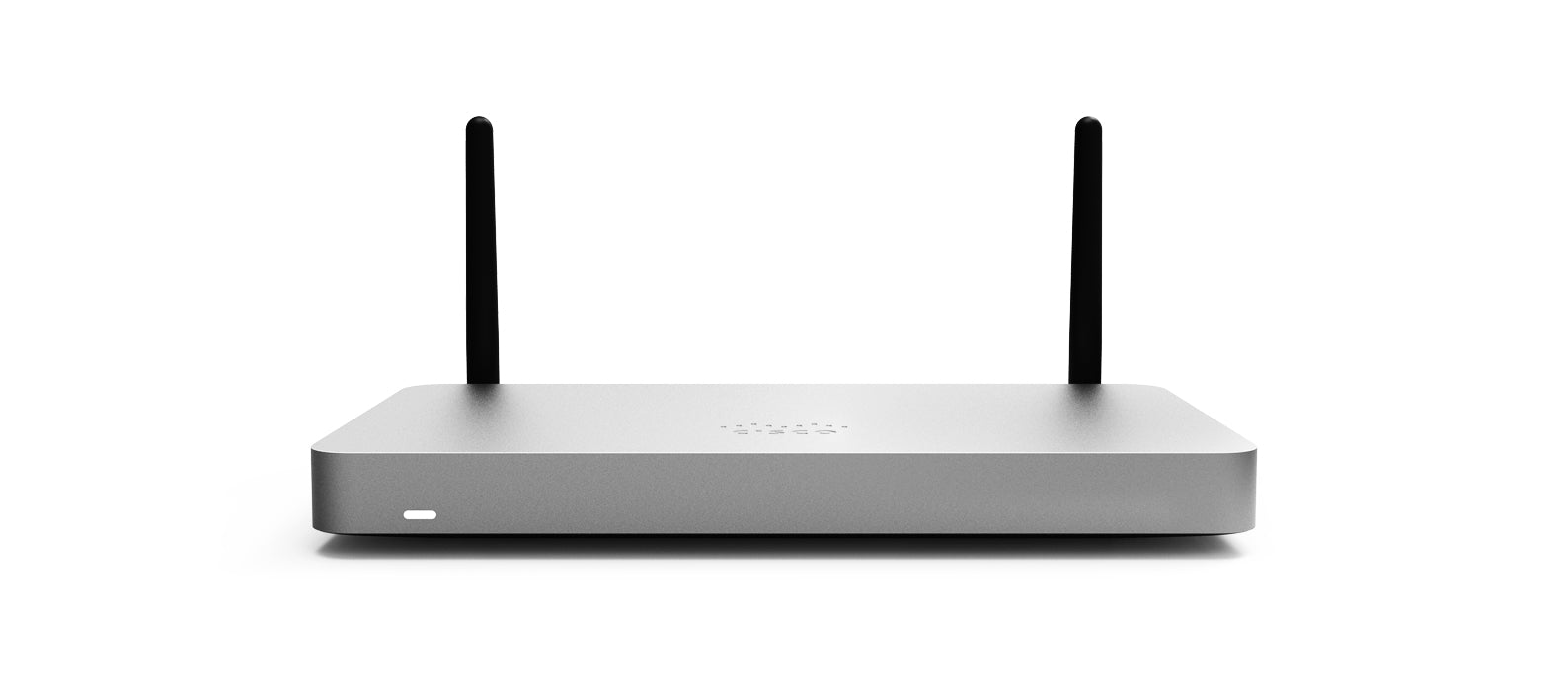

• Meraki MX67W-HW silver SD-WAN security appliance with Wi-Fi 5
1 1

Meraki

Meraki MX67W-HW | Meraki MX67W SD-WAN Firewall, Wi-Fi 5, 450 Mbps, USB Cellular Failover

MX67W-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MX67W-HW is a cloud-managed SD-WAN security appliance with integrated Wi-Fi 5 (802.11ac Wave 2) ideal for small branch offices and retail locations supporting up to 50 users. It delivers 450 Mbps firewall throughput and 200 Mbps VPN throughput, with 1x 1G WAN port, 4x 1G LAN ports, and USB cellular failover capability. Advanced security features include Layer 7 application firewall, intrusion detection and prevention, content filtering, and Advanced Malware Protection, all managed through the centralized Meraki cloud dashboard.

Features

Cloud-managed SD-WAN security appliance with 100% cloud-based configuration and monitoring
- Next-generation Layer 7 firewall with application-based traffic shaping and policy enforcement
- Integrated 802.11ac Wave 2 dual-band Wi-Fi with 2x2 MU-MIMO and up to 4 SSIDs
- Advanced threat protection: content filtering, intrusion detection/prevention (IDS/IPS), and Cisco AMP
- Auto VPN for intelligent site-to-site VPN connectivity and SD-WAN fabric integration
- Active-active VPN with load balancing and failover across multiple WAN connections
- Application prioritization and traffic shaping for business-critical applications
- USB cellular failover support for WAN redundancy (requires third-party USB modem)
- 2x PoE+ (802.3at) ports providing up to 60W total power for connected devices
- Zero-touch provisioning with automatic firmware updates and remote troubleshooting
- Unified dashboard management for security, SD-WAN, wireless, switching, and MDM
- SSL decryption and inspection for encrypted traffic analysis
- Comprehensive network visibility with Layer 7 application identification
- NAT, port forwarding, 1:1 NAT, and DHCP server capabilities
- Supports VLANs, static routing, and policy-based routing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Firewall Throughput: 450 Mbps stateful firewall
- VPN Throughput: 200 Mbps maximum site-to-site VPN
- Advanced Security Throughput: 300 Mbps
- WAN Interfaces: 1x 1GbE RJ45 dedicated WAN, 1x USB 2.0 for cellular failover (requires separate modem)
- LAN Interfaces: 4x 1GbE RJ45 fixed LAN ports, 1x configurable dual-purpose port (WAN or LAN)
- Wireless: Integrated 802.11ac Wave 2 dual-band (2.4 GHz / 5 GHz), 2x2 MU-MIMO, 2 spatial streams, up to 1.3 Gbps throughput
- SSIDs: Up to 4 SSIDs with enterprise security and guest access support
- Maximum Concurrent VPN Tunnels: 50
- Recommended Maximum Users: 50
- PoE: 2x 802.3at (PoE+) ports, total 60W budget
- Management: 100% cloud-managed via Meraki Dashboard (web or API), zero-touch provisioning
- Dimensions: 239mm x 164mm x 27mm (9.4" x 6.5" x 1.1")
- Weight: 0.783 kg (1.84 lb)
- Power: 30W DC external power supply, 15W idle / 23W max load
- Mounting: Desktop or wall mount

FAQs

Q: Does the MX67W-HW support cellular failover?
A: Yes, the MX67W-HW includes a USB 2.0 port that supports cellular failover using a separate third-party USB cellular modem. Unlike the MX67C model, it does not have an integrated LTE modem or SIM slot.

Q: What wireless capabilities does the MX67W-HW provide?
A: The MX67W-HW features integrated 802.11ac Wave 2 Wi-Fi with dual-band (2.4 GHz and 5 GHz) support, 2x2 MU-MIMO, and up to 1.3 Gbps wireless throughput. It supports up to 4 SSIDs for enterprise security and guest access.

Q: What license is required for advanced security features?
A: The MX67W-HW requires a Meraki license to operate. Advanced security features like content filtering, SNORT-based intrusion detection and prevention, and Cisco Advanced Malware Protection (AMP) require an Enterprise License or Advanced Security License subscription.

Q: How many devices can the MX67W-HW support?
A: The MX67W-HW is designed for small branch offices and can comfortably support up to 50 concurrent users or devices, making it ideal for retail branches, small offices, and clinic environments.

Q: Can the MX67W-HW power other network devices?
A: Yes, the MX67W-HW includes 2x 802.3at PoE+ ports with a total power budget of 60W, allowing you to power devices like IP phones, access points, or cameras without requiring separate PoE injectors or switches.
