Meraki

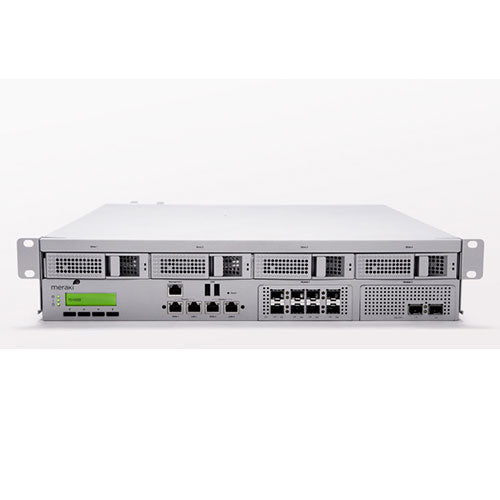

Meraki MX600-HW | MX600 Cloud-Managed 2U Security Appliance, 2 Gbps

MX600-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MX600 is a cloud-managed security and SD-WAN appliance in the Meraki MX Series. It is built for large campus and headquarters firewall roles, datacentre VPN concentrator deployments and large K-12 networks, supporting roughly 250 to 10,000 users. All configuration, monitoring and firmware upgrades are handled through the Meraki dashboard.

The MX600 delivers 2 Gbps of stateful firewall throughput and up to 650 Mbps of VPN throughput, with support for up to 5,000 VPN sessions. It has 4 x 1 Gigabit Ethernet RJ45 fixed ports and two swappable interface module bays, which accept the IM-8-CU-1GB (8 x 1GbE RJ45), IM-8-SFP-1GB (8 x 1GbE SFP) and IM-2-SFP-10GB (2 x 10GbE SFP+) modules. A 2U chassis houses dual 350 W hot-swappable AC power supplies and 4 x 1 TB of RAID storage providing a 4 TB cache for WAN optimisation and web caching.

The MX600-HW is the hardware-only SKU, so a Meraki MX600 licence (Enterprise or Advanced Security, term-based) is required to operate it and keep it under cloud management. Advanced Security adds intrusion prevention, Advanced Malware Protection and content filtering. A USB 2.0 port supports supported 3G/4G modems for cellular failover.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 7 application visibility and traffic shaping
- Stateful firewall with 1:1 NAT, DHCP, DMZ and static routing
- Auto VPN self-configuring site-to-site VPN and IPsec Client VPN
- Cisco SNORT-based intrusion prevention
- Content filtering using the Webroot BrightCloud URL database
- Advanced Malware Protection and AMP Threat Grid with the Advanced Security licence
- Multiple WAN uplinks with 4G failover and SD-WAN policy-based uplink selection
- Zero-touch cloud provisioning, automatic firmware upgrades and template-based multi-site management
- Redundant, field-replaceable power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: MX600-HW (hardware only, no licence)
- Stateful firewall throughput: 2 Gbps
- Maximum VPN throughput: 650 Mbps
- Recommended maximum users: approx. 10,000
- Maximum VPN sessions: 5,000
- Fixed network ports: 4 x 1 Gigabit Ethernet RJ45
- Expansion module slots: 2 swappable interface module bays
- Module options: IM-8-CU-1GB, IM-8-SFP-1GB, IM-2-SFP-10GB
- USB: 1 x USB 2.0 for 3G/4G failover (supported modems)
- Storage: 4 x 1 TB RAID, 4 TB WAN optimisation and web cache
- Power: dual 350 W hot-swappable AC power supplies, 100-220V 50/60Hz
- Form factor: 2U rack-mount
- Dimensions (H x W x D): 3.5 in x 22 in x 19 in
- Weight: approx. 24 kg (53 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5 to 95% non-condensing
- Management: cloud managed via Meraki dashboard
- Environmental certification: RoHS

FAQs

Q: Does the MX600-HW include a licence?
A: No. The MX600-HW is the hardware-only SKU. A Meraki MX600 licence (Enterprise or Advanced Security, term-based) is required to operate it and keep it under cloud management.

Q: What is the difference between the Enterprise and Advanced Security licences?
A: Advanced Security adds intrusion prevention, Advanced Malware Protection, AMP Threat Grid and content filtering on top of the Enterprise feature set.

Q: Which interface modules work with the MX600?
A: The two module bays accept the IM-8-CU-1GB (8 x 1GbE RJ45), IM-8-SFP-1GB (8 x 1GbE SFP) and IM-2-SFP-10GB (2 x 10GbE SFP+). These are the same modules used on the MX400.

Q: Does the MX600 support PoE?
A: No. The MX600 does not provide PoE. It is powered by dual 350 W AC power supplies, 100-220V at 50/60Hz.

Q: Can it fail over to a cellular connection?
A: Yes. The USB 2.0 port supports compatible 3G/4G modems for cellular failover, alongside multiple WAN uplinks with SD-WAN policy-based uplink selection.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
