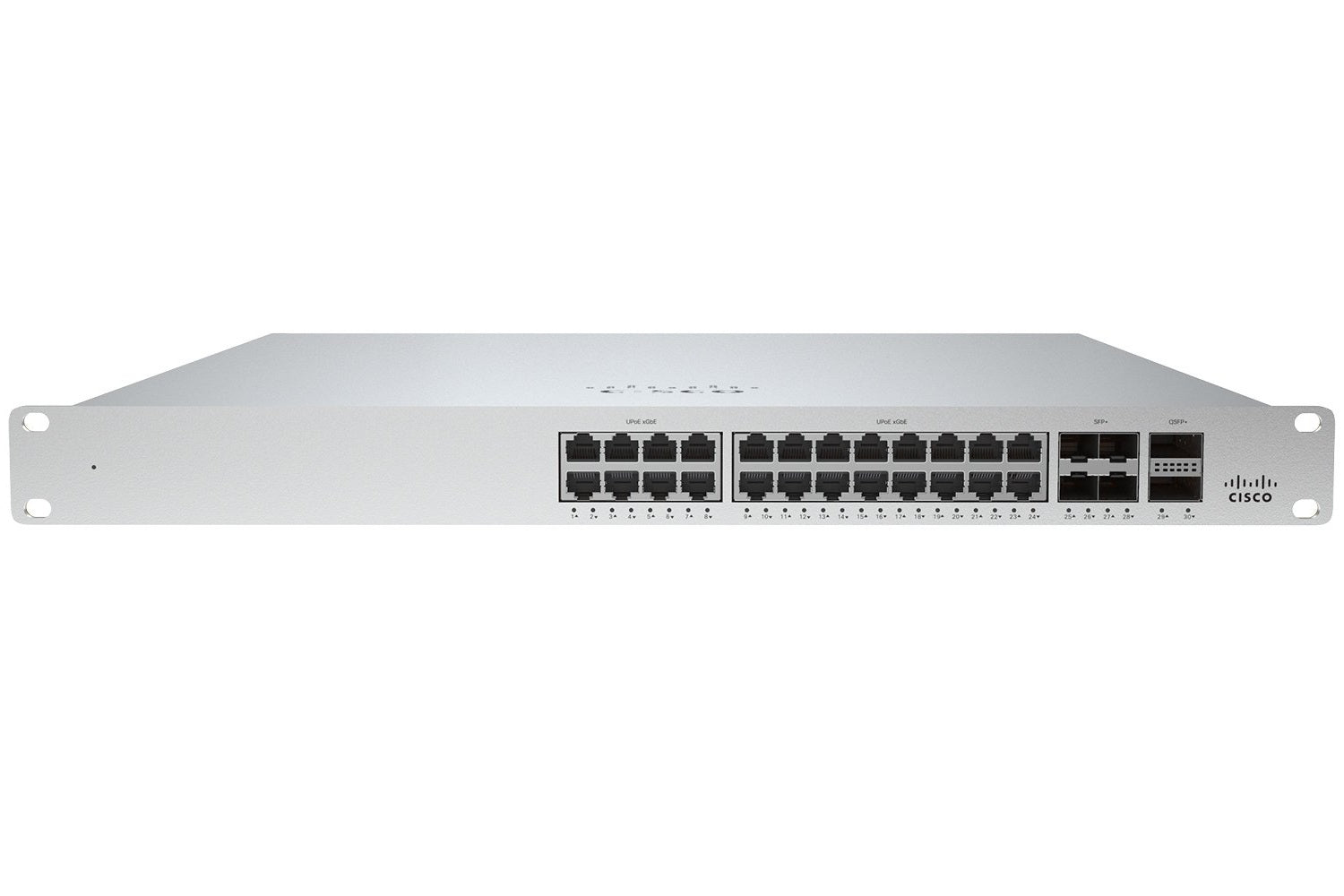

• Meraki MS355-24X2-HW silver switch with black ports and white logo
1 1

Meraki

Meraki MS355-24X2-HW | Meraki MS355 24-Port Multi-Gig PoE++ Switch, 740W, 4x 10G SFP+

MS355-24X2-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS355-24X2-HW is a cloud-managed Layer 3 multi-gigabit access switch designed for high-performance enterprise and campus environments. With 24 multi-rate ports supporting 100M/1G/2.5G/5G/10G speeds and up to 60W PoE++ per port, it is optimized for next-generation 802.11ax wireless access points, high-bandwidth workstations, and IP devices. The switch features 640 Gbps switching capacity, flexible 10G/40G uplink options, hardware stacking via dedicated 100G ports, and centralized management through the intuitive Meraki cloud dashboard.

Features

Cloud-managed Layer 3 switching with intuitive Meraki Dashboard interface
- Multi-gigabit Ethernet ports with auto-negotiation (100M/1G/2.5G/5G/10G)
- UPoE support with up to 60W per port for high-power devices
- Layer 3 static routing and OSPF dynamic routing protocols
- Hardware-based physical stacking with 400 Gbps stacking bandwidth
- Virtual stacking for centralized port configuration without physical stacking
- IEEE 802.1X authentication and Dynamic ARP Inspection (DAI)
- VLAN support (IEEE 802.1Q) with 802.1p QoS prioritization
- Link aggregation (IEEE 802.3ad LACP) for increased bandwidth and redundancy
- Spanning Tree Protocol (STP/RSTP) with Root Guard and Loop Guard
- DHCP server, DHCP relay, and DHCP snooping
- Port mirroring and LLDP (IEEE 802.1ab) for network visibility
- Broadcast storm control and Uni-Directional Link Detection (UDLD)
- Role-Based Access Control (RBAC) for granular administrator permissions
- Remote packet capture and cable integrity testing via dashboard
- Automatic firmware updates and zero-touch provisioning
- Hot-swappable redundant power supply and fan modules for high availability
- Email, SMS, and push notifications for network events and alerts

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

24x multi-rate RJ45 ports (100M/1G/2.5G/5G/10G auto-negotiating)
- 4x 10G SFP+ uplink ports (or 2x 40G QSFP+ configurable uplinks)
- 2x 100G QSFP28 dedicated stacking ports (400 Gbps stacking bandwidth)
- PoE budget: 740W (PoE+/UPoE, up to 60W per port)
- Switching capacity: 640 Gbps
- Forwarding rate: 476 Mpps
- MAC address table: 32,000 entries
- Layer 3 routing with static routing and OSPF support
- Management: Cloud-managed via Meraki Dashboard
- Power supply: 1x MA-PWR-1025WAC included, hot-swappable dual PSU support
- 3x pre-installed hot-swappable fans
- Idle/full power consumption: 147W / 1793W
- Dimensions: 1.72" x 19.08" x 20.34" (4.37 x 48.46 x 51.66 cm)
- Weight: 12.30 lb (5.58 kg)
- Form factor: 1U rack-mountable (19-inch)

FAQs

Q: What is the difference between the MS355-24X2 and MS355-24X models?
A: The MS355-24X2 features 24 full multi-gigabit ports capable of 10G speeds on all ports, while the MS355-24X has 8 multi-gig ports (100M/1G/2.5G/5G/10G) and 16 standard gigabit ports. Both offer the same PoE budget, uplink options, and stacking capabilities.

Q: Can I use both 10G SFP+ and 40G QSFP+ uplinks simultaneously?
A: No, the uplink configuration is either 4x 10G SFP+ or 2x 40G QSFP+. The uplink ports are shared, so you choose one configuration based on your aggregation layer requirements.

Q: Does this switch require a Meraki license to operate?
A: Yes, the MS355-24X2-HW requires a valid Meraki Enterprise license subscription for operation. The license enables cloud management, Layer 3 routing features, and advanced security capabilities through the Meraki Dashboard.

Q: How many switches can be stacked together?
A: Meraki MS355 switches support physical stacking using the dedicated 100G QSFP28 stacking ports. Up to 8 switches can be stacked together, providing a combined switching capacity and simplified management as a single logical unit.

Q: Is this switch suitable for powering Wi-Fi 6E access points?
A: Absolutely. The MS355-24X2 is specifically designed for next-generation wireless deployments, with multi-gigabit ports that support the bandwidth requirements of Wi-Fi 6/6E APs and up to 60W PoE++ per port to power demanding access points and other high-power PoE devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
