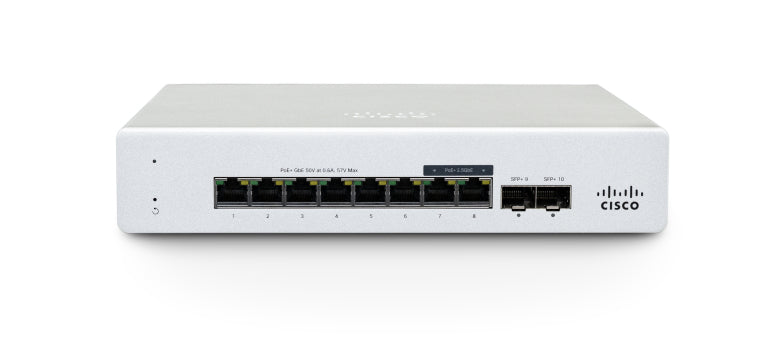

• Meraki MS130-8P-I-HW white 8-port PoE+ cloud-managed switch
1 1

Meraki

Meraki MS130-8P-I-HW | Meraki MS130 8-Port Gigabit PoE+ Switch, 120W, 2x 1G SFP

MS130-8P-I-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Description

The Meraki MS130-8P-I is a compact cloud-managed Layer 2 switch designed for branch offices, retail point-of-sale, and low-density Wi-Fi deployments. With 8 Gigabit Ethernet ports delivering 120W PoE+ and 2 SFP uplinks, it powers access points, IP phones, and cameras while offering zero-touch provisioning and fanless operation. This model features an integrated internal power supply, making it ideal for wall-mount or under-counter installations where space is limited.

Features

Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Layer 2 switching with VLAN support and QoS for voice and video
- 802.3at PoE+ on all 8 ports with dynamic power allocation
- Virtual stacking for unified management of thousands of ports
- Remote troubleshooting tools including cable testing and packet capture
- Network-wide visibility with per-port and per-client usage statistics
- Automatic firmware updates and seamless upgrades
- 802.1X authentication for network access control
- DHCP snooping and rogue DHCP server detection
- Layer 7 application visibility and traffic shaping
- Fanless operation for quiet deployment in offices and retail
- Compact form factor with integrated wall mount bracket
- Non-blocking 20 Gbps switching fabric
- Supports Cisco Meraki ecosystem integration with APs, firewalls, and cameras
- Persistent configuration stored in the cloud

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

8x 1 Gigabit Ethernet RJ45 ports with 802.3at PoE+ (30W per port)
- Total PoE budget: 120W
- 2x 1G SFP uplink ports
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: 14.88 Mpps
- Layer 2 switching with DHCP relay and DHCP snooping
- Fanless design for silent operation
- Internal power supply (54VDC)
- Power consumption: 8W idle, 128W max
- Operating temperature: 0°C to 45°C
- Dimensions: 2.8 x 22.2 x 15 cm (1.1 x 8.74 x 6 in.)
- Weight: 0.88 kg (1.94 lb.)
- Integrated wall mount bracket
- Cloud-managed via Meraki Dashboard
- Supports 802.1X authentication and virtual stacking

FAQs

Q: What is the difference between the MS130-8P and MS130-8P-I?
A: The MS130-8P-I includes an internal power supply, eliminating the need for an external power adapter. This makes it ideal for vertical installations like under-counter placement or wall mounting in tight spaces. Both models offer the same 8 Gigabit PoE+ ports and 120W PoE budget.

Q: Does this switch require a Meraki license to operate?
A: Yes, the MS130-8P-I requires a Meraki Enterprise or Advanced license for cloud management and operation. Licenses are available in 1, 3, 5, 7, and 10-year terms. The Advanced license adds features like Adaptive Policy on compatible models.

Q: What devices can I power with the 120W PoE budget?
A: The MS130-8P-I can power up to 8 PoE+ devices at 30W per port, including wireless access points, IP phones, IP cameras, and IoT sensors. The switch dynamically allocates power across all ports up to the 120W total budget.

Q: Can I use third-party SFP modules with this switch?
A: Meraki officially supports its own SFP modules including MA-SFP-1GB-SX, MA-SFP-1GB-LX10, and MA-SFP-1GB-TX transceivers. Using non-validated modules may result in compatibility issues or limited functionality.

Q: Is the MS130-8P-I suitable for outdoor deployments?
A: No, the MS130-8P-I is designed for indoor use with an operating temperature range of 0°C to 45°C. For ruggedized or industrial environments, consider the MS130R series which is built for harsher conditions.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
