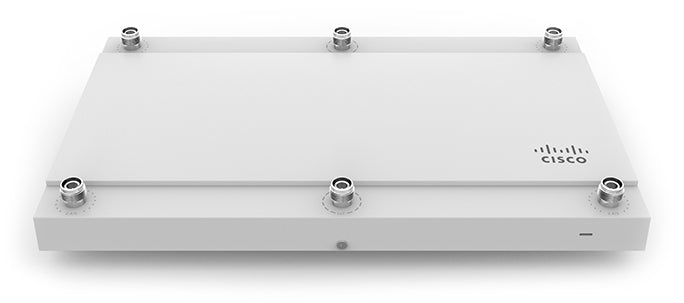

• Meraki MR53E-HW white Wi-Fi 5 access point with mounting holes
1 1

Meraki

Meraki MR53E-HW | Meraki MR53E Wi-Fi 5 Dual-Band Access Point, 4x4 MU-MIMO, 2.5 Gbps

MR53E-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MR53E is a cloud-managed Wi-Fi 5 access point designed for high-density enterprise deployments in offices, schools, hospitals, and warehouses. Featuring four radios including dedicated WIDS/WIPS and Bluetooth Low Energy, it delivers up to 2.5 Gbps aggregate throughput with external antenna connectors for flexible coverage. Managed entirely through the intuitive Meraki cloud dashboard, the MR53E provides enterprise-grade security, automated RF optimization, and zero-touch deployment without requiring costly certifications or on-site IT staff.

Features

802.11ac Wave 2 with 4x4:4 MU-MIMO for simultaneous multi-client connections
- Four integrated radios: dual-band client serving, dedicated WIDS/WIPS, and Bluetooth Low Energy
- External antenna connectors (6x RP-TNC) for flexible, targeted coverage in challenging RF environments
- Real-time wireless intrusion detection and prevention (WIDS/WIPS) without impact to client traffic
- Automated RF optimization with cloud-based channel and power tuning
- Bluetooth Low Energy (BLE) beacon for location analytics and wayfinding applications
- Transmit beamforming and enhanced receive sensitivity for higher client density support
- 2.5 Gbps Multigigabit Ethernet port to eliminate uplink bottlenecks
- AES hardware-based encryption and WPA2-Enterprise with 802.1X and Active Directory integration
- Layer 3-7 stateful firewall for advanced traffic control and security
- Wireless Multimedia (WMM), 802.1p, and DSCP QoS for application prioritization
- One-click guest isolation for secure Internet-only visitor access
- RADIUS authentication and network access control for granular user policies
- Automatic firmware updates delivered seamlessly via the Meraki cloud
- Self-provisioning and zero-touch deployment for remote site installations
- Integrated analytics, reporting, and anomaly detection across the network
- Energy-efficient design with intelligent power management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ac Wave 2 (Wi-Fi 5)
- Radio Configuration: 4x4:4 MIMO on both 2.4 GHz and 5 GHz bands
- Aggregate Throughput: Up to 2.5 Gbps (1733 Mbps on 5 GHz, 800 Mbps on 2.4 GHz)
- Channel Width: 80 MHz on 5 GHz (up to 160 MHz support), 40 MHz on 2.4 GHz
- MU-MIMO: Multi-User MIMO support for simultaneous client connections
- Radio Count: 4 integrated radios (2.4 GHz, 5 GHz, dedicated dual-band WIDS/WIPS, Bluetooth Low Energy)
- Antenna: 6x external RP-TNC antenna connectors for smart auto-detectable antennas
- Ethernet Ports: 1x Gigabit Ethernet, 1x 2.5 Gbps Multigigabit Ethernet
- Power: 802.3at PoE+ (compatible with 802.3af), optional AC adapter available
- Dimensions: 10.55 x 6.3 x 1.69 inches (268 x 160 x 43 mm)
- Mounting: Ceiling, wall, desktop, rail, and flush mount options
- Certifications: FCC, CE, Wi-Fi Alliance (WFA75884), EN 60601-1-2 medical compliance
- Management: Cloud-managed via Meraki Dashboard

FAQs

Q: What antennas are compatible with the MR53E?
A: The MR53E supports a range of Meraki smart antennas including dipole (MA-ANT-3-A6/B6), panel omni (MA-ANT-3-C6), downtilt panel (MA-ANT-3-D6), wide patch (MA-ANT-3-E6), and narrow patch (MA-ANT-3-F6) antennas. These antennas are auto-detectable and connect to the six RP-TNC ports on the access point. Third-party antennas may be used but regulatory compliance is the customer's responsibility.

Q: Does the MR53E require a separate controller?
A: No, the MR53E is cloud-managed through the Meraki Dashboard and does not require a separate hardware controller. All configuration, monitoring, and updates are handled through an intuitive browser-based interface, enabling rapid multi-site deployment without the need for specialized training or certifications.

Q: What is the dedicated third radio used for?
A: The MR53E features a dedicated dual-band scanning radio that provides 24x7 real-time wireless intrusion detection and prevention (WIDS/WIPS), automated RF optimization, and interference characterization. This ensures continuous wireless security and performance tuning without impacting client throughput or requiring manual configuration.

Q: Is a license required to operate the MR53E?
A: Yes, a Meraki Enterprise Cloud Controller license is required for the MR53E to function. Licenses are available in 1, 3, 5, 7, and 10-year terms and include cloud management, firmware updates, 24x7 support, and advanced features such as network access control, RADIUS authentication, and traffic shaping.

Q: What is the end-of-support date for the MR53E?
A: The MR53E reaches end of support on July 21, 2026. End of support means hardware and software issues will no longer be covered under warranty after this date, though dashboard connectivity continues. The recommended replacement model is the MR46E-HW.
