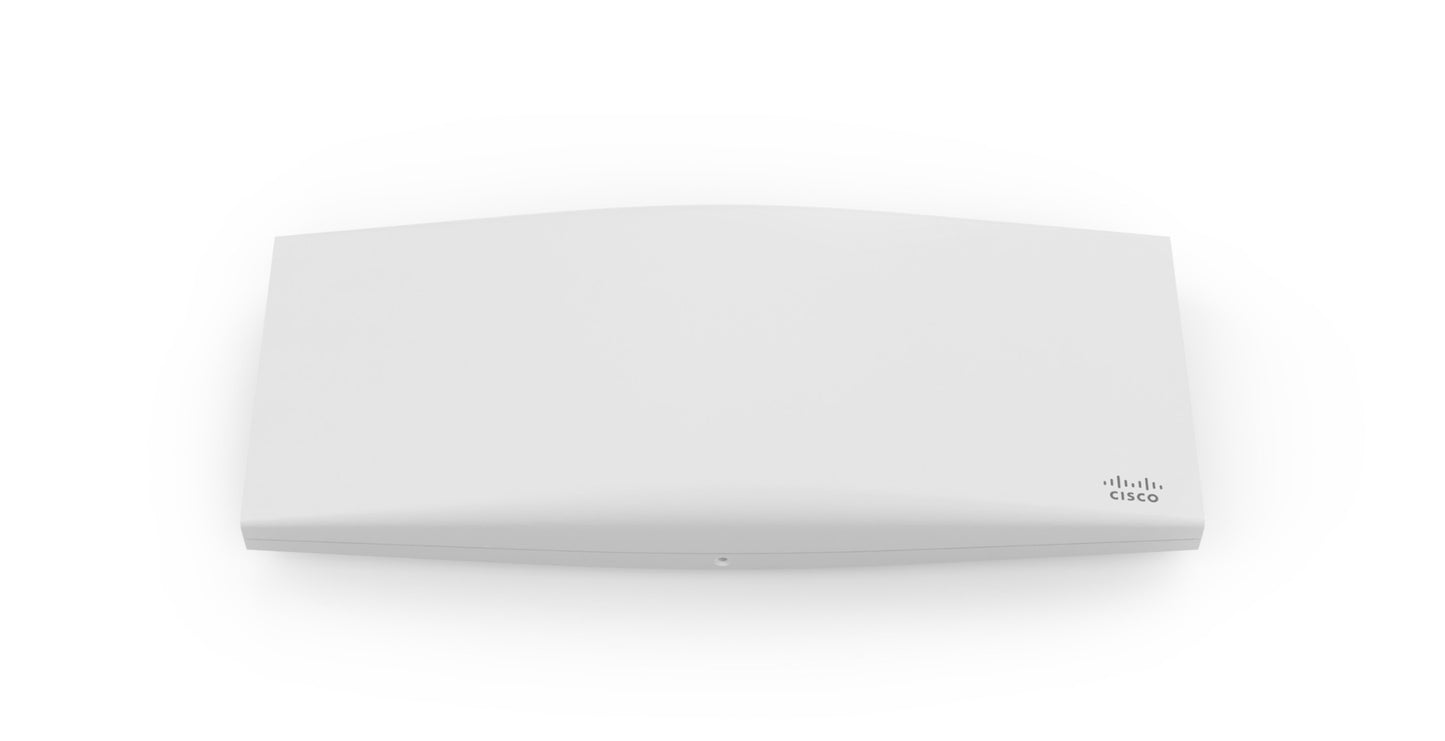

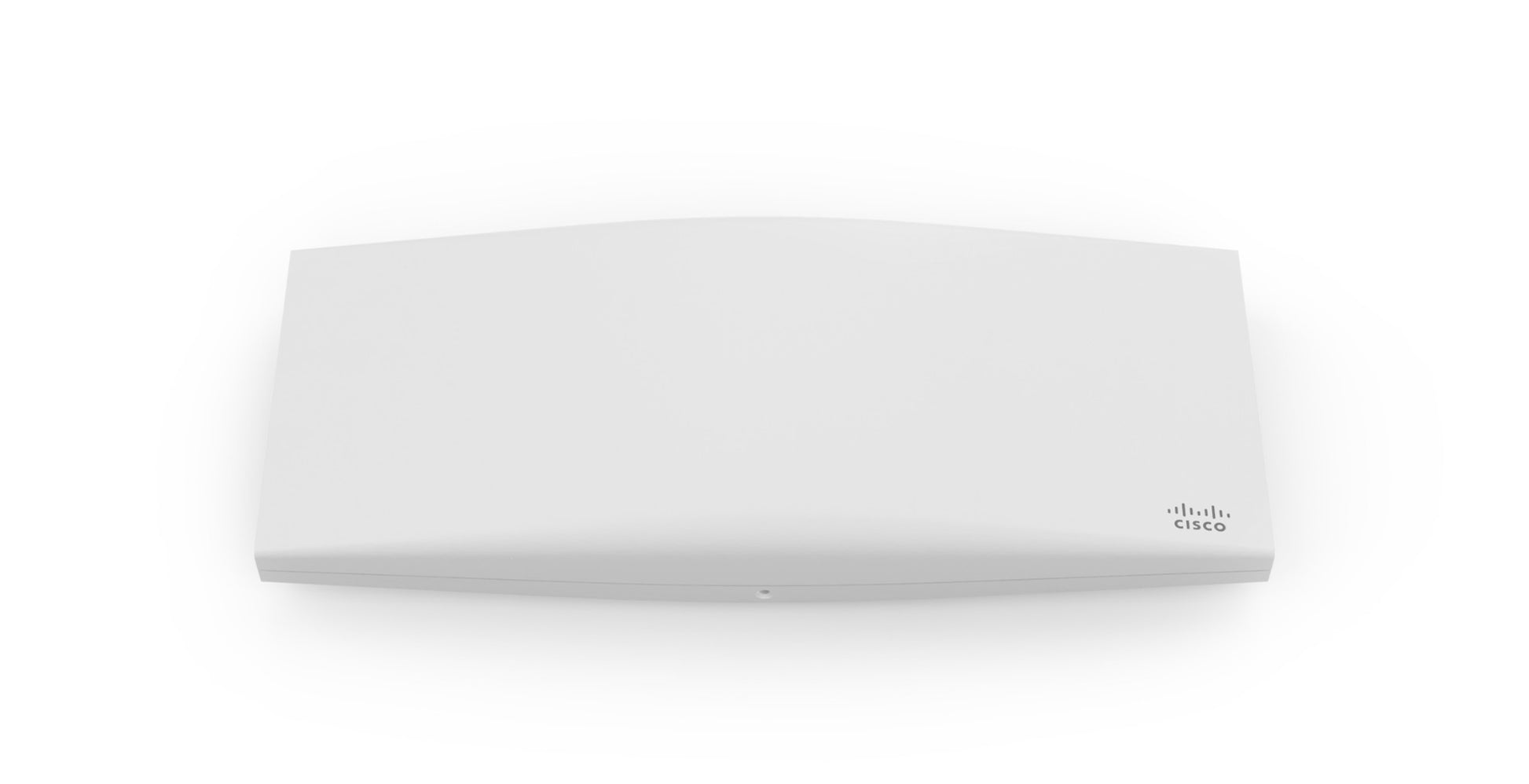

• White Cisco Meraki MR45-HW Wi-Fi 6 access point with curved edges
1 1

Meraki

Meraki MR45-HW | Meraki MR45 Wi-Fi 6 Dual-Band Indoor Access Point

MR45-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Meraki MR45 is a cloud-managed Wi-Fi 6 access point featuring 4x4:4 MU-MIMO technology and dual-band 2.4/5 GHz radios with a combined aggregate throughput of 3.5 Gbps. Designed for high-density enterprise environments including offices, schools, hospitals, and hotels, it includes a dedicated third radio for real-time WIDS/WIPS and automated RF optimization, plus an integrated Bluetooth Low Energy radio for IoT applications. Simple cloud-based management enables rapid deployment without on-site IT expertise.

Features

Wi-Fi 6 (802.11ax) with MU-MIMO and OFDMA for efficient multi-client transmission
- 4x4:4 dual-band radios with transmit beamforming for enhanced coverage and client density
- Dedicated security radio for real-time WIDS/WIPS and automated RF optimization
- Integrated Bluetooth Low Energy radio for IoT, location analytics, and beacon services
- Multigigabit Ethernet uplink (1G/2.5G) for maximum wireless throughput
- Cloud-managed with zero-touch provisioning and automatic firmware updates
- Layer 7 traffic shaping and QoS with application-aware policies
- Integrated guest access with customizable captive portals and social login
- RADIUS authentication with Active Directory and LDAP integration
- AES hardware encryption and WPA3 support for enterprise security
- Mesh networking capability for flexible deployment scenarios
- 802.11k/r/v for optimized client roaming and fast transitions
- Dynamic Frequency Selection (DFS) support for expanded 5 GHz channel availability
- Real-time network monitoring with 24/7 cloud-based alerts and diagnostics
- Kensington lock slot and security screw mount for physical security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6) compatible, backward compatible with 802.11a/b/g/n/ac
- Radio Configuration: 4x4:4 MIMO dual-band (2.4 GHz and 5 GHz), dedicated third radio for WIDS/WIPS and RF optimization, integrated BLE radio
- Maximum Data Rate: 3.5 Gbps aggregate frame rate (up to 2,402 Mbps at 5 GHz, 1,147 Mbps at 2.4 GHz)
- Ethernet Port: 1x Multigigabit Ethernet RJ45 (1G/2.5G)
- Power Requirements: 802.3at PoE+ (42.5-57V), does not support 802.3af low power mode
- Antennas: Internal omnidirectional (5.4 dBi at 2.4 GHz, 6 dBi at 5 GHz)
- Dimensions: 12.05 x 5.06 x 1.74 inches (30.6 x 12.84 x 4.426 cm)
- Management: Cloud-managed via Meraki Dashboard with automatic firmware updates
- Standards Compliance: 802.11a/b/e/g/h/i/k/n/r/u, Hotspot 2.0
- Security Features: AES hardware encryption, 802.1X authentication, Active Directory integration, integrated WIDS/WIPS
- Mounting Options: Ceiling or wall mount with included cradle, drop ceiling T-rail compatible, Kensington lock slot

FAQs

Q: Does the MR45-HW require a separate wireless controller?
A: No, the MR45 is cloud-managed through the Meraki Dashboard, eliminating the need for dedicated controller hardware. All management, configuration, and monitoring is performed through an intuitive web-based interface.

Q: What type of PoE is required for the MR45?
A: The MR45 requires 802.3at PoE+ power and does not support 802.3af low power mode. You can use a PoE+ switch, the Meraki MA-INJ-4 or MA-INJ-5 injector, or the MA-PWR-30W AC adapter (all sold separately).

Q: Is a Meraki license required to operate the MR45-HW?
A: Yes, a Meraki Enterprise license is required for operation. Licenses are available in 1, 3, 5, 7, and 10-year terms and include cloud management, firmware updates, 24/7 support, and lifetime hardware warranty with advance replacement.

Q: What is the purpose of the third and fourth radios in the MR45?
A: The dedicated third radio provides full-time WIDS/WIPS security scanning, spectrum analysis, and automated RF optimization without impacting client throughput. The fourth radio is a Bluetooth Low Energy radio for location services, asset tracking, and beacon applications.

Q: Can the MR45 support legacy Wi-Fi devices?
A: Yes, the MR45 is fully backward compatible with 802.11a/b/g/n/ac devices. Legacy clients will benefit from improved performance through features like transmit beamforming, enhanced receive sensitivity, and the 4x4 2.4 GHz radio configuration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
