Meraki

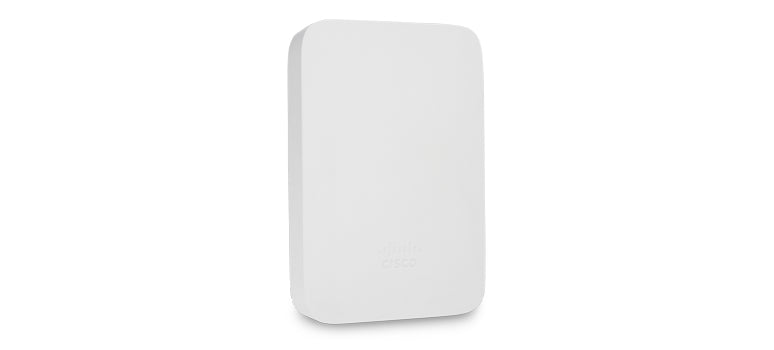

Meraki MR36H-HW | Wi‑Fi 6 (802.11ax), dual‑band 2.4/5 GHz, 2x2:2 OFDMA/MU‑MIMO, in‑wall with 4x GbE LAN (PoE‑out with 802.3at), 1x 1GbE uplink PoE (802.3af/at), security + BLE radios

SKU:MR36H-HW

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

In‑wall, hospitality‑focused Wi‑Fi 6 access point with integrated multi‑port Gigabit switch for room drops, supporting OFDMA/MU‑MIMO and simple cloud operations. Ideal for hotels, MDUs, and dorms requiring both wireless and wired ports per room.

Features

- In‑wall Wi‑Fi 6 AP with integrated 4‑port Gigabit switch
- OFDMA/MU‑MIMO for efficient high‑density performance
- Optional PoE‑out on one LAN port when powered via 802.3at
- Dedicated security/spectrum radio for continuous monitoring
- Cloud‑managed provisioning, policy, and analytics
- Ideal for hospitality, MDU, and dormitory deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does PoE‑out on a LAN port require 802.3at?
A: Yes. When powered with 802.3at, one LAN port can provide 802.3af PoE‑out. With 802.3af input, PoE‑out is not available.

Q: Is a cloud license mandatory?
A: Yes. An active Meraki MR license is required.

Q: Can this unit replace a room wall jack?
A: Yes, it installs on a wall plate to provide both Wi‑Fi and wired LAN ports.

Q: Is WPA3 supported?
A: Yes, WPA3 is supported along with WPA2‑Enterprise.

Q: Does it have internal antennas?
A: Yes, antennas are integrated for a clean in‑room appearance.

Technical Specifications

- Wi‑Fi standard: 802.11ax (Wi‑Fi 6)
- Radios: concurrent 2.4 GHz + 5 GHz client access
- MIMO: 2x2:2 with OFDMA and MU‑MIMO, BSS Coloring
- Dedicated scanning/security radio (WIDS/WIPS, auto‑RF)
- Bluetooth Low Energy (BLE) radio for location services
- Form factor: in‑wall/plate with integrated switch
- LAN switch: 4x 10/100/1000BASE‑T LAN ports (one supports PoE‑out when powered via 802.3at)
- Uplink: 1x 10/100/1000BASE‑T (RJ45) PoE‑in
- PoE input: 802.3af/at (802.3at recommended to enable PoE‑out on a LAN port)
- Security: WPA3/WPA2‑Enterprise, identity‑based policies, L7 firewall & shaping
- Management: cloud‑managed dashboard; zero‑touch provisioning
- Mounting: standard wall‑plate/box compatibility; indoor use
