Meraki

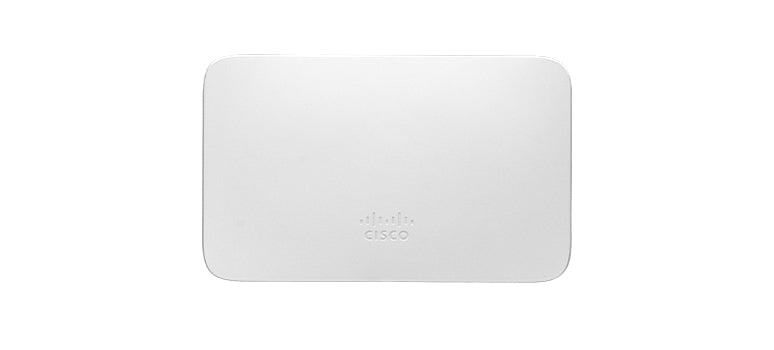

Meraki MR28-HW | Meraki MR28 Wi-Fi 6 Dual-Band Access Point, 1.5 Gbps

SKU:MR28-HW

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Meraki MR28 is a cloud-managed Wi-Fi 6 access point designed for small to medium-density business deployments. Featuring 2x2:2 MU-MIMO 802.11ax radios with up to 1.5 Gbps aggregate throughput, it delivers reliable dual-band wireless performance for offices, retail, hospitality, and education environments. The MR28 includes an integrated Bluetooth Low Energy radio for IoT applications and offers zero-touch provisioning with automatic cloud-based management, firmware updates, and enterprise-grade security.

Features

Wi-Fi 6 (802.11ax) with 2x2:2 MU-MIMO and OFDMA for efficient multi-client transmission
- Dual-band concurrent operation on 2.4 GHz and 5 GHz with up to 1.5 Gbps aggregate throughput
- Integrated Bluetooth Low Energy radio for IoT applications and BLE beacon functionality
- Cloud-managed zero-touch provisioning with automatic firmware updates and configuration
- Transmit beamforming and enhanced receive sensitivity for improved coverage and client density
- Application-aware Layer 7 traffic shaping and QoS for prioritizing business-critical applications
- WPA3, WPA2-Enterprise, 802.1X authentication with Active Directory integration
- Integrated WIDS/WIPS with Air Marshal for rogue AP detection and wireless intrusion prevention
- One-click guest isolation and captive portal with multiple authentication options
- PCI compliance reporting for secure retail deployments
- Real-time location analytics, visitor tracking, and foot-traffic insights
- Automated RF optimization with cloud-based channel selection and transmit power tuning
- Native integration with Meraki Systems Manager for device posture policies and MDM
- Industry-standard QoS: WMM, 802.1p, DSCP for voice and video optimization
- 24/7 cloud monitoring with real-time alerts and remote diagnostic tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
- Radio Configuration: Dual-band 2x2:2 MU-MIMO (2.4 GHz and 5 GHz) plus integrated Bluetooth LE radio
- Aggregate Throughput: Up to 1.5 Gbps (1201 Mbps @ 5 GHz, 287 Mbps @ 2.4 GHz)
- Ethernet Interface: 1x 10/100/1000 BASE-T RJ45 port
- Power: 802.3af PoE, 15W maximum consumption
- Channel Width: 20/40/80 MHz on 5 GHz, 20/40 MHz on 2.4 GHz
- Security: WPA3, WPA2-Enterprise with 802.1X, AES hardware encryption, integrated Layer 7 firewall, WIDS/WIPS with Air Marshal
- Management: Cloud-managed via Meraki Dashboard, browser-based interface
- Dimensions: 202 x 124 x 25.8 mm (7.95 x 4.88 x 1.02 in), excluding mount
- Weight: 272 g (9.6 oz)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Certifications: FCC Part 15C/15E, EN 300 328, EN 301 893, AS/NZS 4268, UL 2043 plenum rated
- Compatible Power Adapter: MA-PWR-30W-XX (sold separately if PoE not available)

FAQs

Q: Does the MR28 require a license to operate?
A: Yes, the MR28 requires a Cisco Meraki MR Enterprise or Advanced license for cloud management, technical support, firmware updates, and access to all features. Licenses are sold separately on a per-device, per-year basis in 1, 3, 5, 7, or 10-year terms.

Q: What deployment scenarios is the MR28 best suited for?
A: The MR28 is ideal for small to medium-density environments such as small offices, retail stores, cafes, training rooms, and branch locations. For high-density deployments like lecture halls or large open offices, consider higher-end models like the MR44 or MR46.

Q: Can the MR28 be powered without PoE?
A: Yes, if your switch does not support 802.3af PoE, you can use the compatible Cisco MA-PWR-30W power adapter. Note that only MA-PWR-30W-XX adapters (with region-specific suffixes AU, EU, CN, UK, US) are compatible with the MR28.

Q: How is the MR28 managed and configured?
A: The MR28 is managed entirely through the Meraki cloud dashboard via a web browser. When plugged in, it automatically connects to the Meraki cloud, downloads its configuration, and joins the network. No on-site IT staff or manual configuration is required.

Q: What security features does the MR28 include?
A: The MR28 offers enterprise-grade security including WPA3 and WPA2-Enterprise authentication, AES hardware encryption, 802.1X and Active Directory integration, integrated Layer 7 firewall, wireless intrusion detection and prevention with Air Marshal, guest isolation, and PCI compliance reporting.
