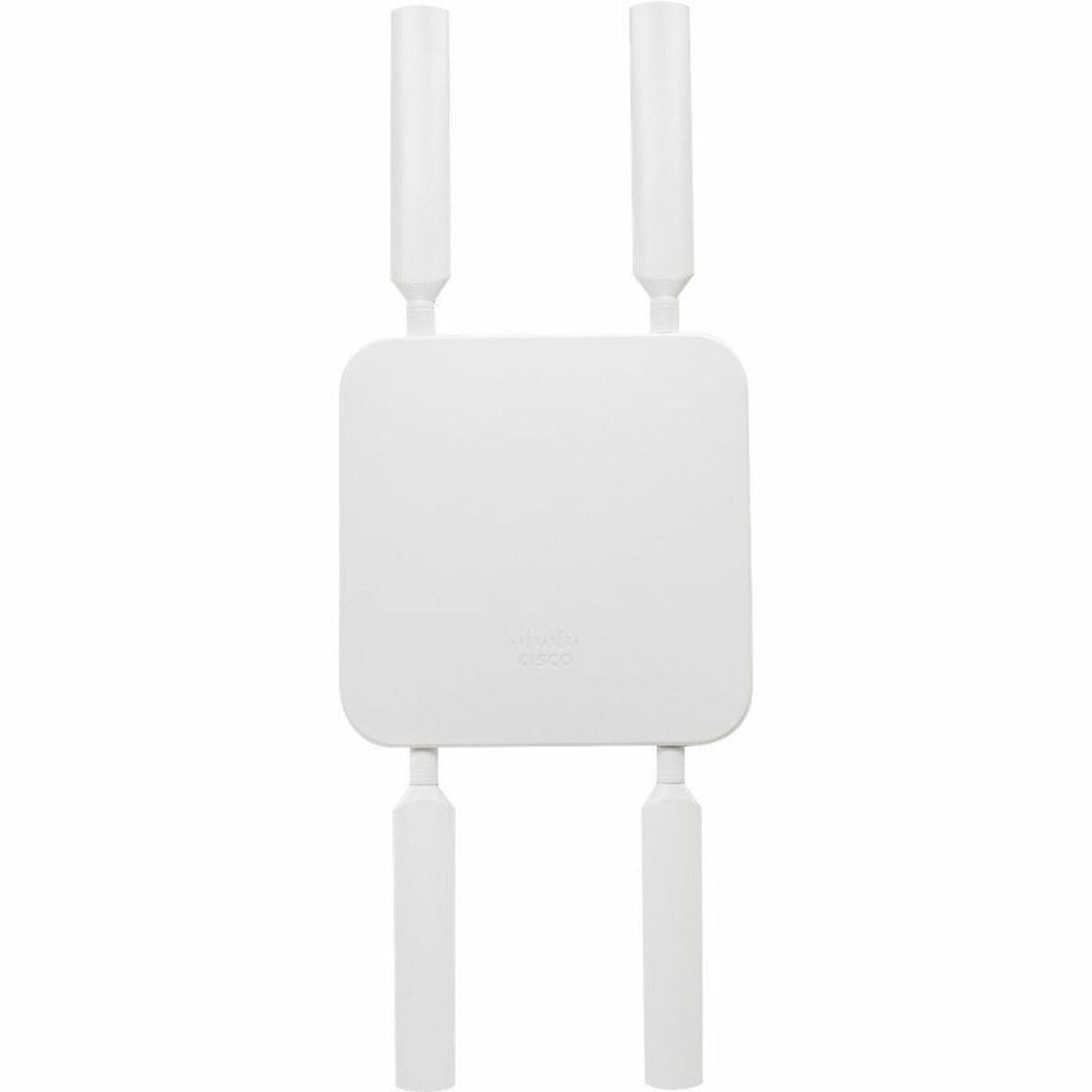

• Meraki MG52E-HW 5G NR router with four white antennas
1 1

Meraki

Meraki MG52E-HW | MG52E 5G Sub-6 Cellular Gateway, 4x External Antennas

MG52E-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MG52E is a cloud-managed 5G Standalone and Non-Standalone Sub-6 cellular gateway from the Meraki MG series, with LTE Cat20 fallback. It provides an external cellular uplink for Meraki or non-Meraki routers, firewalls and switches. It can be powered by PoE+, so it can be mounted where signal is strongest, away from the equipment it serves. This E model uses four external dipole antennas and weighs 717 g.

It offers 4x4 downlink MIMO with passthrough data rates up to 2 Gbps down and 300 Mbps up, or 1.5 Gbps down and 300 Mbps up in NAT mode. Two 2.5 GbE RJ45 ports are provided, one dedicated LAN and one convertible LAN/WAN. Connectivity comes from two nano (4FF) SIM slots plus a cloud-managed eSIM. Power is 802.3at PoE+ or DC input, with a 16 W maximum load. The IP67 rated housing operates from -40 to 50 C.

Use it as a primary WAN where wired service is unavailable, a failover WAN, or an uplink for Meraki SD-WAN VPNs. Its two LAN ports suit high-availability uplinks for MX pairs. It works with the official Meraki smart dipole antennas (MA-ANT-C2-B), and all four antennas must be connected to access every supported band.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki dashboard with self-configuration
- Dual nano-SIM slots plus a cloud-managed eSIM
- Two downstream Ethernet connections suited to HA uplinks for MX pairs
- Works with Meraki and non-Meraki security appliances, routers and switches
- Automatic firmware upgrades with scheduling control
- Remote diagnostics including ping, traceroute, cable testing and remote packet capture
- Email, SMS and mobile push alerts, with extensive API support
- Powered by PoE+ or a power adapter, with the adapter taking priority when both are connected

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular technology: 5G SA/NSA Sub-6 with LTE Cat20 fallback
- Antennas: 4 x external dipole, 4x4 downlink MIMO
- Maximum data rate, passthrough: 2 Gbps down / 300 Mbps up
- Maximum data rate, NAT: 1.5 Gbps down / 300 Mbps up
- LAN interfaces: 1 x dedicated 2.5 GbE RJ45
- Convertible interface: 1 x LAN/WAN 2.5 GbE RJ45
- SIM slots: 2 x nano (4FF)
- eSIM: 1, cloud-managed
- Power input: 802.3at PoE+ or DC (12V/1A, 48-57V DC/0.35A)
- Power load: 16 W maximum
- Dimensions (w x d x h): 173 x 173 x 36.5 mm
- Weight: 717 g
- Ingress protection: IP67
- Operating temperature: -40 to 50 C
- Humidity: 5% to 95% non-condensing
- Storage temperature: -30 to 70 C
- Certifications: PTCRB, RCM, GCF, IC, FCC
- MTBF at 25 C: 1,663,492 hours

FAQs

Q: Does the MG52E need a licence?
A: It is cloud-managed through the Meraki dashboard, and Meraki cellular gateways normally need a per-device Meraki licence. Enquire if you need to confirm the licence term for your deployment.

Q: How is the MG52E powered?
A: It runs from 802.3at PoE+ or a DC input (12V/1A or 48-57V DC/0.35A), with a 16 W maximum load. The MA-PWR-30W-XX power adapter and MA-INJ-4 802.3at PoE injector are separate items. The adapter takes priority when both power sources are connected.

Q: Which antennas does it work with?
A: Use the official Meraki smart dipole antennas (MA-ANT-C2-B). The reversed RP-SMA sockets detect official antennas, and all four must be connected to access every supported band.

Q: Can it be used with non-Meraki equipment?
A: Yes. It connects over Ethernet/IP to Meraki MX appliances as well as non-Meraki security, routing and switching devices.

Q: How does the MG52E differ from the MG52?
A: The MG52E has four external dipole antennas and weighs 717 g, so the gateway can be positioned away from the equipment it serves.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
