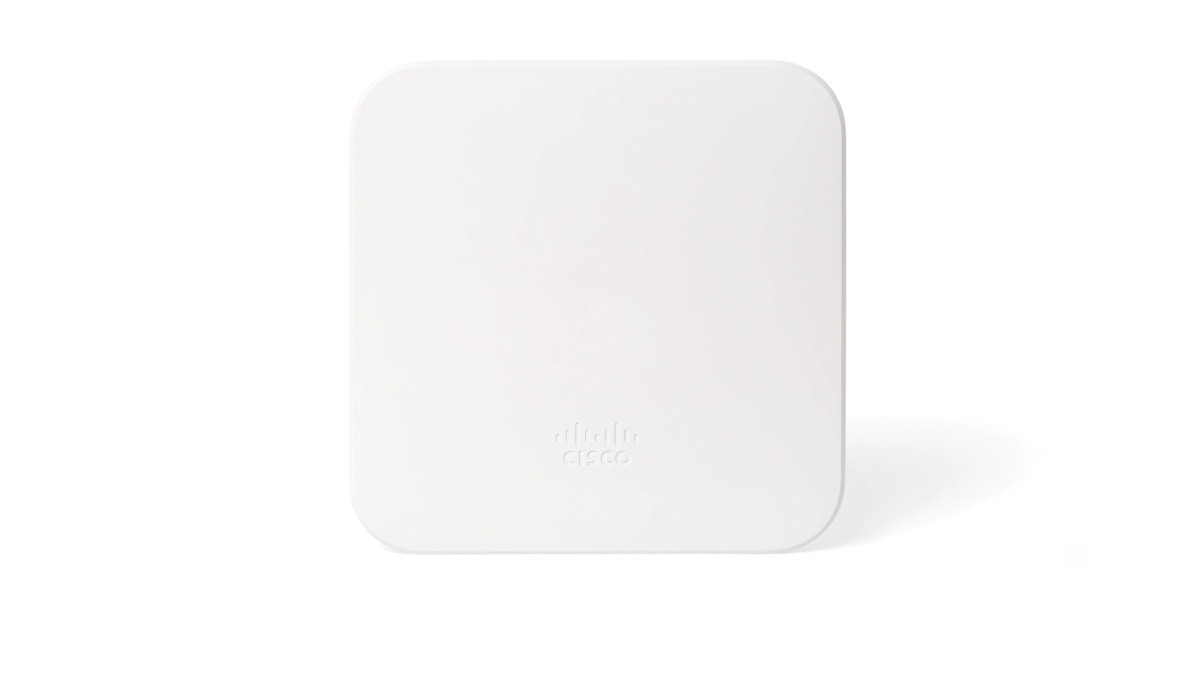

Meraki MG51-HW | MG51 5G Sub-6 Cellular Gateway, Internal Antennas
SKU:MG51-HW
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Meraki MG51 is a cloud-managed 5G Sub-6 GHz (NSA) cellular gateway with CAT20 LTE failover. It converts a carrier 5G or LTE signal into an Ethernet handoff, so it can serve as a primary WAN uplink or as failover for branch, remote and temporary sites, and for locations where wired circuits are unavailable. This MG51-HW model has internal antennas, in contrast to the MG51E-HW with external antennas.
It delivers up to 2 Gbps downlink and 300 Mbps uplink, with carrier aggregation of 7CA on the downlink and 2CA on the uplink. Dual SIM slots, one dedicated GbE RJ45 LAN port and one convertible LAN/WAN GbE RJ45 port are provided. Power comes from PoE+ (802.3at) or a DC input, with a 16 W maximum load. The IP67 rating and an operating range of -40 to 50 C allow flexible placement for the best signal quality.
The gateway works with any routing or switching device, Meraki or non-Meraki, and supports an optional Meraki patch antenna. It requires a Meraki MG cellular gateway licence to operate on the dashboard, which is purchased separately from the -HW SKU.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Built-in 5G Sub-6 GHz with CAT20 LTE failover
- Dual SIM support
- Supports 2 separate downstream router connections
- Small form factor with IP67 rating
- PoE+ or DC powered
- Optional Meraki patch antenna support
- Managed from the Cisco Meraki dashboard
- Self-configuring, with scheduled automatic firmware upgrades and extensive API support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: MG51
- Product category: 5G Sub 6GHz with CAT20 LTE failover
- 5G category: 5G NSA Sub 6GHz
- LTE category: CAT20
- Maximum wireless data rate (down/up): 2 Gbps / 300 Mbps
- Carrier aggregation: DL 7CA, UL 2CA
- Antennas: Internal
- SIM slots: 2
- Dedicated LAN interface: 1x GbE RJ45
- Convertible interface: 1x LAN/WAN GbE RJ45
- PoE: PoE+ (802.3at)
- Power supply: 12V/1A or 48-57V DC/0.35A
- Power load: 16 W maximum (PoE 802.3at)
- Dimensions (w x d x h): 173 x 173 x 36.5 mm
- Weight (without accessories): 560 g
- Operating temperature: -40 to 50 C (-40 to 122 F)
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP67
- MTBF at 25 C: 1,663,492 hours
- Certifications: PTCRB (US), RCM (ANZ, APAC), GCF (EU), IC (CA), FCC (US)
- Certified carriers: AT&T, T-Mobile, Verizon Wireless (US); Optus, Telstra (AU); One NZ, Spark (NZ)
- FirstNet: AT&T FirstNet Certified
FAQs
Q: Does the MG51-HW need a licence?
A: Yes. It requires a Meraki MG cellular gateway licence to operate on the dashboard. The -HW SKU does not include a licence term, so it is purchased separately.
Q: How is the MG51 powered?
A: It runs from PoE+ (802.3at) or a DC input of 12V/1A or 48-57V DC/0.35A. Maximum load is 16 W.
Q: Does it only work with Meraki routers?
A: No. It works with any routing or switching device, Meraki or non-Meraki, and it can also be used as a standalone failover uplink.
Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
Q: How does the MG51-HW differ from the MG51E-HW?
A: The MG51-HW has internal antennas. The MG51E-HW is the external-antenna model.
