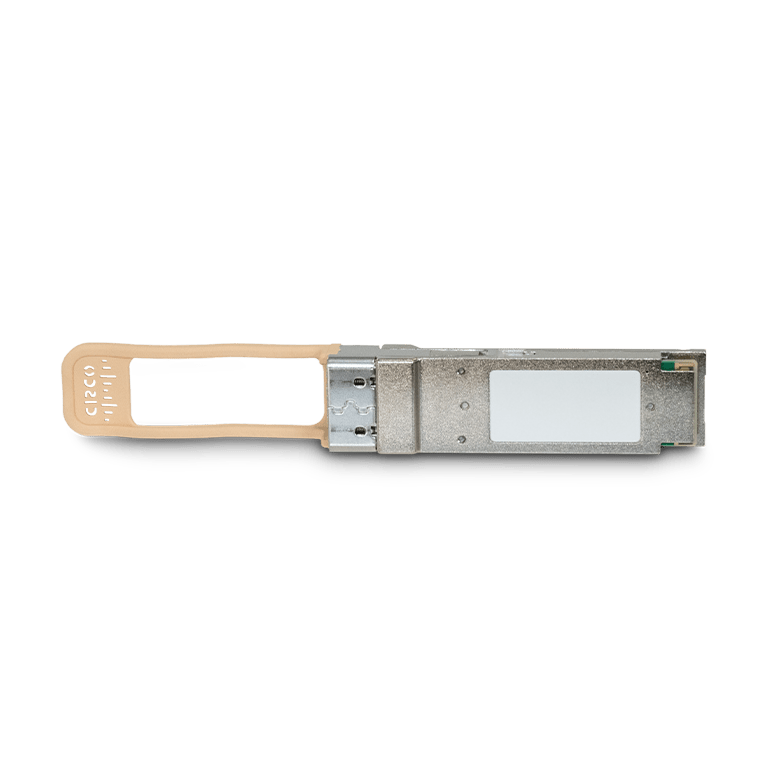

Meraki MA-QSFP-40G-CSR4 | 40G | QSFP+ | 40GBASE-CSR4 | 850nm | 300m OM3 / 400m OM4 | MPO-12

SKU:MA-QSFP-40G-CSR4

Stock Status: Enquire

Regular price $4,228.95 AUD
Regular price
$4,228.95 AUD
$4,228.95 AUD
Regular price
Sale Sold out
Taxes included. Shipping calculated at checkout.
Condition

Description

40G CSR4 optical transceiver for extended-reach multimode links. Operates at 850 nm over an MPO-12 interface, supporting up to 300 m on OM3 and 400 m on OM4—ideal for larger halls and aggregation runs in the data center.

Features

- Extended multimode reach without moving to single-mode
- MPO-12 interface for parallel optics performance
- Flexible deployment with optional 4×10G breakout
- DDM for simplified troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will CSR4 interoperate with SR4 optics?
A: Yes, CSR4 generally interoperates with SR4 within SR4 distance limits; for longer runs, use CSR4 at both ends.

Q: Can I break out one 40G port into 4×10G?
A: Yes, if the host switch supports 4×10G breakout and an appropriate MPO-to-4×LC harness is used.

Q: Do I need special polarity for MPO?
A: Use Type-B MPO trunks and ensure correct polarity for parallel optics.

Technical Specifications

- Data rate: 40 Gbps (4×10G)
- Form factor: QSFP+
- Optical standard: 40GBASE-CSR4 (extended reach)
- Wavelength: 850 nm
- Fiber type: Multimode (OM3/OM4)
- Connector: MPO-12 (MTP)
- Reach: Up to 300 m on OM3; up to 400 m on OM4
- Breakout support: 4×10G with host and cabling support
- Digital diagnostics (DDM): Supported
