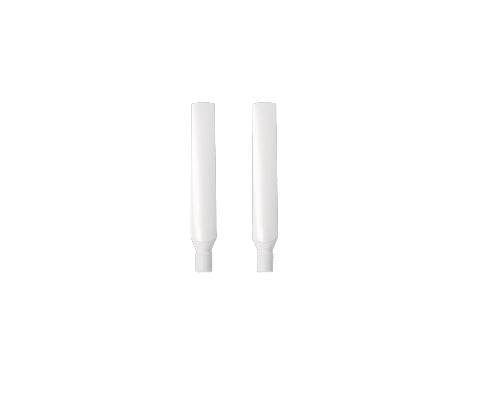

Meraki MA-ANT-C1-A | MG Dipole Antenna Pair, RP-SMA, 4.9 dBi, for MG21E

MA-ANT-C1-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a pair of omnidirectional cellular dipole antennas for the Meraki MG21E cellular gateway. They provide spherical coverage and attach directly to the gateway, so they suit indoor or flexible-placement installs where a directional patch antenna can't be mounted.

Each pair includes two antennas for the main and auxiliary connectors, with RP-SMA (female) connectors and a peak gain of 4.9 dBi. They cover sub-6 GHz FR1 cellular bands across 698-960 MHz, 1710-2170 MHz, 2300-2690 MHz and 5150-5850 MHz, with linear, vertical polarisation. Each antenna measures 129 x 19.5 x 12.3 mm and is rated for operation from -40 to +65 C.

The antennas are certified for use with the Meraki MG21E. As passive accessories they need no power and no licence of their own, although the host MG21E gateway requires a Meraki cloud licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Spherical coverage, compared with a directional patch antenna
- Lets the MG be placed where a directional patch antenna can't be mounted
- Attaches directly to the MG21E with no additional mounting hardware
- Covers sub-6 GHz FR1 cellular bands
- Sold as a pair, for the main and auxiliary connectors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole (omnidirectional)
- Quantity: 1 pair (2 antennas)
- Connector: RP-SMA (female)
- Frequency ranges: 698-960 MHz, 1710-2170 MHz, 2300-2690 MHz, 5150-5850 MHz
- Peak gain: 4.9 dBi
- Gain at 829 MHz: 2.6 dBi and 3.5 dBi
- Gain at 1940 MHz: 4.2 dBi and 2.7 dBi
- Gain at 2495 MHz: 3.0 dBi and 4.9 dBi
- Gain at 5500 MHz: 3.5 dBi and 2.9 dBi
- Polarisation: Linear, vertical
- Dimensions (L x W x H): 129 x 19.5 x 12.3 mm
- Radiator material: PCB
- Plastic material: PC
- Operating temperature: -40 to +65 C (-40 to 149 F)
- Storage temperature: -40 to +80 C (-40 to 176 F)
- Mounting: Attaches directly to the MG21E, no additional mounting hardware required

FAQs

Q: Which Meraki gateway does this antenna pair work with?
A: It is certified for use with the Meraki MG21E cellular gateway. No other certified models are listed.

Q: Does this antenna need a licence or power?
A: No. It is a passive antenna that draws no power and needs no licence. The host MG21E gateway requires a Meraki cloud licence.

Q: How is it different from a directional patch antenna?
A: This dipole pair is omnidirectional, giving spherical coverage. It lets the gateway sit where a directional patch antenna can't be mounted.

Q: How does it connect to the gateway?
A: The antennas use RP-SMA (female) connectors and attach directly to the MG21E, with no additional mounting hardware required.

Q: How many antennas are in one unit?
A: One unit is a pair of two antennas, covering the main and auxiliary connectors.
