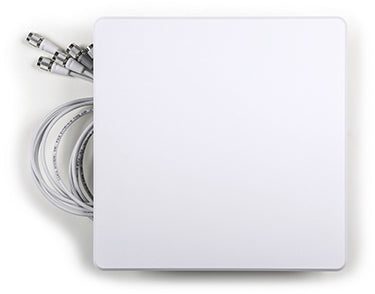

• Meraki MA-ANT-3-E6 indoor dual-band antenna with white square Magic Mouse
1 1

Meraki

Meraki MA-ANT-3-E6 | 6-Element Wide Patch Antenna, 7 dBi, MR46E/MR53E

MA-ANT-3-E6

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-3-E6 is an indoor dual-band wide patch antenna from the Meraki external antenna range. It is built for deployments that use Meraki external-antenna access points and need directional wide-patch coverage rather than the standard integrated antennas.

The antenna has six elements with RP-TNC connectors and covers both the 2.400-2.500 GHz and 5.150-5.875 GHz bands. Per-element gain is 7.0 dBi on 2.4 GHz and 6.3 dBi on 5 GHz. Polarization is linear +45 degrees, with a half-power beamwidth of 60 degrees horizontal and 60 degrees vertical. It is a passive antenna, so it needs no separate power supply and is fed by the host access point.

The MA-ANT-3-E6 is intended for use with the Meraki MR46E and MR53E access points. It is finished in white.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band coverage for 2.4 GHz and 5 GHz Wi-Fi
- Wide patch design for indoor directional coverage
- Six elements with RP-TNC connectors
- Designed for Meraki MR46E and MR53E external-antenna access points
- Passive design, powered via the host access point

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: MA-ANT-3-E6
- Antenna type: Wide patch
- Antenna elements: 6
- Connectors: 6x RP-TNC
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain per element, 2.4 GHz: 7.0 dBi
- Gain per element, 5 GHz: 6.3 dBi
- Polarization: Linear +45 degrees
- Half-power beamwidth, horizontal: 60 degrees
- Half-power beamwidth, vertical: 60 degrees
- Colour: White

FAQs

Q: Which access points does this antenna work with?
A: It is designed for the Meraki MR46E and MR53E external-antenna access points, which use RP-TNC antenna connectors.

Q: Does the antenna need its own power supply?
A: No. It is a passive antenna and is fed by the host access point, so no separate power is required.

Q: Does it cover both Wi-Fi bands?
A: Yes. It covers 2.400-2.500 GHz and 5.150-5.875 GHz, with 7.0 dBi gain per element on 2.4 GHz and 6.3 dBi on 5 GHz.

Q: Is this antenna suitable for outdoor use?
A: No. The MA-ANT-3-E6 is an indoor wide patch antenna intended for indoor deployments.
