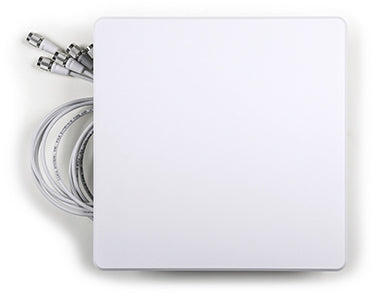

• Meraki MA-ANT-3-E5 dual-band indoor patch antenna with white Magic Mouse design
1 1

Meraki

Meraki MA-ANT-3-E5 | Wide Patch Antenna, 5-Port, 7 dBi, for MR42E

MA-ANT-3-E5

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-3-E5 is a dual-band wide patch antenna for indoor deployments, certified for use with the Meraki MR42E access point. It suits wall-mounted installs and low-density areas where appearance matters, such as vestibules with high ceilings and few clients, or lecture halls where the antenna sits close to users. It can also be wall or ceiling mounted below 25 ft in high-density areas.

The antenna covers the 2.4 GHz and 5 GHz bands (2.400-2.500 GHz and 5.150-5.875 GHz) with five RP-TNC connectors, one for each antenna element. Gain is 7 dBi at 2.4 GHz and 6.3 dBi at 5 GHz per element, with linear +/-45 degree polarisation and a 60 degree beamwidth in both the horizontal and vertical planes. The 5-port design is specific to the MR42E, while the 6-port MA-ANT-3-E6 is the variant for the MR53E.

This is a passive antenna with no power requirement and no licence of its own. The host MR42E access point needs a Meraki cloud licence. It is compatible with the MA-MNT-ANT-1 standard mounting arm and mounts to walls and poles.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 2.4 GHz and 5 GHz coverage from a single antenna
- Directional wide patch design suited to wall-mounted deployments
- Suited to aesthetic-sensitive installs in low-density areas
- Can be wall or ceiling mounted below 25 ft in high-density deployments
- Suited to vestibules with high ceilings and few clients, and lecture halls
- Mounts to walls and poles
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Wide Patch
- Connectors: 5 x RP-TNC
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain per element: 7 dBi (2.4 GHz) / 6.3 dBi (5 GHz)
- Polarisation: Linear, +/-45 degrees
- Half power beamwidth, horizontal: 60 degrees
- Half power beamwidth, vertical: 60 degrees
- Cables: RG316, 1 m
- Dimensions (W x D x H): 275 x 275 x 23.5 mm (10.83 x 10.83 x 0.93 in)
- Weight: 1.1 kg (38.8 oz)
- Material: PC-ABS
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5% - 93%
- Mounting: Walls and poles
- Compatible mounting arm: MA-MNT-ANT-1 (Standard Mounting Arm)
- Certified for use with: Meraki MR42E

FAQs

Q: Which access point does the MA-ANT-3-E5 work with?
A: It is certified for use with the Meraki MR42E only. The 6-port MA-ANT-3-E6 is the equivalent variant for the MR53E.

Q: Does this antenna need a licence?
A: No, the antenna itself needs no licence. The host MR42E access point requires a Meraki cloud licence.

Q: Does the antenna need power?
A: No. It is a passive antenna with no power requirement.

Q: What mounting arm is compatible?
A: The MA-MNT-ANT-1 standard mounting arm is compatible. The antenna mounts to walls and poles.

Q: Where is this antenna best deployed?
A: It suits wall-mounted indoor installs and low-density areas where appearance matters, such as vestibules with high ceilings and few clients, or lecture halls. It can also be wall or ceiling mounted below 25 ft in high-density areas.
